Sindoh M611 - Page 126

120

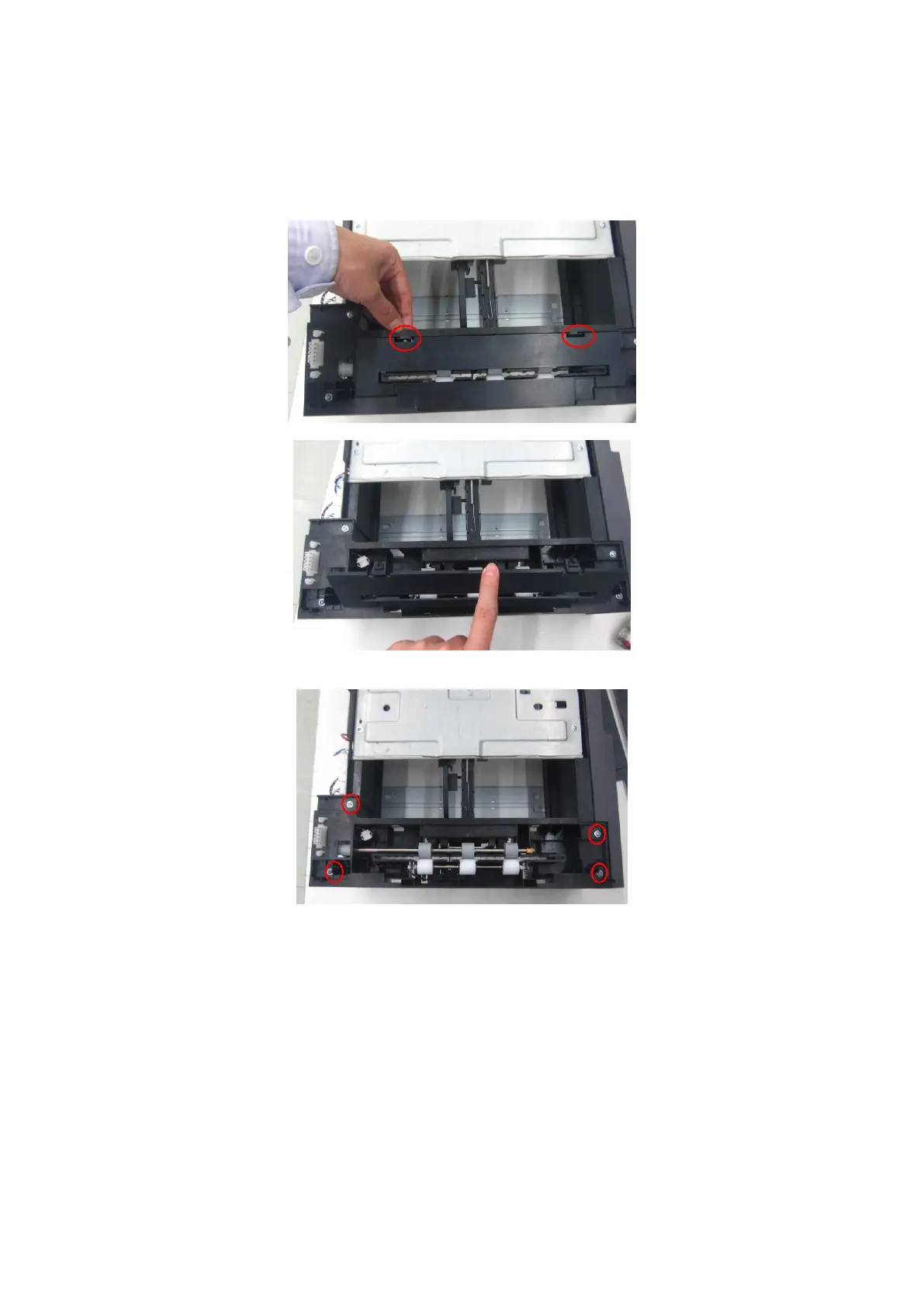

2. Remove the top cover after pressing the hooks at 2 locations on the cover.
3. Remove 4 screws[B], and then separate the transport unit.
4. Dis-assemble the harness at 2 locations and 2 screws on the separated transport unit,
and the remove the drive Assy.
