150

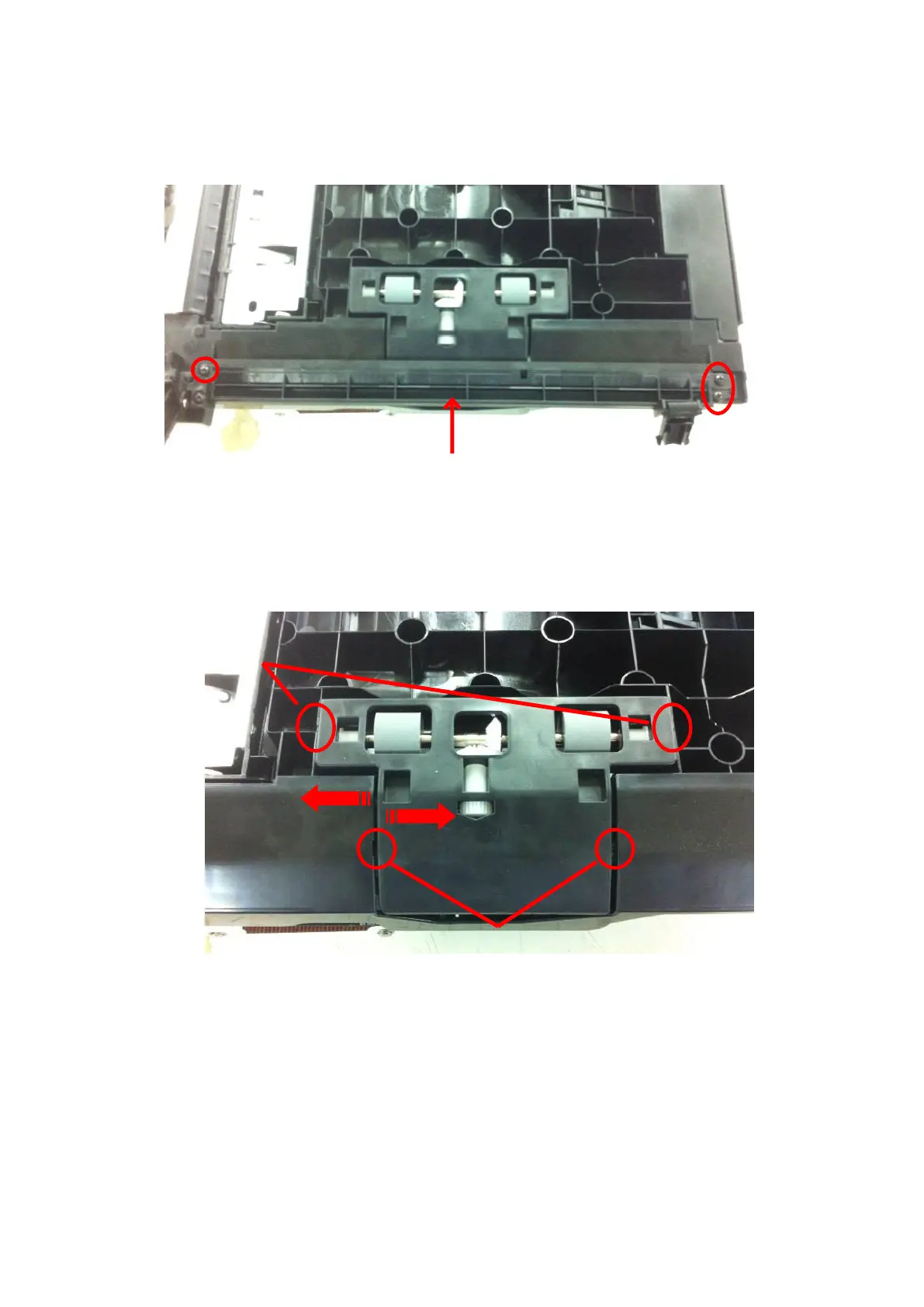

6. Remove 3 screws and the separate A3 LOWER GUIDE.
7. Separate 2 upper hooks, and then the lower Boss at 2 locations.
Separate A3 assembly from ADF frame by pushing the boss in the arroiw directions
from the left, and then separate A3 clutch harness.
8. Remove 2 screws and separate A3 clutch assembly.
To Next Page
