TORAffiEORLOWERTHEFEEDDOG
(see Fig. 33)
Usually when feed dog is at its highest
position, it should show a full tooth above
throat plate.
To adjust, remov e throat plate; clean
the lint and dust from be tween feed points
and replace throat plate; tip machine back
and turn machine pulley toward you until
feed dog is at its highest position; loosen
screw V in feed lifting cam fork and raise
or lower feed dog, as may be required.
Then re-tighten screw V.
v

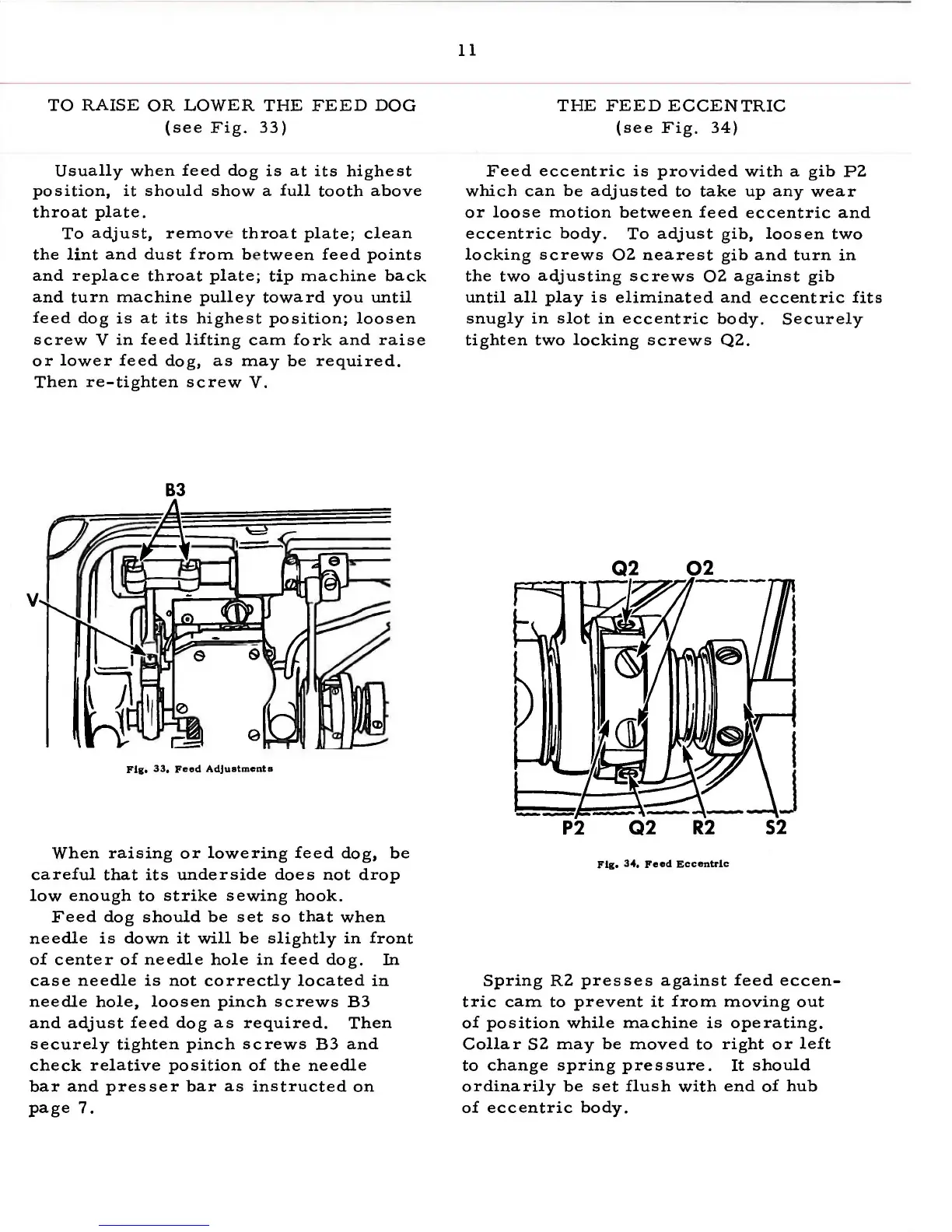

Fig, 33, Feed Adjustments
When raising or lowering feed dog, be
careful that its underside does not drop
low enough to strike sewing hook.
Feed dog should be set so that when
needle is down it will be slightly in front
of center of needle hole in feed dog. In
case needle is not correctly located in
needle hole, loosen pinch screws B3
and adjust feed dog as required. Then
securely tighten pinch screws B3 and
check relative position of the needle
bar and presser bar as instructed on
page 7.
11
THE FEED ECCENTRIC
(see Fig. 34)
Feed eccentric is provided with a gib P2
which can be adjusted to take up any wear
or loose motion between feed eccentric and
eccentric body. To adjust gib, loosen two
locking screws 02 nearest gib and turn in
the two adjusting screws 02 against gib
until all play is eliminated and eccentric fits
snugly in slot in eccentric body. Securely
tighten two locking screws Q2.
Fig, 34, Feed Eccentric
Spring R2 presses against feed eccen-
tric cam to prevent it from moving out
of position while machine is operating.
Collar S2 may be moved to right or left
to change spring pressure. It should
ordinarily be set flush with end of hub
of eccentric body.
