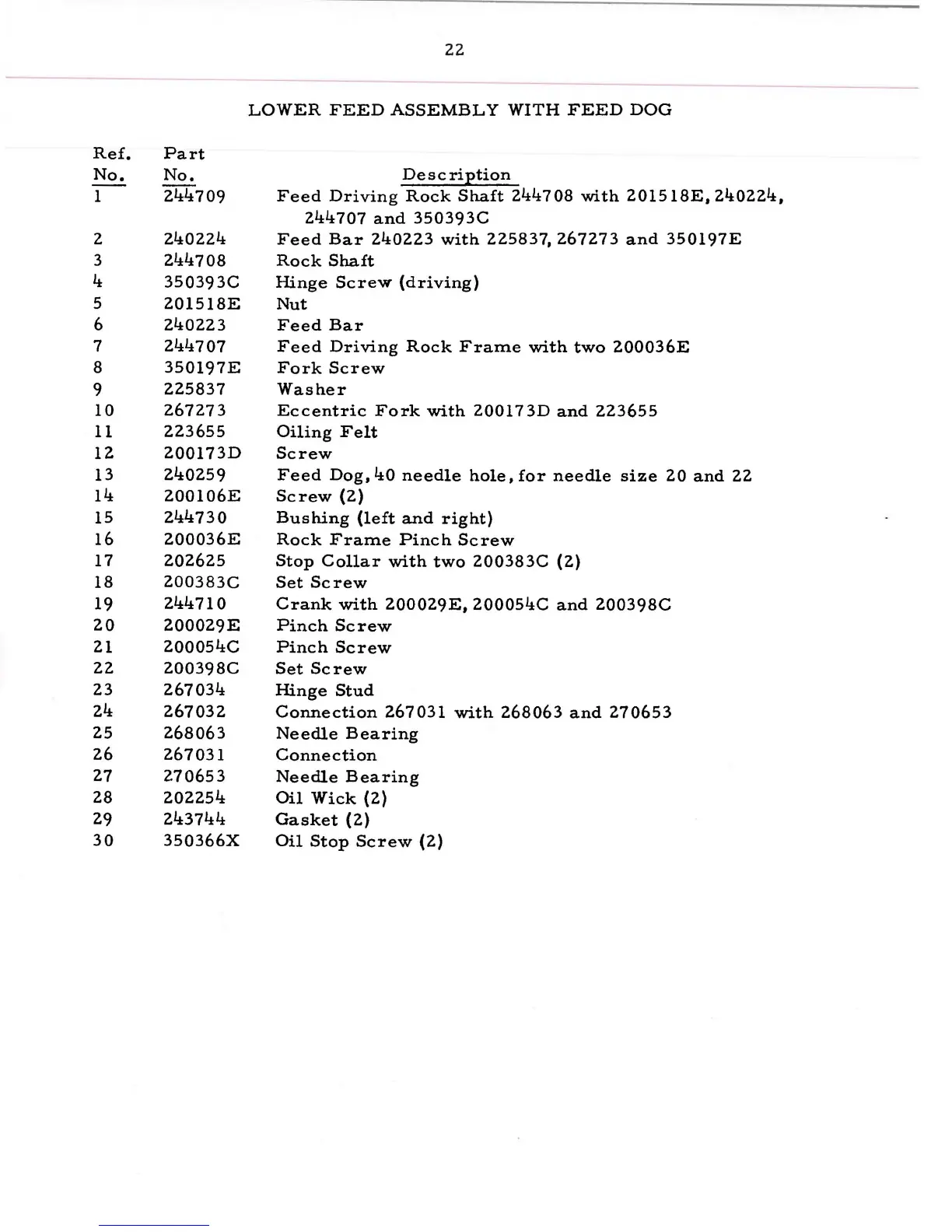

LOWER FEED ASSEMBLY WITH FEED DOG
Ref. Part
No.
No.
Description
1 244709
Feed Driving Rock Shaft 244708 with 201518E. 240224.
244707 and 350393C
2 240224
Feed Bar 240223 with 225837.267273 and 350197E
3
244708
Rock Shaft
4
350393C Hinge Screw (driving)
5
201518E
Nut
6 240223
Feed Bar
7 244707
Feed Driving Rock Frame with two 200036E
8
350197E
Fork Screw
9
225837
Washer
10 267273
Eccentric Fork with 20017 3D and 223655
11
223655
Oiling Felt
12 200173D Screw
13 240259
Feed Dog. 40 needle hole. for needle size 20 and 22
14 200106E Screw (2)
15 244730
Bushing {left and right)
16 200036E
Rock Frame Pinch Screw
17 202625
Stop Collar with two 200383C {2)
18
200383C
Set Screw
19
244710
Crank with 200029E. 200054C and 200398C
20
200029E Pinch Screw
21 200054C
Pinch Screw
22
200398C
Set Screw
23
267034
Hinge Stud
24
267032
Connection 267031 with 268063 and 270653
25
268063
Needle Bearing
26
267031
Connection
27
270653
Needle Bearing
28
202254
Oil Wick {2)
29
243744
Gasket {2)
30 350366X
Oil Stop Screw {2)
