Singer 211W151 - Bobbin Winding and Replacement; Winding the Bobbin

OIL
5

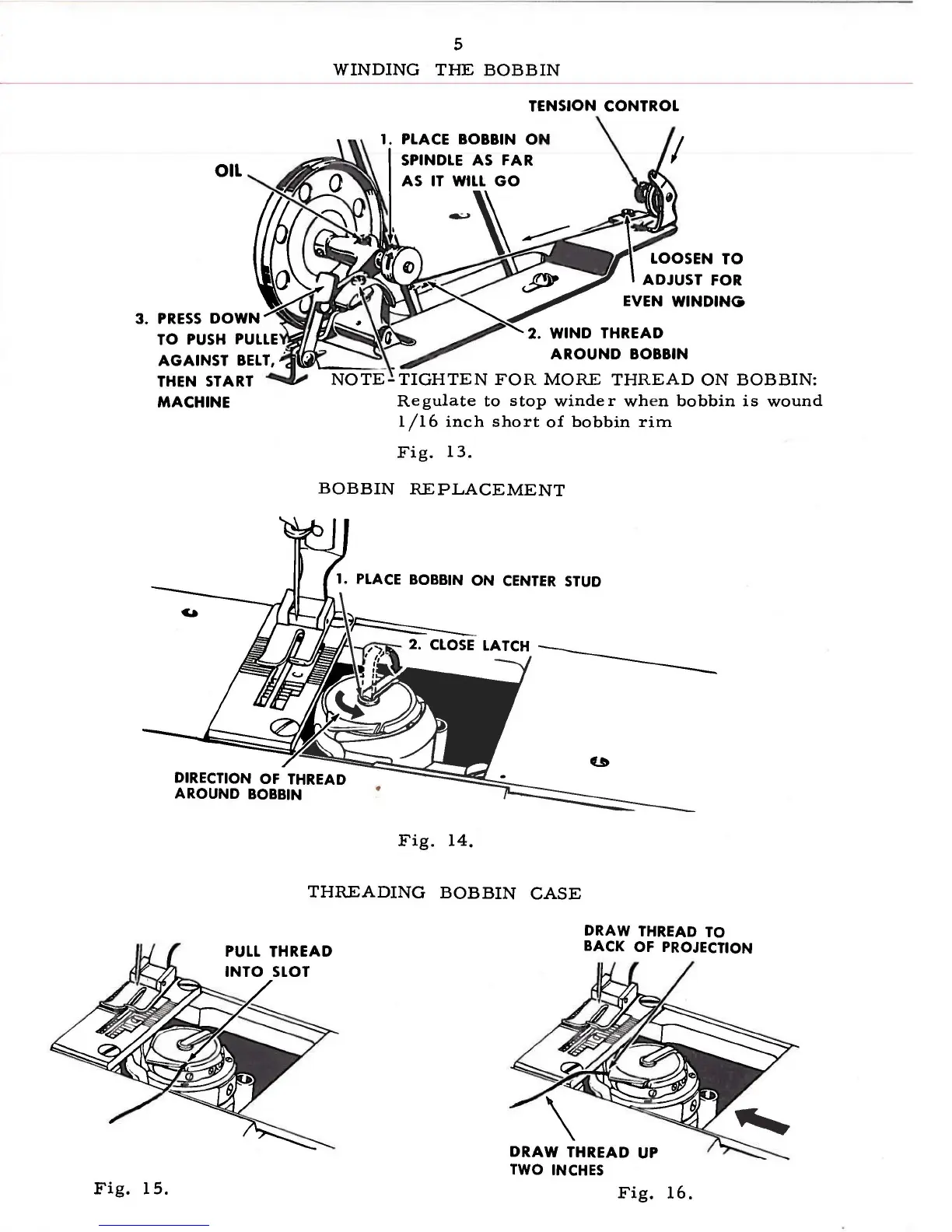

WINDING THE BOBBIN
TENSION CONTROL
1. PLACE BOBBIN ON
SPINDLE AS FAR
AROUND BOBBIN
THEN START
MACHINE
NOTE-TIGHTEN FOR MORE THREAD ON BOBBIN:
Regulate to stop winder wh en bobbin is wound
1/16 inch short of bobbin rim
Fig. 15.
Fig. 13.
BOBBIN REPLACEMENT
DIRECTION OF THREAD
AROUND BOBBIN
•
Fig. 14.
THREADING BOBBIN CASE
PULL THREAD
DRAW THREAD TO
BACK OF PROJECTION
DRAW THREAD UP
TWO INCHES
Fig. 16.
