Singer 211W151 - Arm Shaft, Needle Bar and Take-Up Assembly

R ef.
No.
--
1
2
3
4
5
6
7
8
9
10
ll
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
14

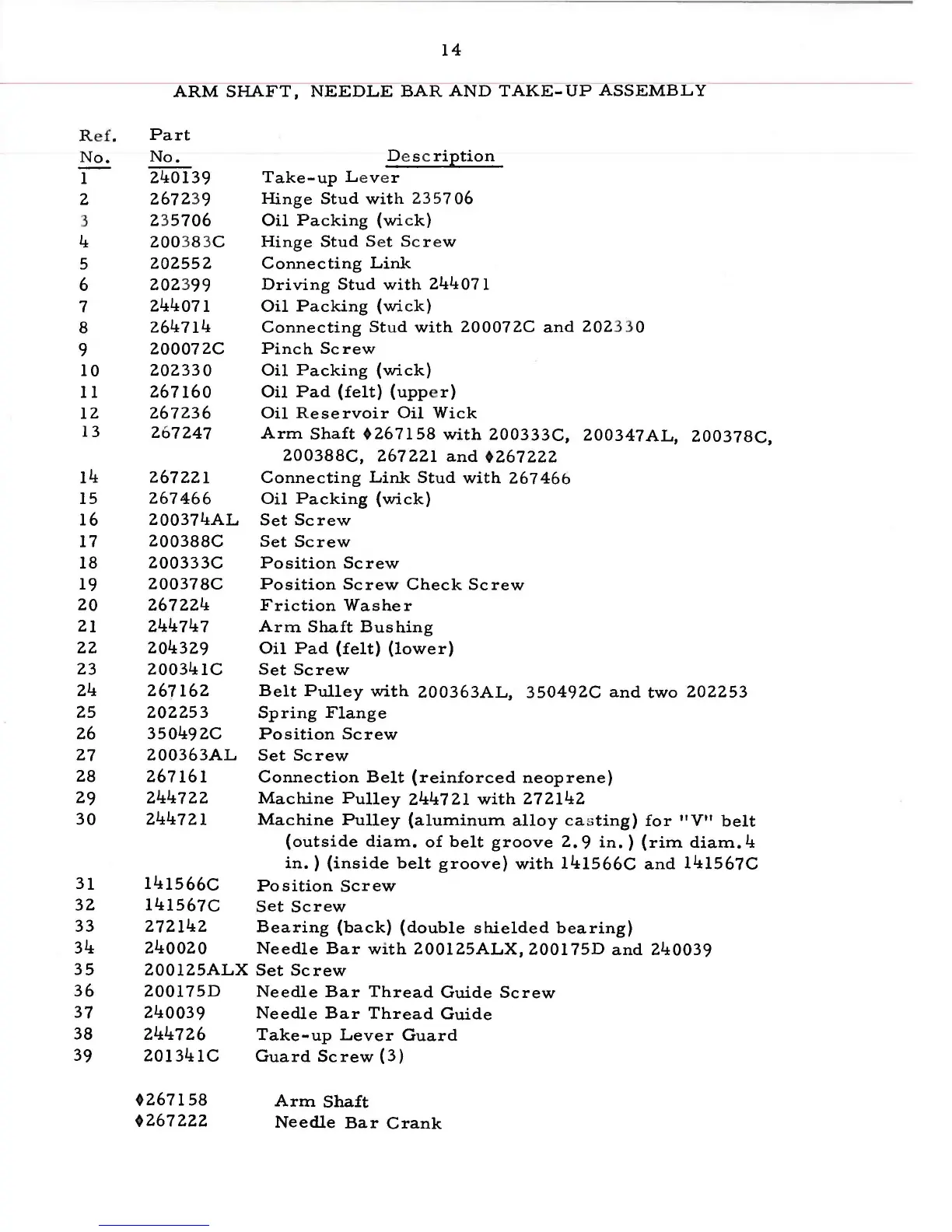

ARM SHAFT, NEEDLE BAR AND TAKE-UP ASSEMBLY
Part
No.
240139
2672 39
23
5706
200 38 3C
202552
202 3 99
244071
264714
200072C
202330
267160
267236
267247
267221
267466
200374AL
200388C
200333C
200378C
267224
244747
204329
200341C
267162
202253
350492C
200363AL
267161
244722
244721
De s c ription
Take-up L eve r
Hinge Stud with 235706
Oil Packing {wick)
Hinge Stud Set Screw
Connecting Link
Driving Stud with 244071
Oil Packing {wick)
Connecting Stud with 200072C and 202 33 0
Pinch Screw
Oil Packing {wick)
Oil Pad {felt) {upp e r)
Oil Reservoir Oil Wick
Arm Shaft + 267158 with 200333C, 200347 AL, 200378C,
200388C, 267221 and +267222
Connecting Link Stud with 267466
Oil Packing {wick)
Set Screw
Set Screw
Position Screw
Position Screw Check Screw
Friction Washer
Arm Shaft Bushing
Oil Pad {felt) {lower)
Set Screw
Belt Pulley with 200363AL, 350492C and two 202253
Spring Flange
Position Screw
Set Screw
Connection Belt {reinforced neoprene)
Machine Pulley 244721 with 272142
Machine Pulley {aluminum alloy ca s ting) for "V" belt
{outside diam. of belt groove 2. 9 in.) {rim diam. 4
in.) {inside belt groove) with 141566C and 141567C
31 141566C Position Screw
32 141567C Set Screw
33 272142 Bearing {back) {double shielded bearing)
34 240020 Needle Bar with 200125ALX, 200175D and 240039
35 200125ALX Set Screw
36 200175D Needle Bar Thread Guide Screw
37 240039 Needle Bar Thread Guide
38 2qq726 Take-up Lever Guard
39 201341C Guard Screw {3)
+267158
+267222
Arm Shaft
Needle Bar Crank
