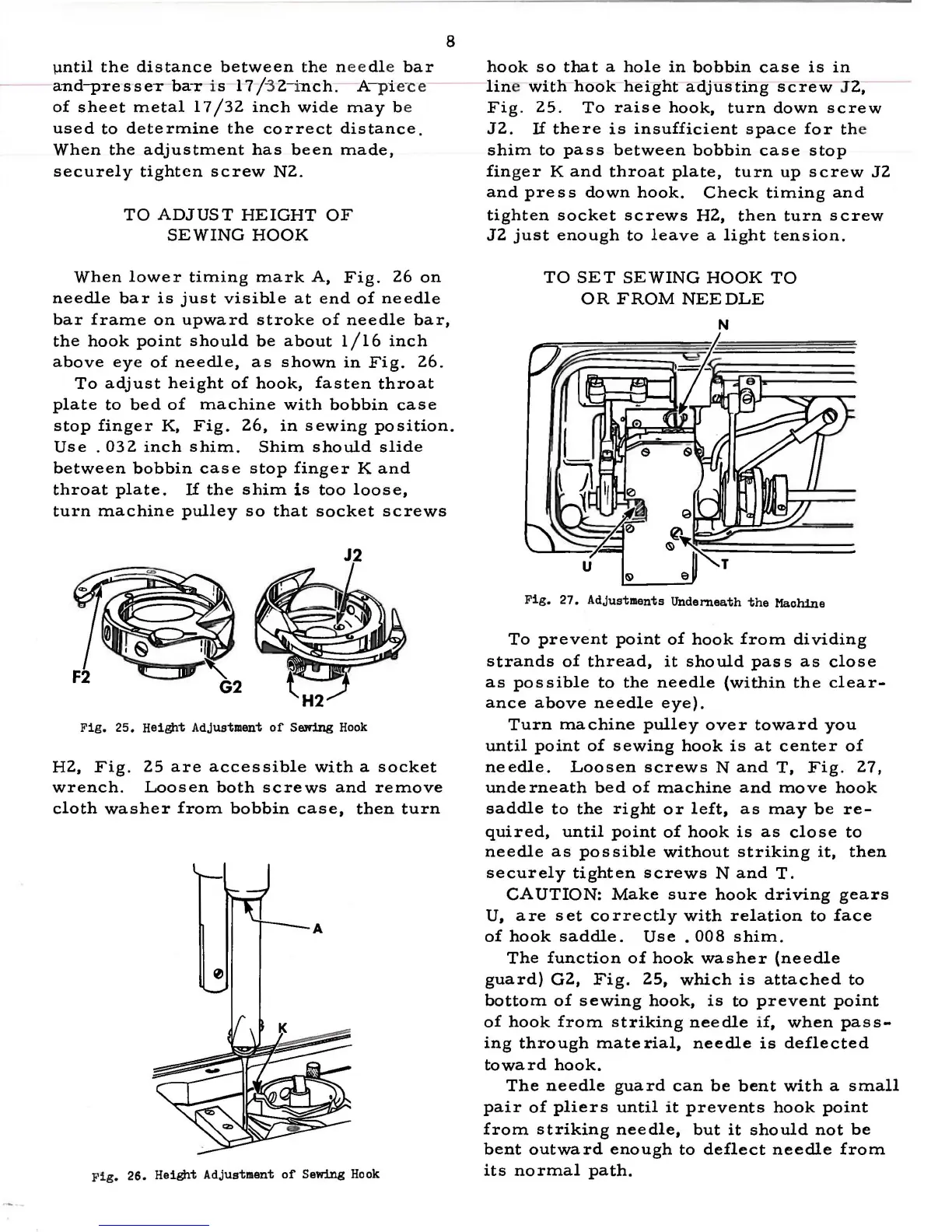

Singer 211W151 - Sewing Hook Adjustments; Adjusting Hook Height; Setting Sewing Hook Alignment

8
'\lOti! the distance between the n ee dl e bar hook so that a hole in bobbin case is in
and-presse-r ba-r i s 17 / :3 2 -i nch. A -p i- e-ce· ------' lin e witn - hoo ].{h:eig nt --a djusting screw 2,
of sheet metal 17/32 inch wide may be Fig . 25. To raise hook, turn down screw
used to determine the correct distance. J2. If there is insufficient space for th e
When the adjustment has been made, shim to pass between bobbin case stop
securely tighten screw N2. finger K and throat plate, turn up screw J2
TO ADJUST HEIGHT OF
SEWING HOOK
When lower timing mark A, Fig. 26 on
needle bar is just visible at end of needle
bar frame on upward stroke of needle bar,
the hook point should be about 1/16 inch
above eye of needle, as shown in Fig. 26.
To adjust height of hook, fasten throat
plate to bed of machine with bobbin case
stop finger K, Fig. 26, in sewing position.
Use . 032 inch shim. Shim should slide
between bobbin case stop finger K and
throat plate. If the shim is too loose,
turn machine pulley so that socket screws
J2
Fig. 25. Height Adjustment of SeJring Hook
HZ, Fig. 25 are accessible with a socket
wrench. Loosen both screws and remove
cloth washer from bobbin case, then turn
A
0
Fig . 26. Height Adjustment of Sewing Hook
and press down hook. Check timing and
tighten socket screws H2, then turn screw
J2 just enough to leave a light tension.
TO SET SEWING HOOK TO
OR FROM NEEDLE
Fig. 27. Adjustments Underneath the Machine
To prevent point of hook from dividing
strands of thread, it should pass as close
as possible to the needle (within the clear-
ance above needle eye).
Turn machine pulley over toward you
until point of sewing hook is at center of
needle. Loosen screws Nand T, Fig. 27,
underneath bed of machine and move hook
saddle to the right or left, as may be re-
quired, until point of hook is as close to
needle as possible without striking it, then
securely tighten screws Nand T.
CAUTION: Make sure hook driving gears
U, are set correctly with relation to face
of hook saddle. Use • 008 shim.
The function of hook washer (needle
guard) G2, Fig. 25, which is attached to
bottom of sewing hook, is to prevent point
of hook from striking needle if, when pass-
ing through mate rial, needle is deflected
toward hook.
The needle guard can be bent with a small
pair of pliers until it prevents hook point
from striking needle, but it should not be
bent outward enough to deflect needle from
its normal path.
