Singer 211W151 - Page 30

Ref.
No.
--
1
2
3
~
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2~
25
26
27
28
29
30
31
32
30

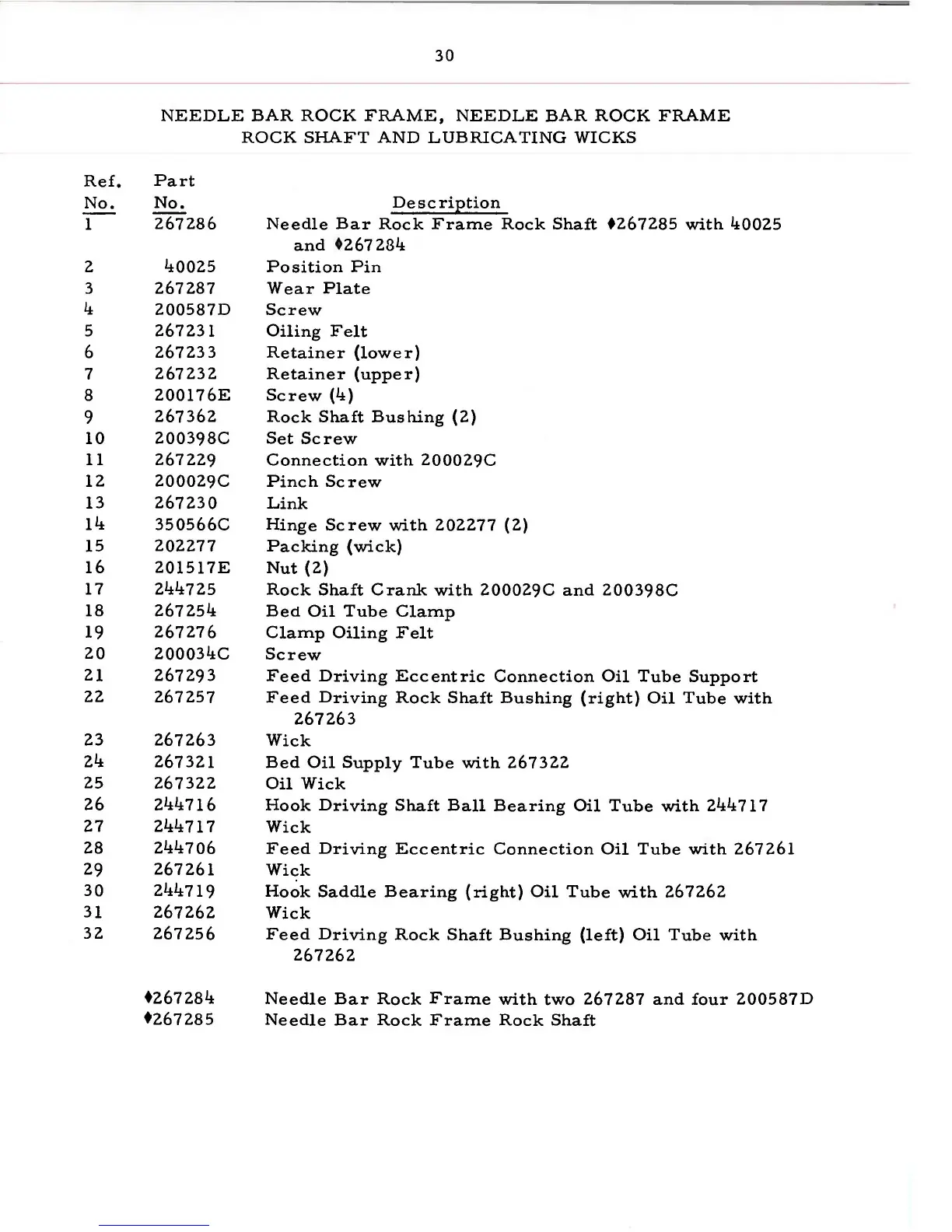

NEEDLE BAR ROCK FRAME, NEEDLE BAR ROCK FRAME
ROCK SHAFT AND LUBRICATING WICKS
Part
No.
267286
~0025
267287
200587D
267231
267233
267232
200176E
267362
200398C
267229
200029C
267230
350566C
202277
201517E
2~~725
26725~
267276
20003~C
267293
267257
267263
267321
267322
24~716
24~717
2~~706
267261
244719
267262
267256
t26728~
+267285
Description
Needle Bar Rock Frame Rock Shaft +267285 with ~0025
and t26728~
Position Pin
Wear Plate
Screw
Oiling Felt
Retainer (lower)
Retainer (upper)
Screw (~)
Rock Shaft Bushing (2)
Set Screw
Connection with 200029C
Pinch Screw
Link
Hinge Screw with 202277 (2)
Packing (wick)
Nut (2)
Rock Shaft Crank with 200029C and 200398C
Bed Oil Tube Clamp
Clamp Oiling Felt
Screw
Feed Driving Eccentric Connection Oil Tube Support
Feed Driving Rock Shaft Bushing (right) Oil Tube with
267263
Wick
Bed Oil Supply Tube with 267322
Oil Wick
Hook Driving Shaft Ball Bearing Oil Tube with 2~~717
Wick
Feed Driving Eccentric Connection Oil Tube with 267261
Wick
Hoc;;k Saddle Bearing (right) Oil Tube with 267262
Wick
Feed Driving Rock Shaft Bushing (left) Oil Tube with
267262
Needle Bar Rock Frame with two 267287 and four 200587D
Needle Bar Rock Frame Rock Shaft
