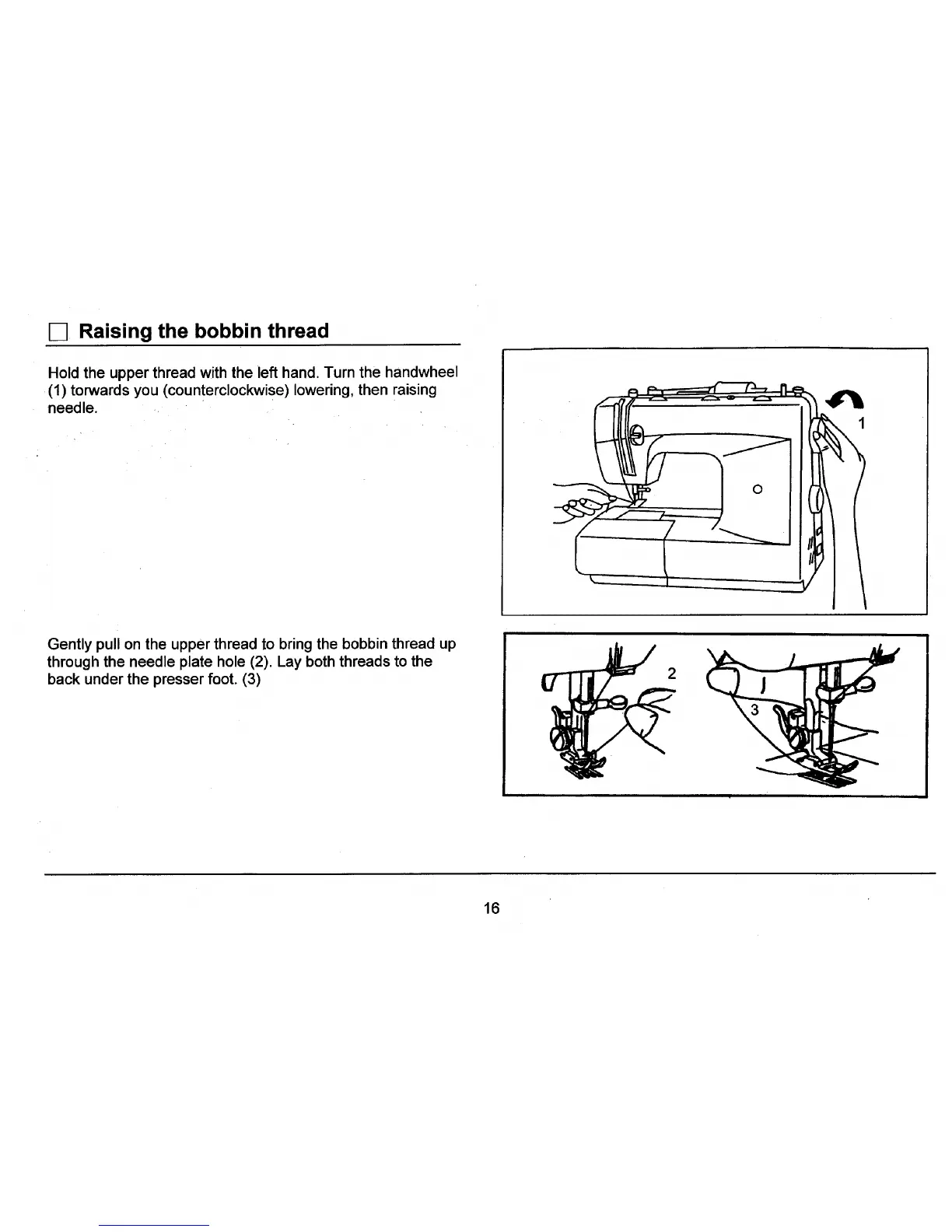

F1 Raising the bobbin thread
Hold the upper thread with the left hand. Turn the handwheel
(1) torwards you (counterclockwise) lowering, then raising
needle.
Gently pull on the upper thread to bring the bobbin thread up
through the needle plate hole (2). Lay both threads to the
back under the presser foot. (3)
16
