Singer 3820 - Stitch Pattern Selection (2-Dial Model)

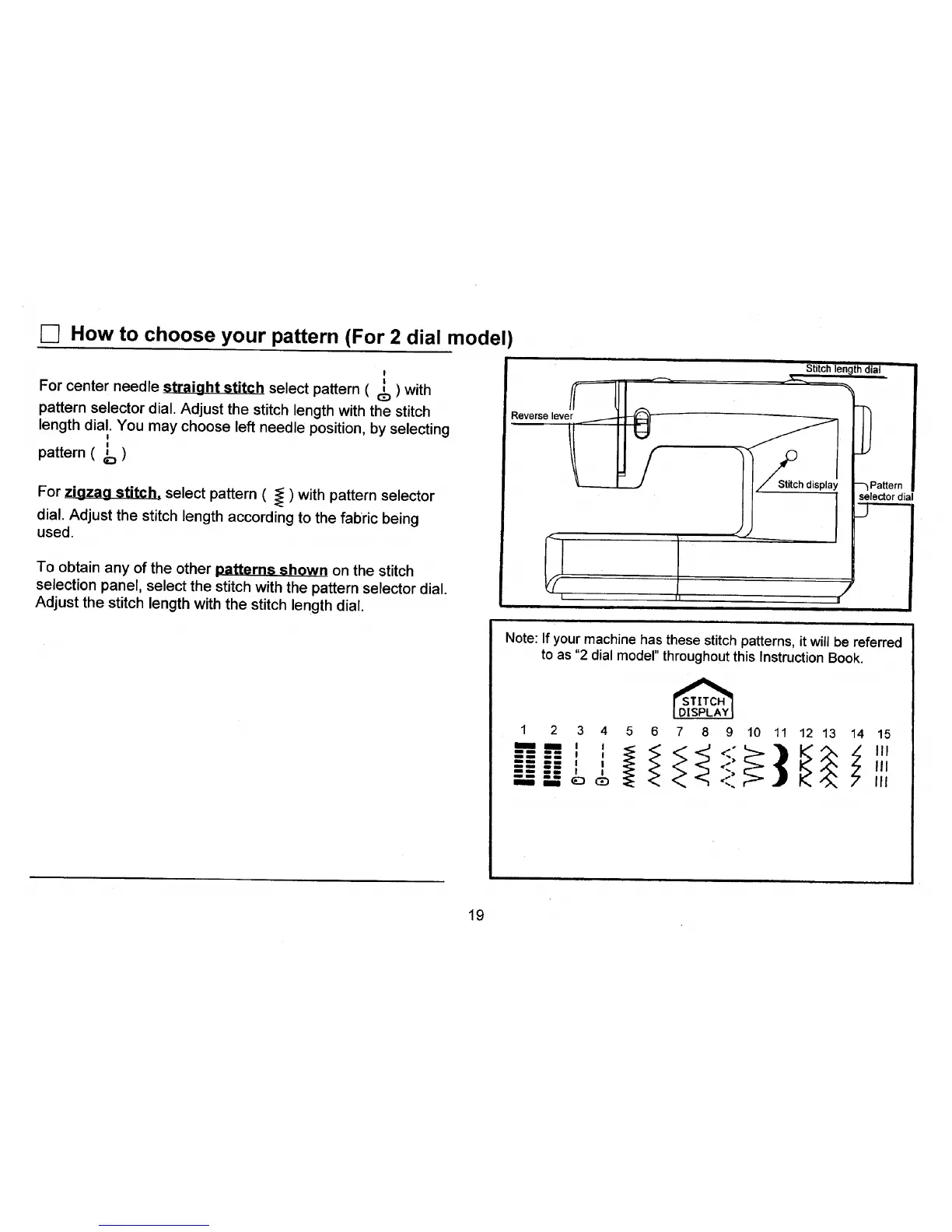

i--] How to choose your pattern (For 2 dial model)
!
For center needle straight stitch select pattern ( _ ) with
pattern selector dial. Adjust the stitch length with the stitch
length dial. You may choose left needle position, by selecting
I
pattern ( I )
For zigzag stitch, select pattern ( _ ) with pattern selector
dial. Adjust the stitch length according to the fabric being
used.
To obtain any of the other patterns shown on the stitch
selection panel, select the stitch with the pattern selector dial.
Adjust the stitch length with the stitch length dial.
Reverse lever
I
Stitch lengthdial
h displa
selectordial
liH
/
Note: If your machine has these stitch patterns, it will be referred
to as "2 dial model" throughout this Instruction Book.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
19
