TO
REPLACE
OIL
FILTER
143042
While the sewing
hook
is
off
the shaft, it is advisable to replace the oil filter 143042, Fig. IS in the end
of
the
hook
shaft. Unscrew the filter from the center
of
the shaft at X, Fig. 15 and replace with a complete new filter
143042.
TO
REPLACE
THE
SEWING
HOOK
\
1

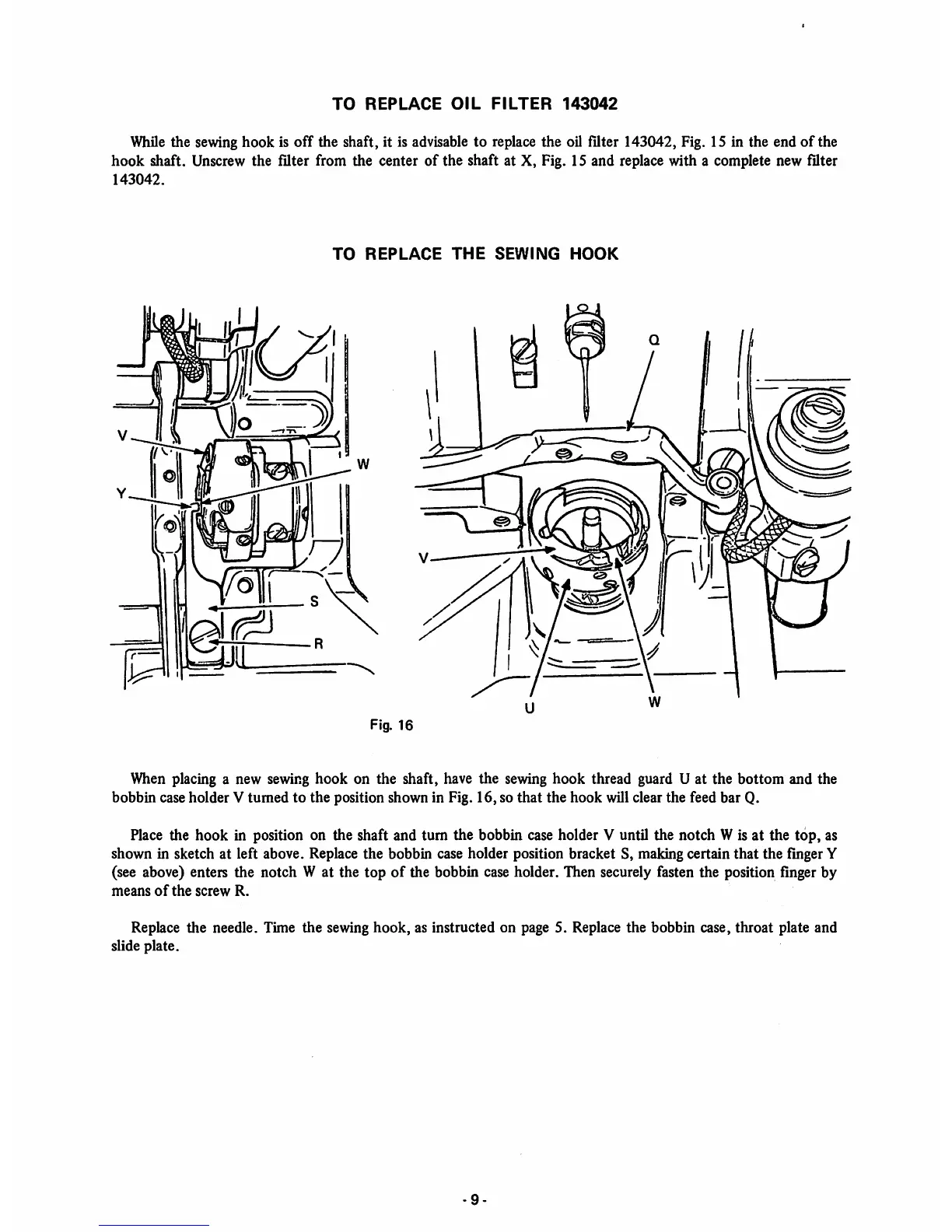

Fig.
16
When placing a new sewing hook on the shaft, have the sewing hook thread guard U at the bottom and the
bobbin case holder V
tumed
to the position shown in Fig. 16, so
that
the hook will clear the feed bar Q.
Place the hook in position on the shaft and turn the bobbin case holder V until the notch W is at the
top,
as
shown in sketch at left above. Replace the bobbin case holder position bracket S, making certain that the finger Y
(see above) enters the notch W at the top
of
the bobbin case holder. Then securely fasten the position finger by
means
of
the
screw
R.
Replace the needle. Time the sewing hook, as instructed on page S. Replace the bobbin case, throat plate and
slide plate.
