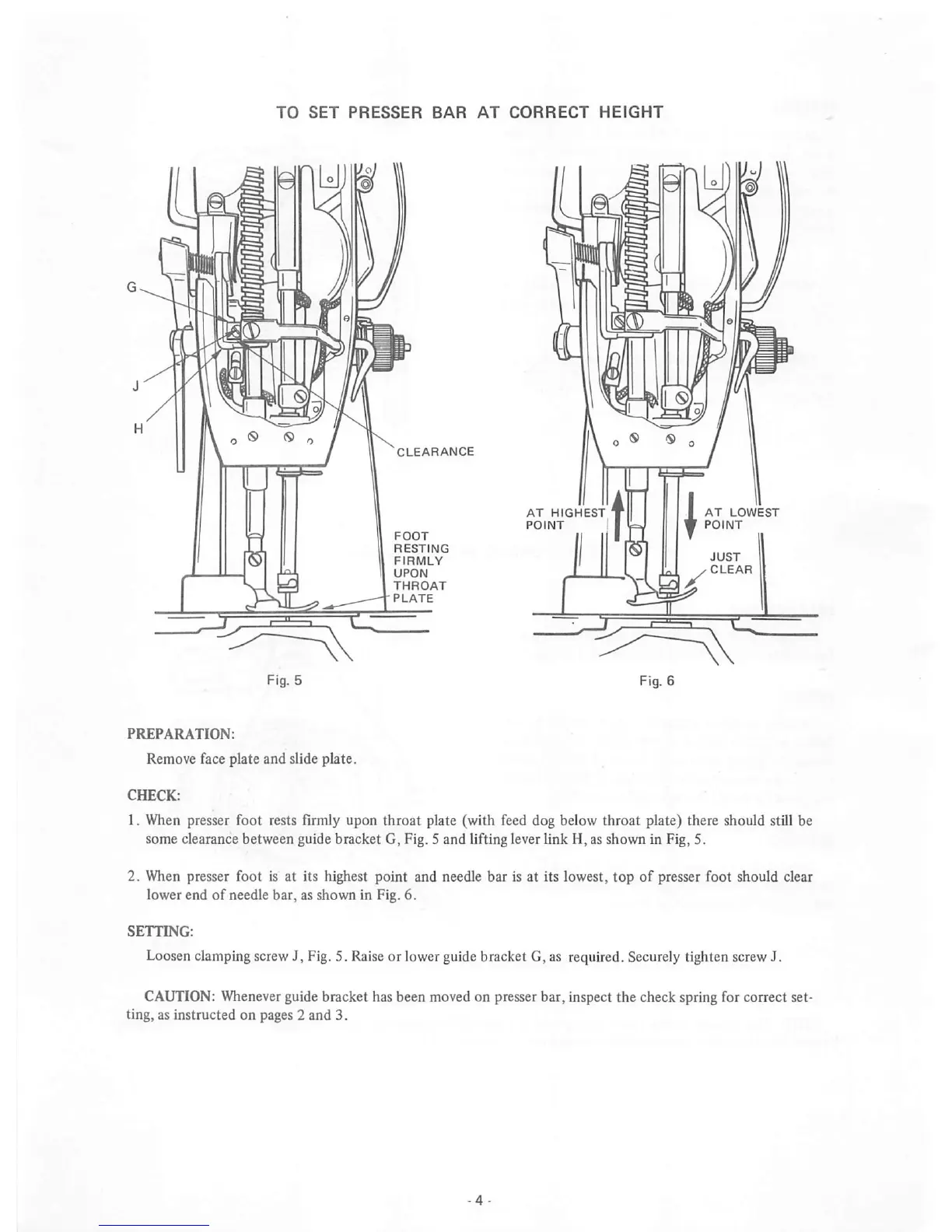

TO
SET
PRESSER
BAR
AT
CORRECT
HEIGHT
S)
(9
CLEARANCE
FOOT
RESTING
FIRMLY
UPON
THROAT
PLATE
AT
HIGHEST
POINT
<S)
Si
AT
LOWEST
POINT
JUST
I
✓
CLEAR
I
PREPARATION:
Remove face plate and slide plate.
CHECK:
1. When presser foot rests firmly upon throat plate (with feed dog below throat plate) there should still be
some clearance between guide bracket G, Fig. 5 and lifting lever link H, as shown in Fig, 5.
2. When presser foot is at its highest point and needle bar is at its lowest,
top
of
presser foot should clear
lower end
of
needle bar, as shown in Fig. 6.
SETTING:
LoosenclampingscrewJ, Fig. 5. Raiseor lower guide bracket G, as required. Securelytighten screwJ.
CAUTION:
Whenever
guidebracket has been movedon presserbar, inspect the check springfor correct set
ting, as instructed on pages 2
and
3.
