Singer 591 - OILING THE MACHINE; ADJUSTING THE ROTATING HOOK OIL FLOW; NEEDLES; INSERTING THE NEEDLE

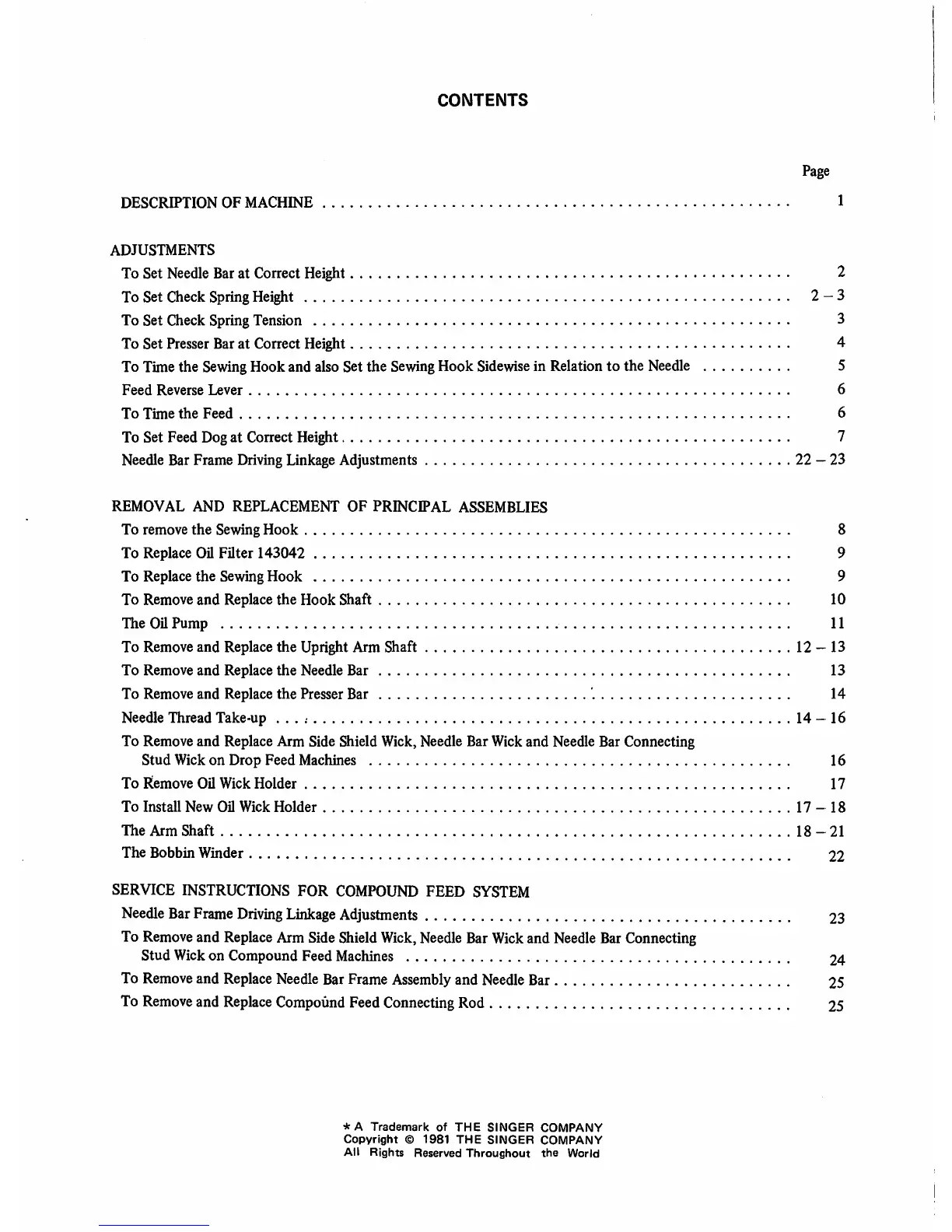

CONTENTS
Page
DESCRIPTION OF MACHINE 1
ADJUSTMENTS
To Set Needle Barat Correct Height 2
To Set Check Spring Height 2 —3
To Set CheckSpringTension 3
To Set PresserBarat Correct Height 4
To Time the SewingHook and also Set the SewingHook Sidewise in Relation to the Needle 5
Feed Reverse Lever 6
To Time the Feed 6
To Set Feed Dogat Correct Height 7
Needle BarFrame Driving Linkage Adjustments 22 —23
REMOVAL AND REPLACEMENT OF PRINCIPAL ASSEMBLIES
To remove the Sewing Hook 8
To Replace Oil Filter
143042 9
To Replace the Sewing Hook 9
To Remove and Replace the Hook Shaft 10
The Oil Pump 11
To Remove and Replace the Upright Arm Shaft 12 —13
To Remove and Replace the Needle Bar 13
To Remove and Replace the Presser Bar 14
Needle Thread Take-up . . . 14 —16
To Remove and Replace Arm Side Shield Wick, Needle Bar Wickand Needle Bar Connecting
Stud Wick on Drop Feed Machines 16
To Remove Oil Wick Holder 17
To Install New Oil Wick Holder 17 — 18
The Arm Shaft 18 —21
The BobbinWinder 22
SERVICE INSTRUCTIONS FOR COMPOUND FEED SYSTEM
Needle BarFrame Driving Linkage Adjustments 23
To Remove and Replace Arm Side Shield Wick,Needle Bar Wickand Needle Bar Connecting
Stud Wick on Compound Feed Machines 24
To
Remove and Replace Needle BarFrame Assembly and Needle Bar 25
To
Remove and Replace Compound Feed Connecting Rod 25
