Singer 6233 - Caring for Your Machine; Bobbin Case Removal and Replacement

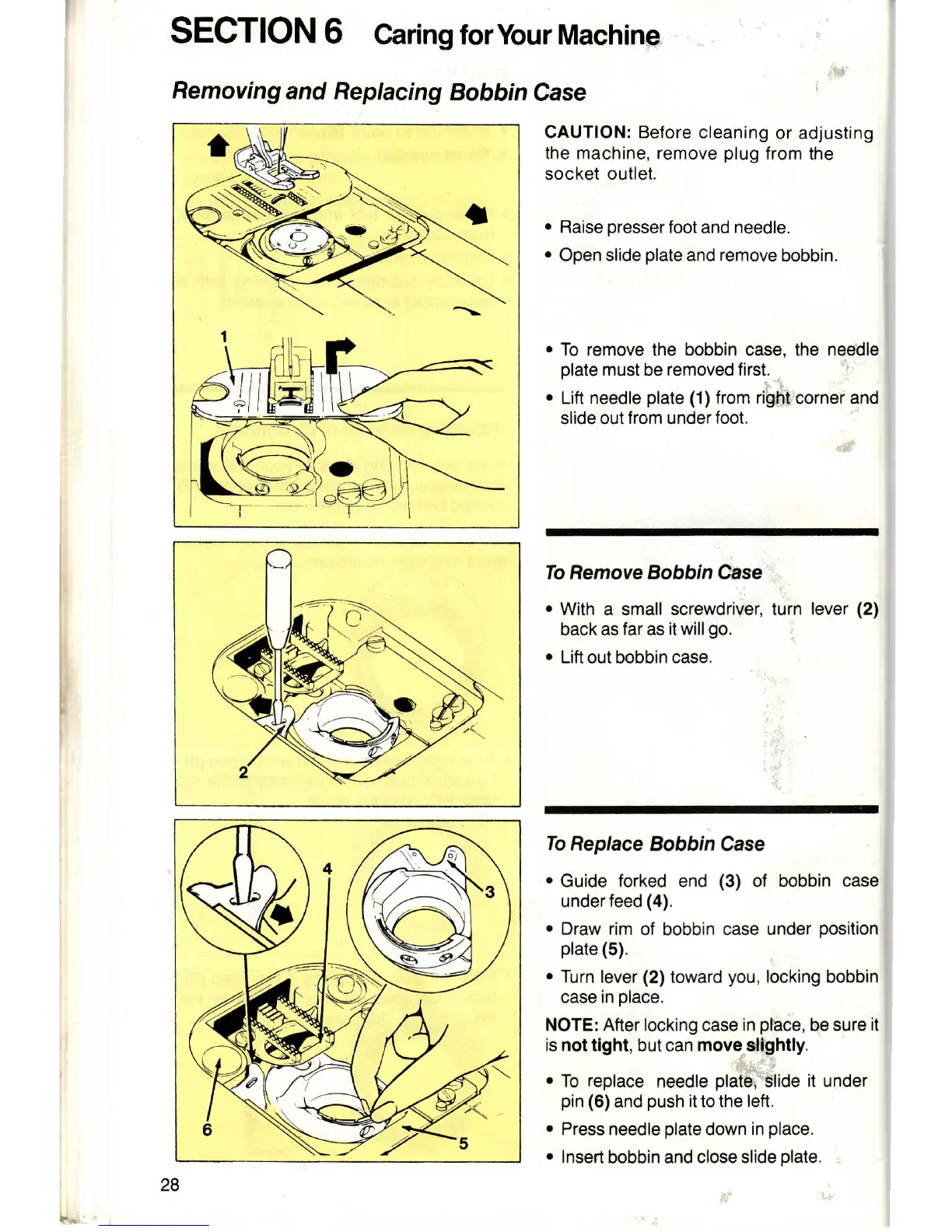

SECTION 6
Caring forYour Machine
Removing
and Replacing
Bobbrn
Case
CAUTION: Before
cleaning
or adjusting
the
machine,
remove
plug
from
the
socket
outlet.
.
Raise
presser
foot and
needle.
.
Open slide
plate
and remove
bobbin.
o
To
remove the bobbin case, the
needle
olate
must be removed first.
.
Lift needle
plate
(1)
from right
corner and
slide out from under foot.
To
Remove Bobbin Case
o
With a small screwdriver, turn
lever
(2)
back as
far as it will
go.
r
Lift out bobbin case.
To
Replace Bobbrn
Case
.
Guide forked end
(3)
of bobbin case
under feed
(4).
.
Draw
rim
of
bobbin
case under
position
plate
(5).
.
Turn lever
(2)
toward
you,
locking bobbin
case in
place,
NOTE: After locking
case
in
place,
be sure
it
is not tight, but
can
move
slightly.
r
To
replace
needle
plate,
slide
it under
pin
(6)
and
push
it to the left.
o
Press needle
plate
down
in
place.
o
Insert
bobbin and close slide
plate,
28
