Singer 6233 - Light Bulb Replacement

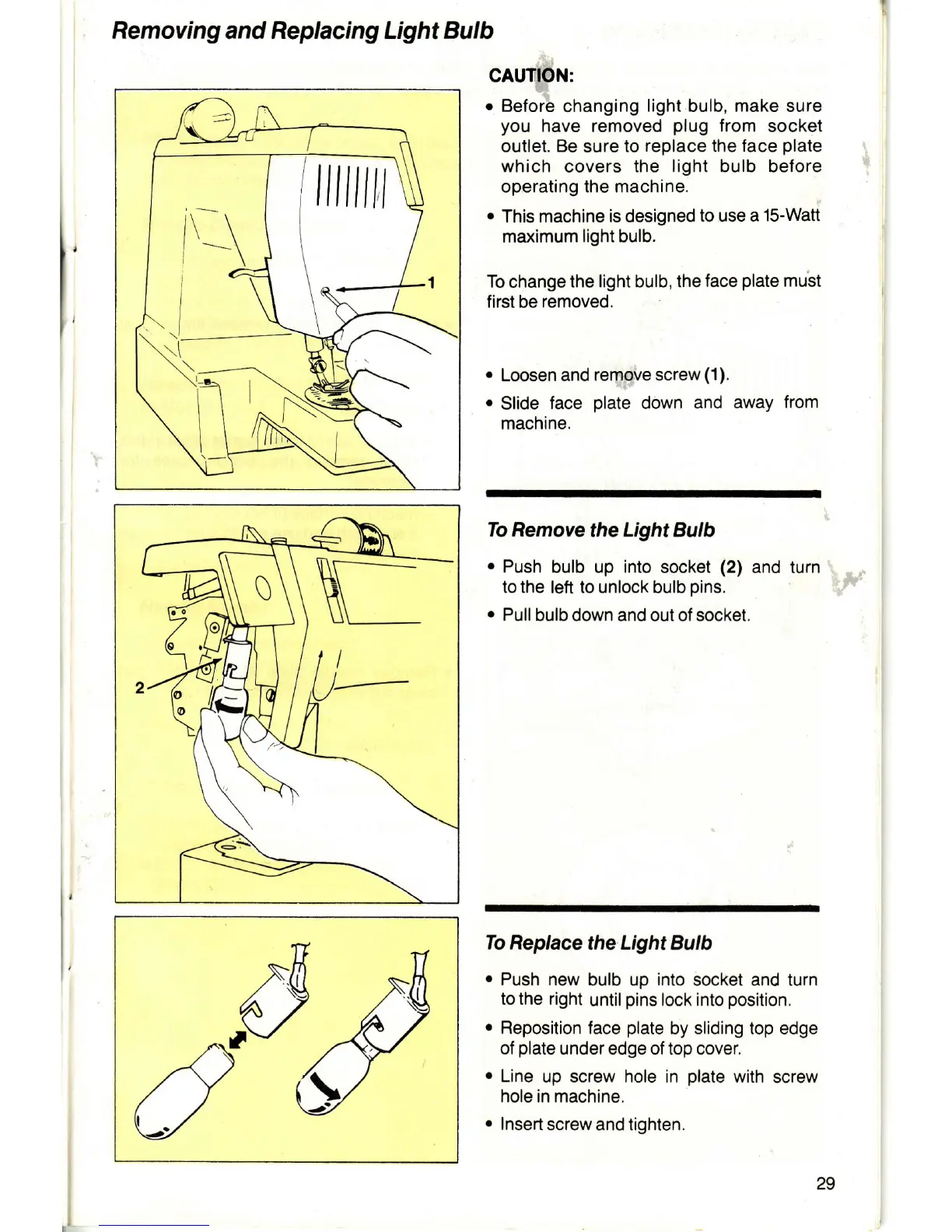

Removing
and
Replacing LightBulb
ddd
CAUT:I,pN:
r
Before
changing
light
bulb,
make
sure
you
have
removed
plug
from
socket
outlet. Be
sure
to replace the
face
plate
which
covers
the light bulb before
operating the machine.
o
This machine is designed
to use
a 1s-Watt
maximum
light bulb.
To change the
light bulb, the
face
plate
must
first
be removed.
.
Loosen
and remove
screw
(1).
.
Slide
face
plate
down
and away
from
rnachine,
To Removethe Light Bulb
.
Push bulb up into
socket
(2)
and turn
to the
left
to unlock bulb
pins.
o
Pull bulb down
and out of
socket.
To Replace
the
Light
Bulb
.
Push new
bulb
up into
socket
and
turn
to the right
until
pins
lock into
position.
o
Reposition
face
plate
by sliding top edge
of
plate
under edge of top cover.
.
Line
up screw hole in
plate
with
screw
hole in machine.
r
Insert
screw
and
tighten.
/
rrrrrul
\
\*-
\k
G
29
