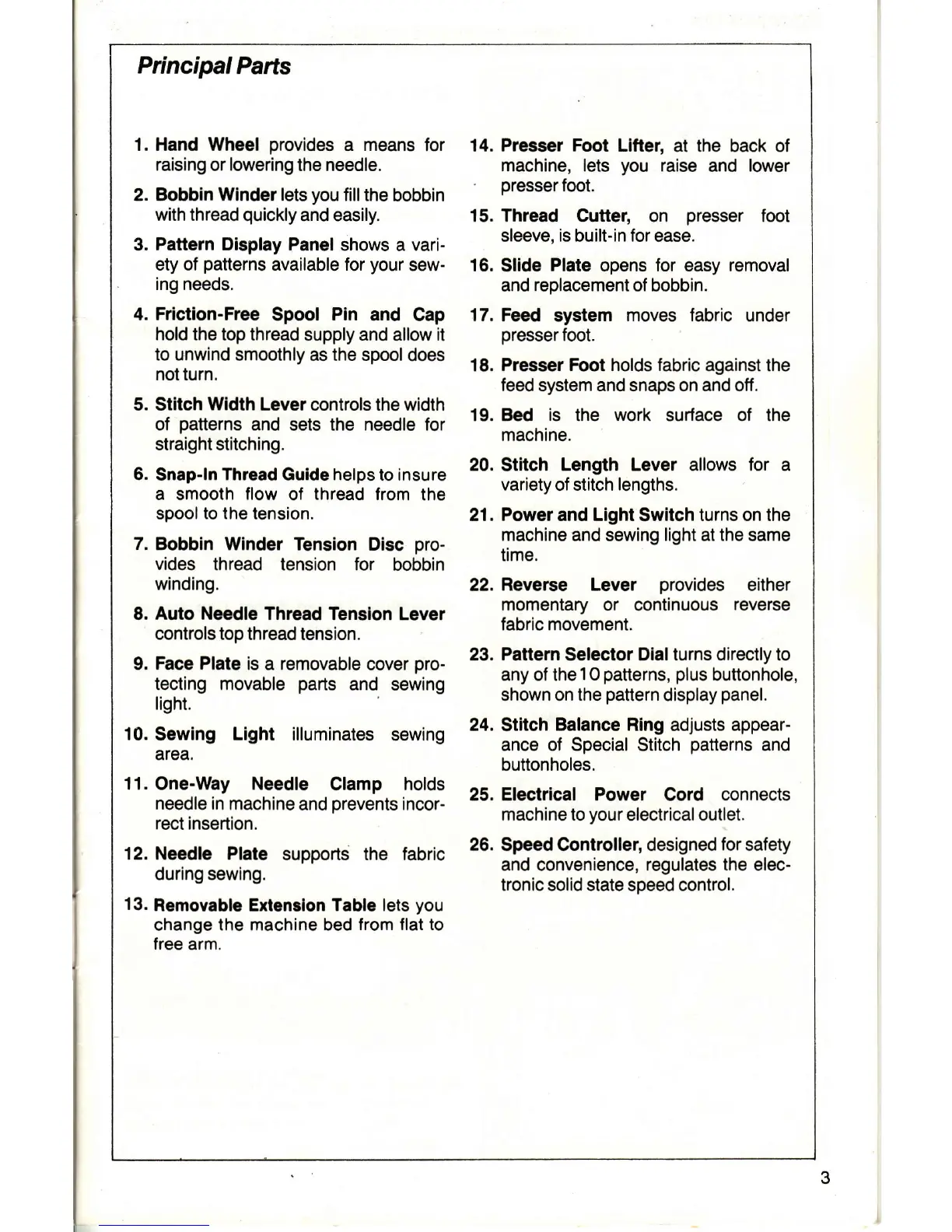

Principal
Parts
1. Hand Wheel
provides
a means
for
raising
or
lowering
the needle.
2. Bobbin Wlnder lets
you
fillthe
bobbin
with thread
quickly
and easily.
3. Pattern Display Panel
shows a vari-
ety of
patterns
available
for
your
sew-
ing needs.
4. Friction-Free
Spool
Pin and
Cap
hold
the top thread supply and allow it
to unwind
smoothly as the spool does
notturn.
5. Stitch
Width
Lever controls the width
of
patterns
and
sets
the needle
for
straight stitching.
6. Snap-ln Thread Guide helps to insure
a smooth flow
of
thread from
the
spool
to the
tension.
7.
Bobbin Winder Tension Disc
pro.
vides thread
tension
for
bobbin
winding.
8. Auto Needle Thread Tension
Lever
controls
top thread tension.
9. Face
Plate
is a removable
cover
pro-
tecting movable
parts
and
sewing
light.
10.
Sewing Light illuminates
sewing
area.
11.
One-Way Needle
Glamp
holds
needle in machine
and
prevents
incor-
rect
insertion.
12. Needle Plate
supports the fabric
during sewing.
13.
Removable
Exlenglon
Table lets
you
change the machine bed
from flat to
free
arm.
14. Presser Foot Lifter.
al
the
back of
machine, lets
you
raise
and lower
"
presserfoot.
15. Thread Cutter,
on
presser
foot
sleeve,
is
built-in for ease.
16.
Slide
Plate
opens for easy removal
and
replacement
of bobbin.
17. Feed system moves fabric under
presserfoot.
18.
Presser Foot holds fabric against
the
feed system and snaps on and off.
19. Bed is the work surface of the
machine.
20.
Stitch
Length Lever allows for a
variety of stitch lengths.
21. Power and Light
Switch
turns on the
machine
and sewing
light
at
the
same
time.
22. Reverse Lever
provides
either
momentary or continuous
reverse
fabric movement.
23.
Pattern
Selector Dialturns directly to
any
of the
10
patterns, plus
buttonhole,
shown on the
pattern
display
panel.
24. Stitch
Balance
Ring adjusts appear-
ance of Special
Stitch
patterns
and
buttonholes.
25. Electrlcal Power
Cord
connects
machine
to
your
electrical outlel.
26.
Speed Controller, designed
forsafety
and convenience, regulates
the
elec-
tronic solid state speed control.
