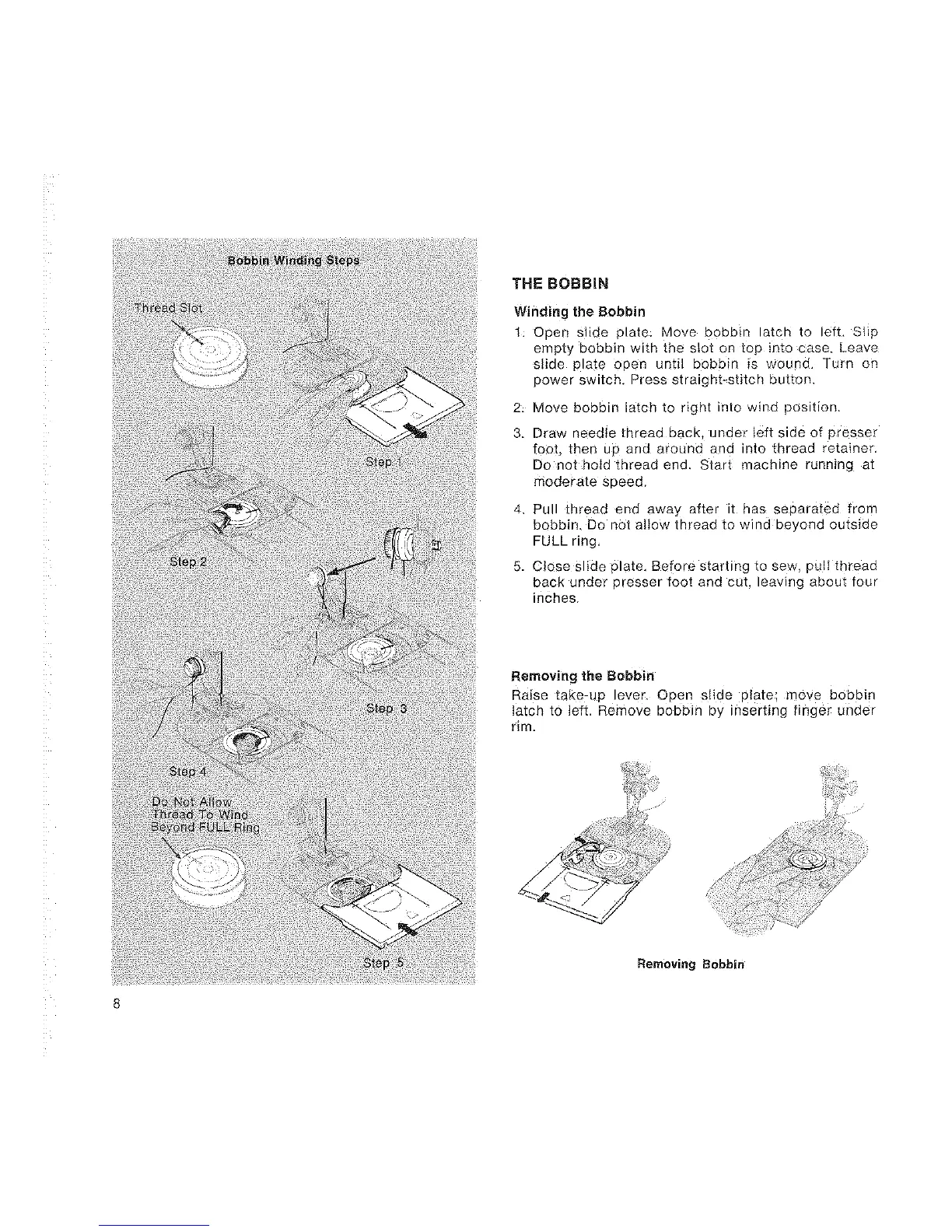

THE BOBBIN
Winding the Bobbin
1: Opee slide plate; Move bobbin latch to left. Slip
empty bobbin with the slot on top into case. Leave
slide plate open until bobbin is wound. Turn on
power switch. Press straight-stitch button,
2 Move bobbin latch to right into wind position.
3. Draw needle thread back, under left side of presser
foot, then up and around and into thread retainer
Do not hold thread end. Start machine running at
moderate speed.
4,
5.
Pull thread end away after it has separated from
bobbin, Do not allow thread to wind beyond outside
FULL ring,
Close slide plate. Before starting to sew, puli thread
back under presser foot and cut, leaving about four
inches.
Removing the Bobbin
Raise take-up lever Open slide plate; move bobbin
latch to left. Remove bobbin by inserting finger under
rim.
Removing Bobbin
