PRE-OPERATION FUNCTION TEST
GTZZ14EJ&16EJ Operation Manual 6-3 © Dec 2021

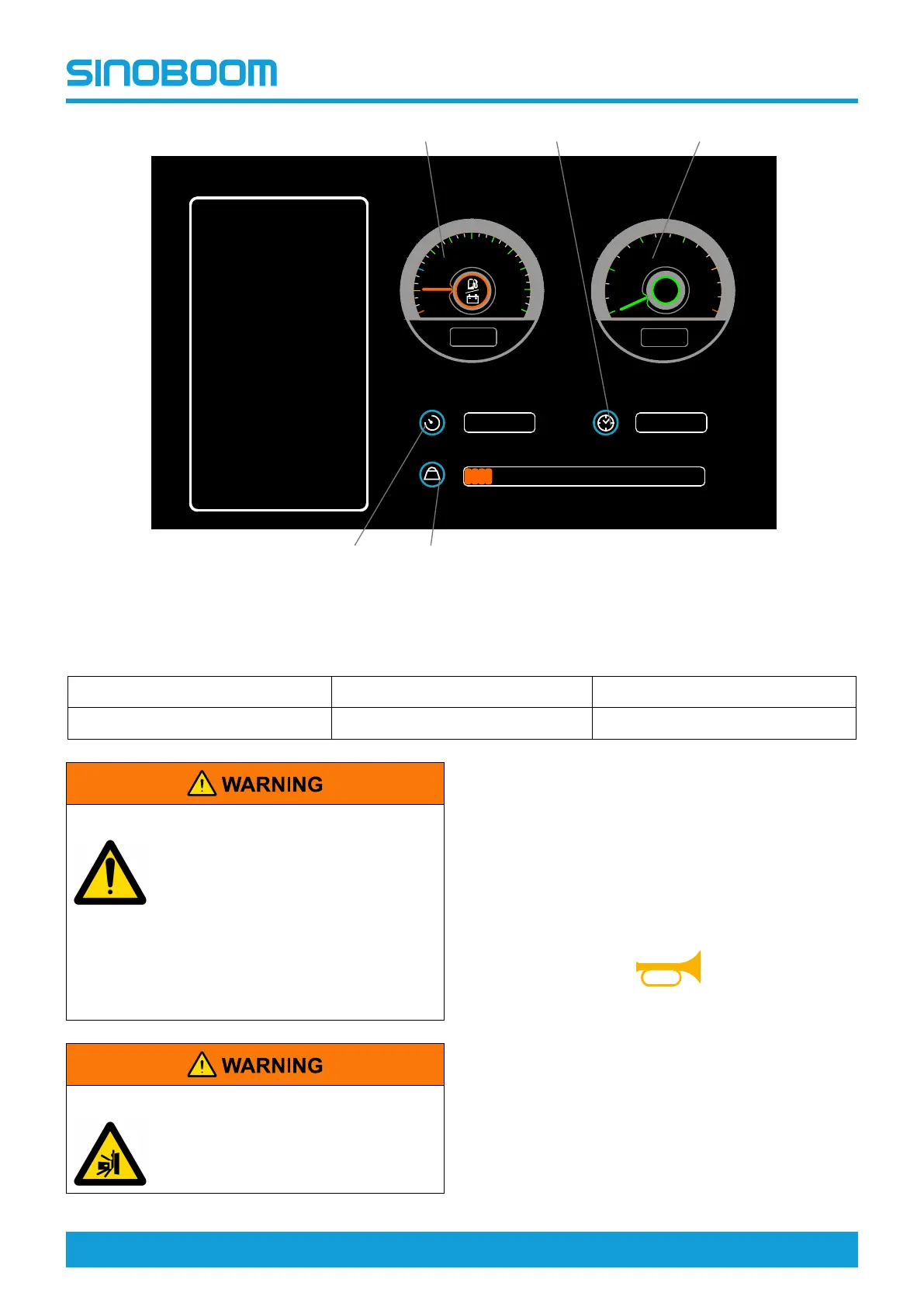

Figure 6-2 Turntable controller screen
Table 6-2
1. Diesel oil gauge/battery indicator
3.Tachometer 5.Platform load
2.Cumulative working hours 4.Current working hours
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate from the ground
control console if there are still
persons on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
COLLISION HAZARD
Before operating the boom, ensure
the area near or under the platform is
clear of persons or obstructions.
Preparation
1. Turn the Ground/Platform select switch to ground
control position.
2. Pull out the emergency stop button to ON position.
3. Ensure the relevant indicator light on the display
screen is illuminated and no error comes up.
Horn button
Push down the horn button, and the horn should
sound.
Emergency stop button
E
2
4
6
8
F
11 %
0
1
2
3
4
5
0
RPM
X1000
H H
11.5
0011.5
1 2
54
3
