© Dec 2021 6-4 GTZZ14EJ&16EJ Operation Manual

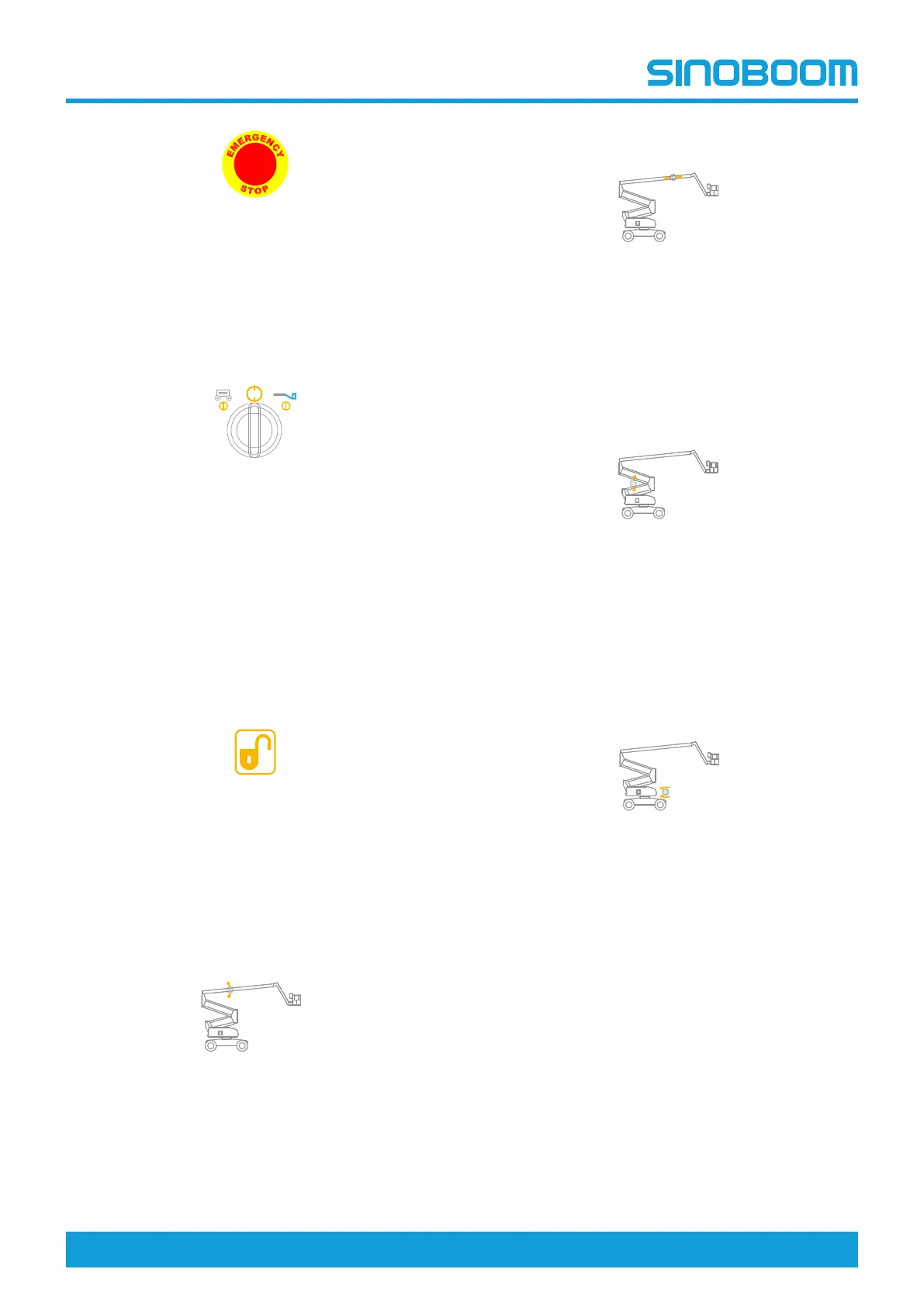

PRE-OPERATION FUNCTION TEST
1. Push in the emergency stop button on the ground
controller to OFF position. All functions should be
inoperative.
2. Pull out the emergency stop button on the ground
controller to ON position.
Ground/Platform select switch
1. Turn the “ground/platform control select switch”
on the ground controller to “ground control”
position. Then, relevant operations can only be
carried out on the ground controller, and platform
control function is invalid.
2. Turn the “ground/platform control select switch”
on the ground controller to “platform control”
position. Then, relevant operations can only be
carried out on the platform controller, and ground
control function is invalid.
Enable switch
1. Move each function switch without moving the
enable switch, and the corresponding function
shall be inoperative.
2. Move each function switch together with the
enable switch, and each function shall operate
normally.
Main boom up/down switch
1. After turning on the enable switch and pulling the
main boom up/down switch upwards, the boom
shall move up smoothly.
2. After turning on the enable switch and pulling the
main boom up/down switch downwards, the boom
shall move down smoothly and the buzzer shall
sound.
Main boom telescoping switch
1. After turning on the enable switch and pulling the
main boom telescoping switch towards the right,
the boom shall extend smoothly.
2. After turning on the enable switch and pulling the
main boom telescoping switch towards the left,
the boom shall retract smoothly.
Foldable boom up/down switch
1. After turning on the enable switch and pulling the
foldable boom up/down switch upwards, the
foldable boom shall move up smoothly.
2. After turning on the enable switch and pulling the
foldable boom up/down switch downwards, the
foldable boom shall move down smoothly and the
buzzer shall sound.
Turntable rotating switch
1. After turning on the enable switch and pulling the
turntable rotating switch upwards, the turntable
shall rotate anticlockwise.
2. After turning on the enable switch and pulling the
turntable rotating switch downwards, the turntable
shall rotate clockwise.
Platform leveling switch
∅52
∅22
∅35
∅55
4X ∅7
∅12.5
R2.5
∅22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
