© Jun 2020 7-6 GTJZ1412E&1414E&1412E Plus Operation Manual
OPERATING THE MACHINE
bottom of the tube. Never overfill the tube at the end
of the charging cycle.

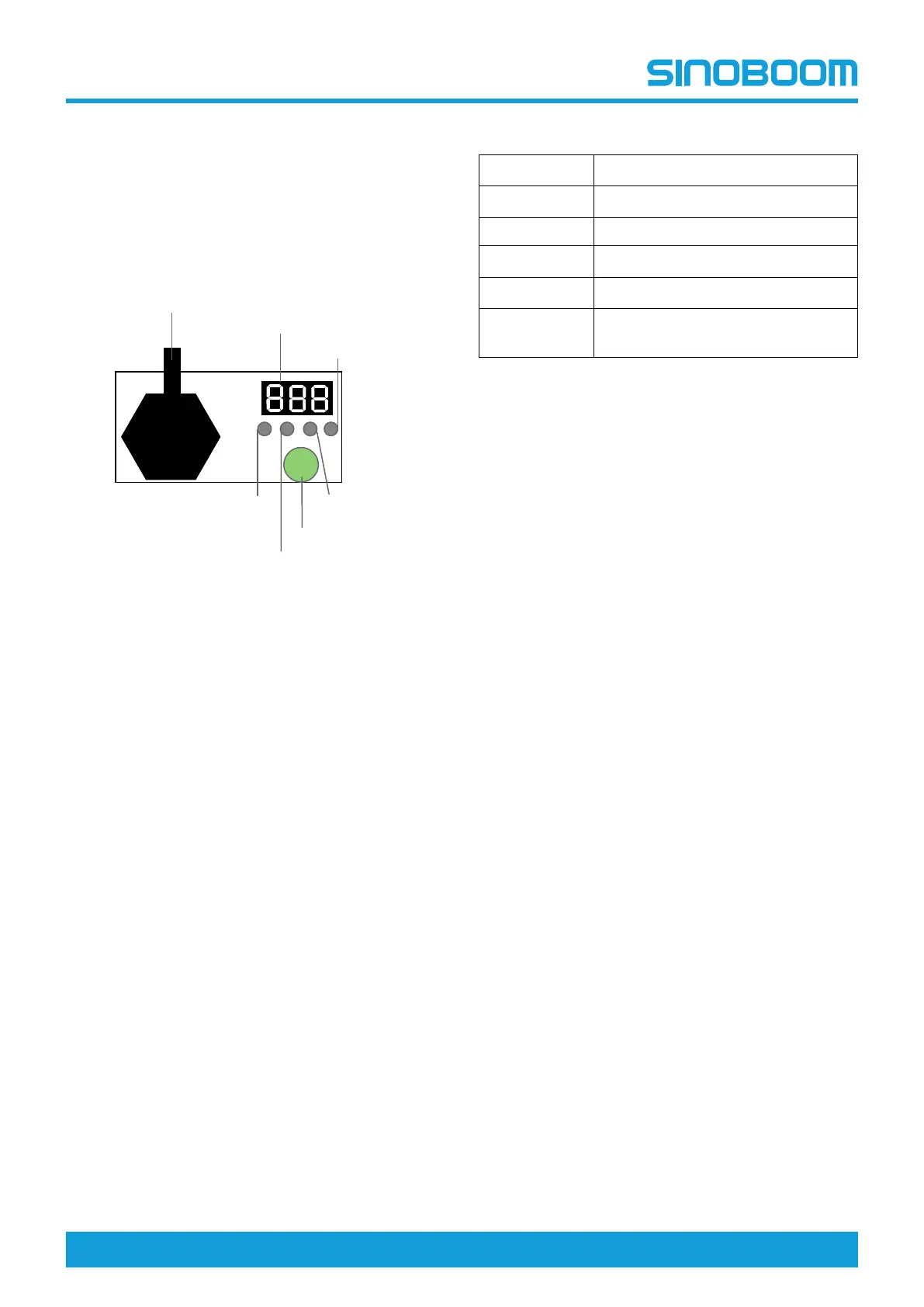

CHANGING CHARGER
BATTERY CURVE
Figure 7-3
To switch the curve:
1. Press and hold the Select key for 5s and release,
the display will indicate the current curve code.
2. Press gently for 1s and release to switch the
charging curve codes.
3. After selection of charging curve code, press and
hold Select key for 5s, the charging curve code will
flash quickly, release the key, and the battery curve
has been configured.
4. Repeat the steps above if re-change is needed.
To enter EQ mode manually:
1. Press and hold Select key for 10s, when the display
shows EQ in quick flashing, release the key and the
charger has been set in EQ mode.
2. To exit the EQ mode, likewise, press and hold the
Select key for 10s, when the display shows OFF in
quick flashing, release the key and the charger will
exit the EQ mode.
Charger in-built curve codes and respective battery
models
Table 7-3
Curve codes Battery models
B02
Trojan T105
B04 Discover AGM
B05
US Battery Flooded
B07
Trojan T125
B11
Trojan T1275
(two in series and two in tandem)
Note: the default curve code is B02.
%
V
A
B
EQ/
Select
Battery
voltage indicator
Charging
current indicator
Charging capacity
Display
Charging voltage indicator
EQ/Select Button
Battery program
update interface
