Sinoboom TB24 Plus - Page 48

© Jun 2022 6-6 TB24 Plus&26J Plus Operation Manual

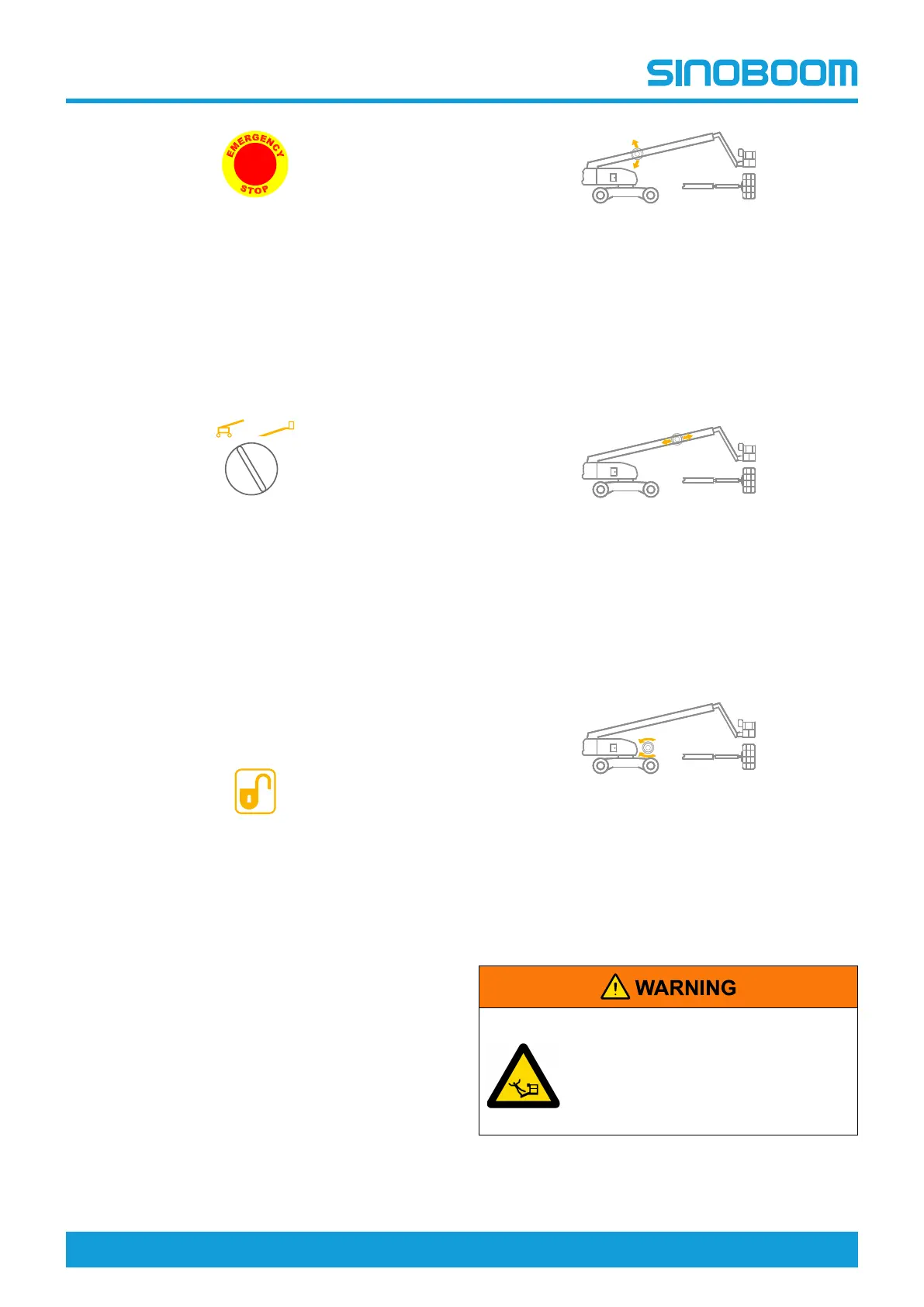

PRE-OPERATION FUNCTION TEST
1. Push in the emergency stop button on the ground
controller to OFF position and move the engine
start switch. The engine should fail to start and all
functions should be inoperative.
2. Pull out the emergency stop button on the ground
controller to ON position and move the engine
start switch. The engine should start normally.
Ground/Platform select switch
1. Turn the Ground/Platform select switch on the
ground controller to ground control position. The
functional operation should be only allowed on
the ground controller, while the platform controller
should be inoperative.
2. Turn the Ground/Platform select switch on the
ground controller to platform control position. The
functional operation should be only allowed on
the platform controller, while the ground controller
should be inoperative.
Enable switch
1. Move both the enable switch and the engine start
switch, the engine should fail to start.
2. Move the engine start switch without moving the
enable switch, the engine should start normally.
3. Move any function switch without moving the
enable switch, the corresponding function should
be inoperative.
4. Move any function switch together with the enable
switch, each function should operate normally.
Main boom up/down switch
1. Move the enable switch and meanwhile move
upwards the main boom up/down switch, the
main boom should raise smoothly.
2. Move the enable switch and meanwhile move
downwards the main boom up/down switch, the
main boom should raise smoothly without shaking
or abnormal noise, and the buzzer will sound.
Main boom telescope switch
1. Move the enable switch and meanwhile move
rightwards the main boom telescope switch, the
main boom should extend smoothly.
2. Move the enable switch and meanwhile move
leftwards the main boom telescope switch, the
main boom should retract smoothly.
Turntable rotate switch
1. Move the enable switch and meanwhile move
leftwards the turntable rotate switch, the turntable
should rotate counterclockwise.
2. Move the enable switch and meanwhile move
rightwards the turntable rotate switch, the
turntable should rotate clockwise.
Platform level switch
FALL HAZARD
The platform leveling function is only
used for slight adjustment of the
platform. Improper operation may
result in unintended movement or fall
of the load/occupants.
