Sinterit LISA PRO User Manual | 15
16
17
17
18
16
16
16
19
20
22
23
21
24

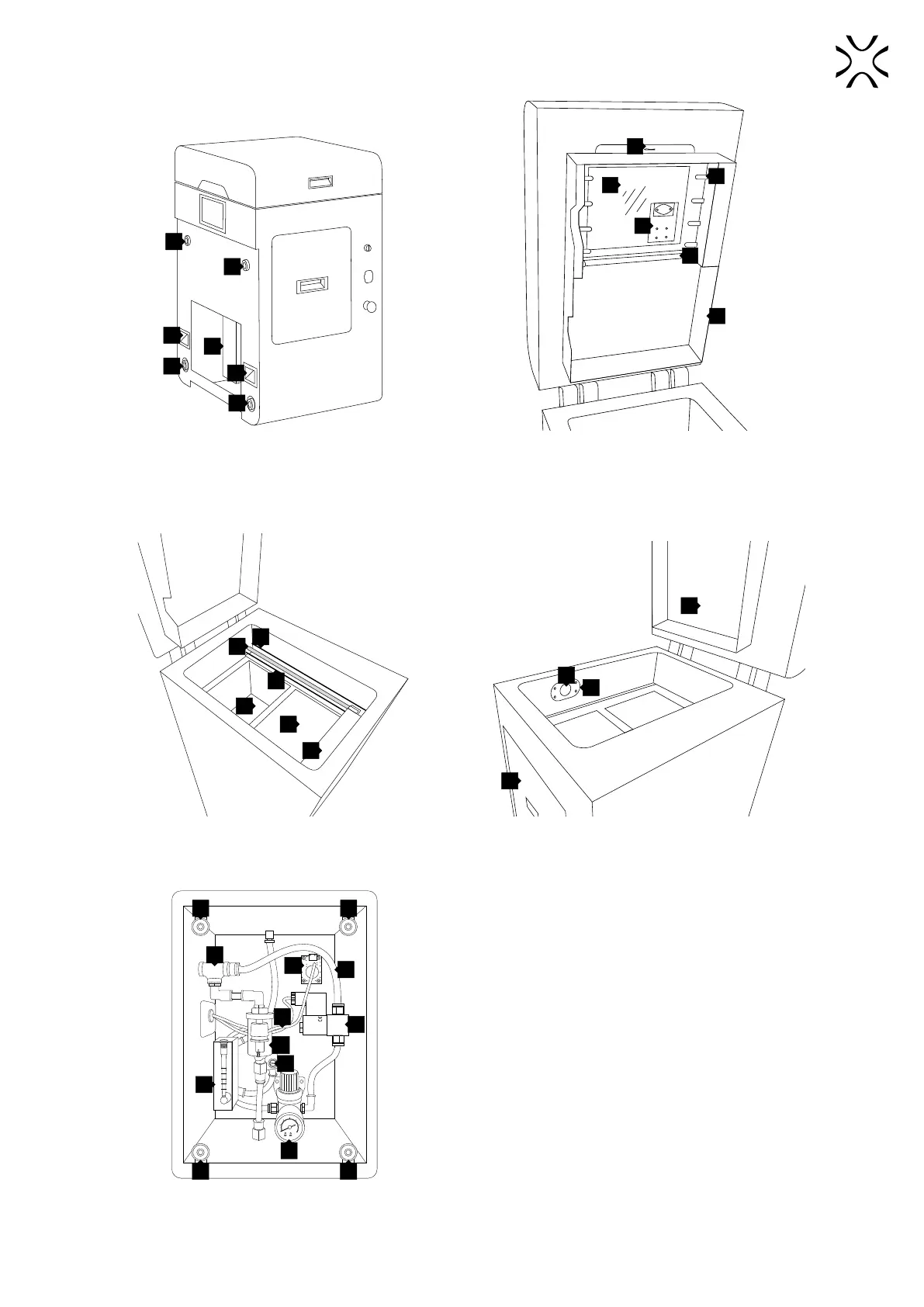

View of the printer without a front panel.
16.Magnetic fasteners / 17.Front holders /
18.Service area under BEDs
View of the printer Heating module.
19.Split pin / 20.dedicated place for Laser Protective Glass
/ 21.Short Infrared heaters (white) four psc. on each side /
22.Laser module / 23. Long infrared heaters (red) /
24.Heating module
27
26
28
29
30
25
24
32
17
31
Front view of the printer’s Print Chamber.
25.Recoater drive unit cord / 26.Recoater guide bar / 27.Recoater
cord / 28.Feed Bed / 29.Print Bed / 30.Recoater
Back view of the printer’s Print Chamber.
31.Embedded camera (for Print Bed) /
32.Print Bed pyrometer behind Pyrometer Window Module
bar psi
10
8
6
4
2
AIR 20
o
C 1atm Nl/min
EVI 7/9 24V DC 4.8W 200mA 100% ED IP 65
41
37
41
34
38
36
35
42
39
41
40
33
41
View of the chamber with nitrogen installation.
33.T-type push-in tting with a pressure sensor /
34.Oxygen level sensor / 35.Pneumatic tubings /
36.Pneumatic solenoid valve /
37.Pressure regulator with built-in manometer /
38.Rotameter / 39.Filter air dehydrator / 40.Cable /
41.Magnetic fasteners / 42.Throttle-return valve
