SBOX-2300 / VBOX-3130 Manual
12

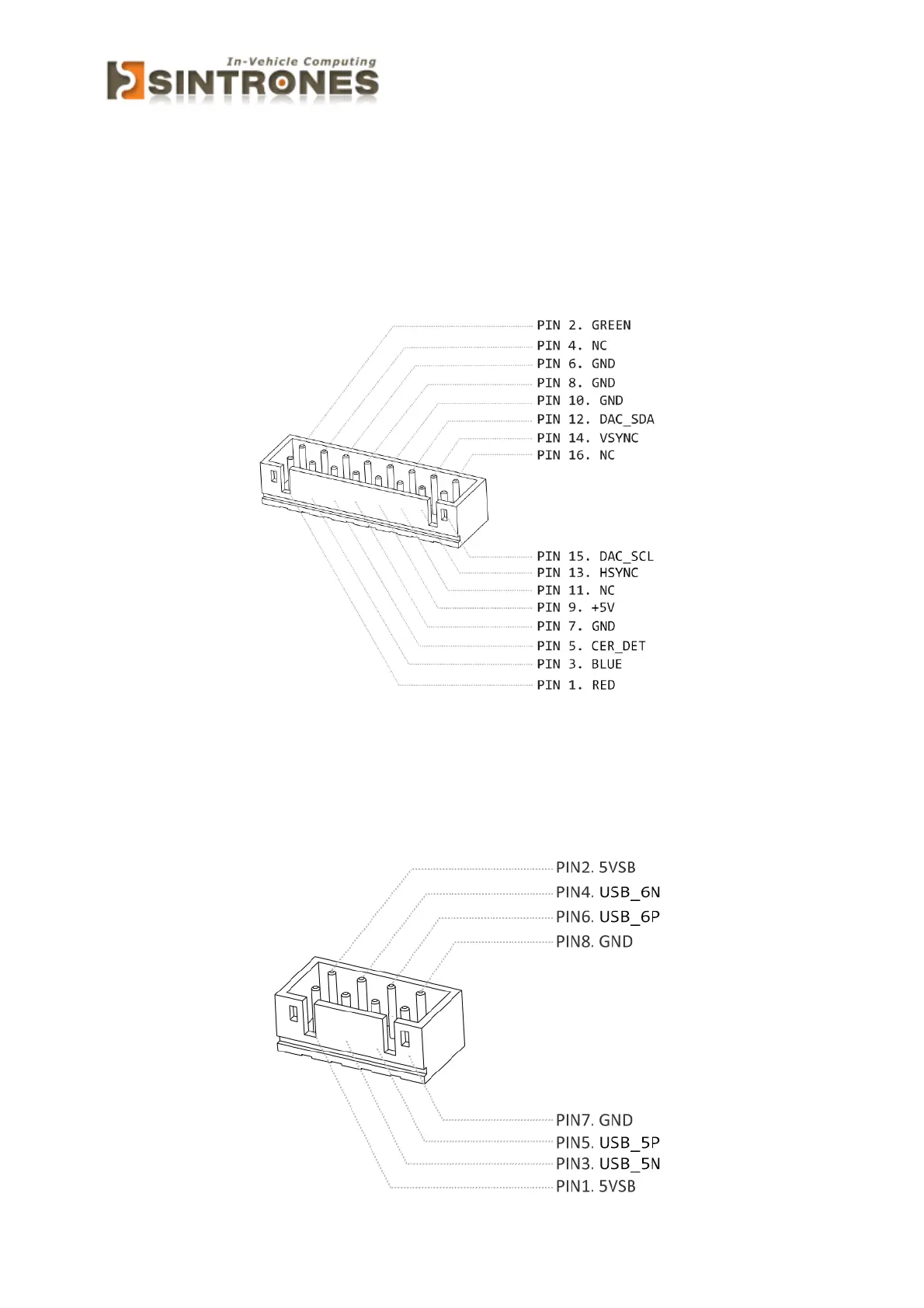

INTERNAL CONNECTOR
VGA Connector
Connectorlocation:
VGA1
Connectorsize: 2X8=16Pin
Connectortype:JST‐2.0mm‐M‐180
USB Connector
Connectorlocation:
USB2
Connectorsize: 2X4=8Pin
Connectortype:JST‐2.0mm‐M‐180
