SBOX-2300 / VBOX-3130 Manual
15

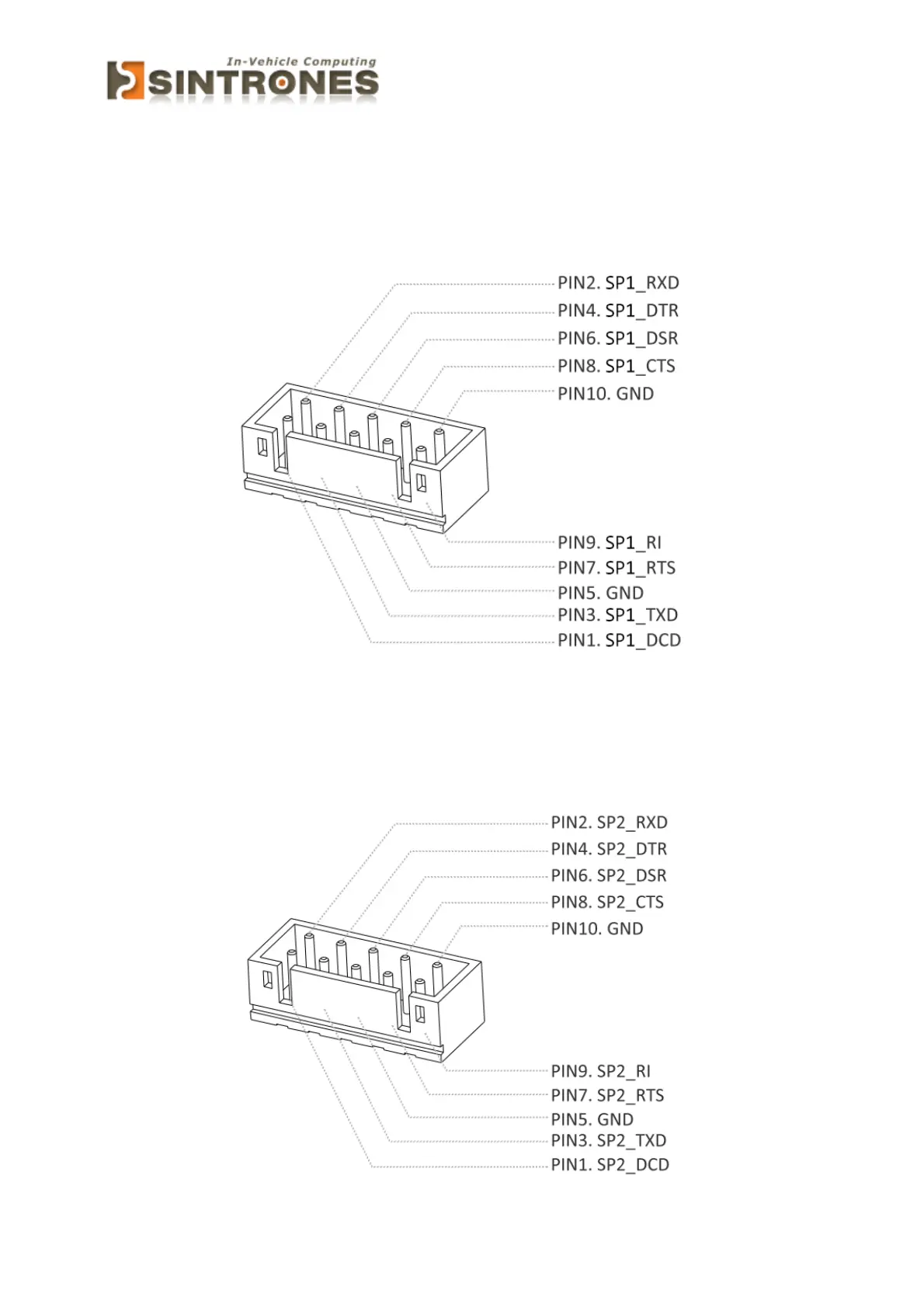

COM Port Connector
Connectorlocation:
COM1
Connectorsize: 2X5=10Pin
Connectortype:JST‐2.0mm‐M‐180
Connectorlocation:
COM2
Connectorsize: 2X5=10Pin
Connectortype:JST‐2.0mm‐M‐180
