Installing Memory

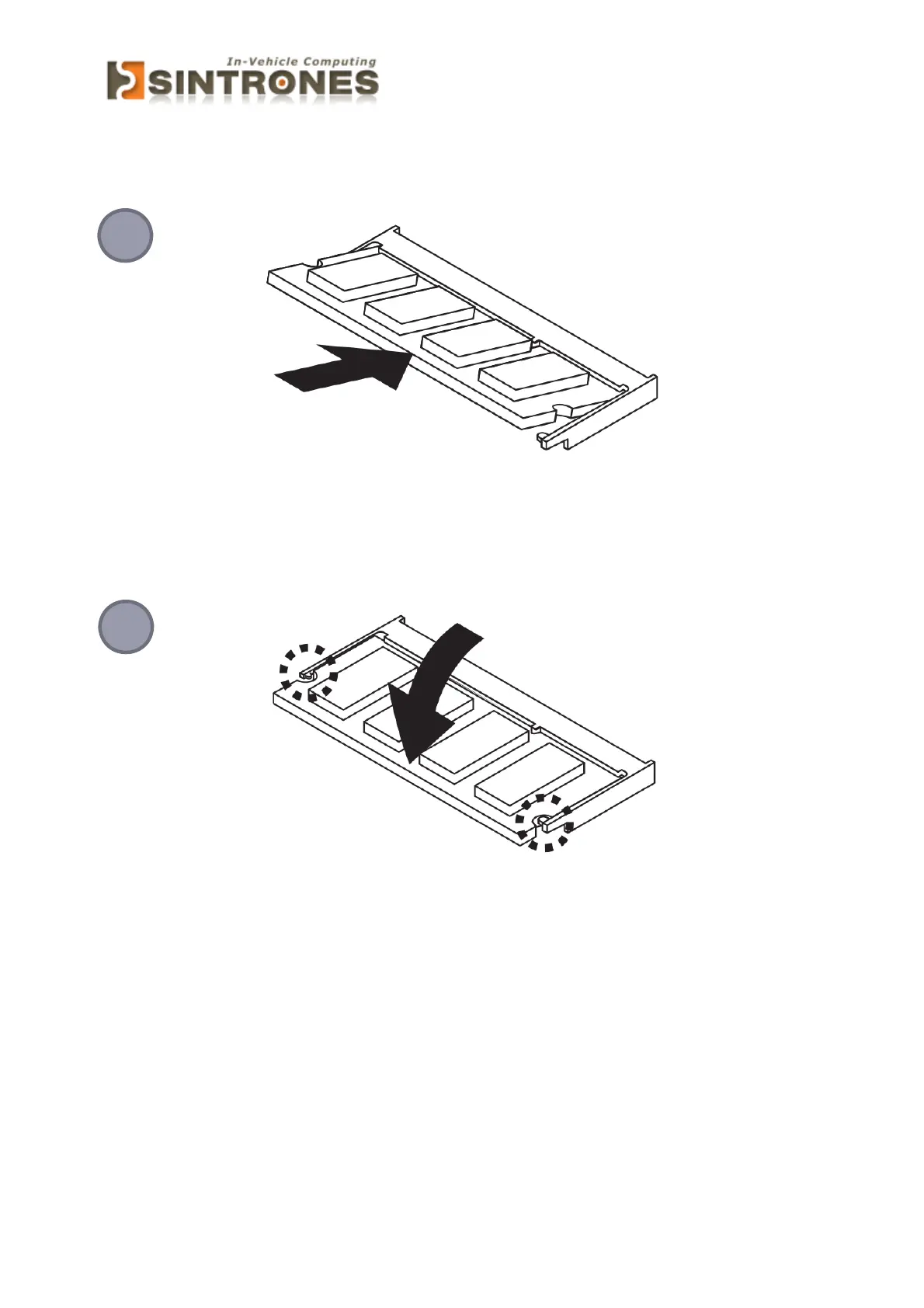

HoldtheMemorywithitsnotchalignedwiththeMemorysocketoftheboardand
insertitata30‐degreeangleintothesocketasfigure1.
PressdownontheMemorysothatthetabsofthesocketlockonbothsidesofthe
moduleasfigure2.





2
1
