SBOX-2300 / VBOX-3130 Manual
14

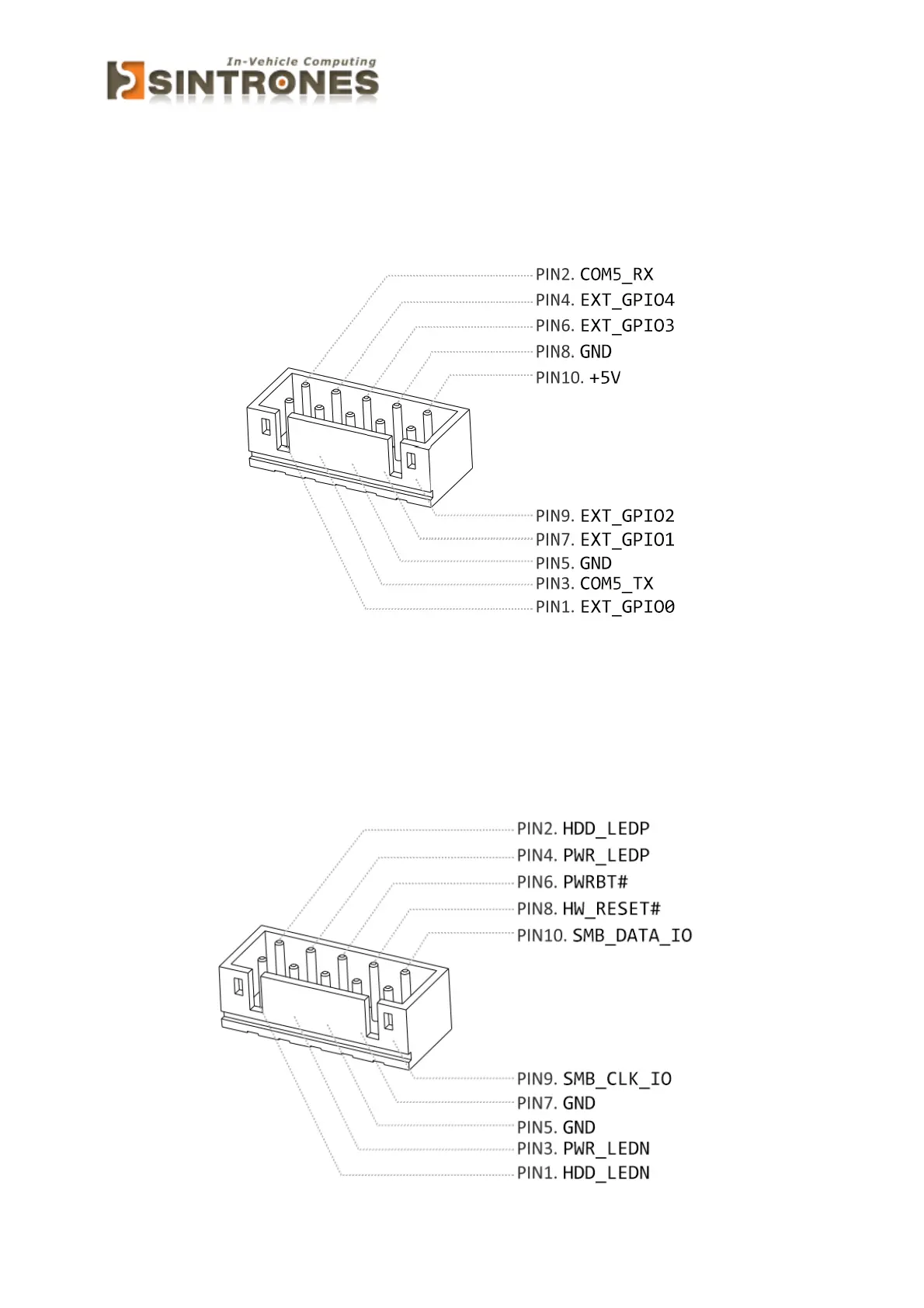

UART and GPIO Connector
Connectorlocation:
UART1
Connectorsize: 2X5=10Pin
Connectortype:JST‐2.0mm‐M‐180
LED Connector
Connectorlocation:
LED1
Connectorsize: 2X5=10Pin
Connectortype:JST‐2.0mm‐M‐180
