SBOX-2300 / VBOX-3130 Manual
19
Connectorlocation:

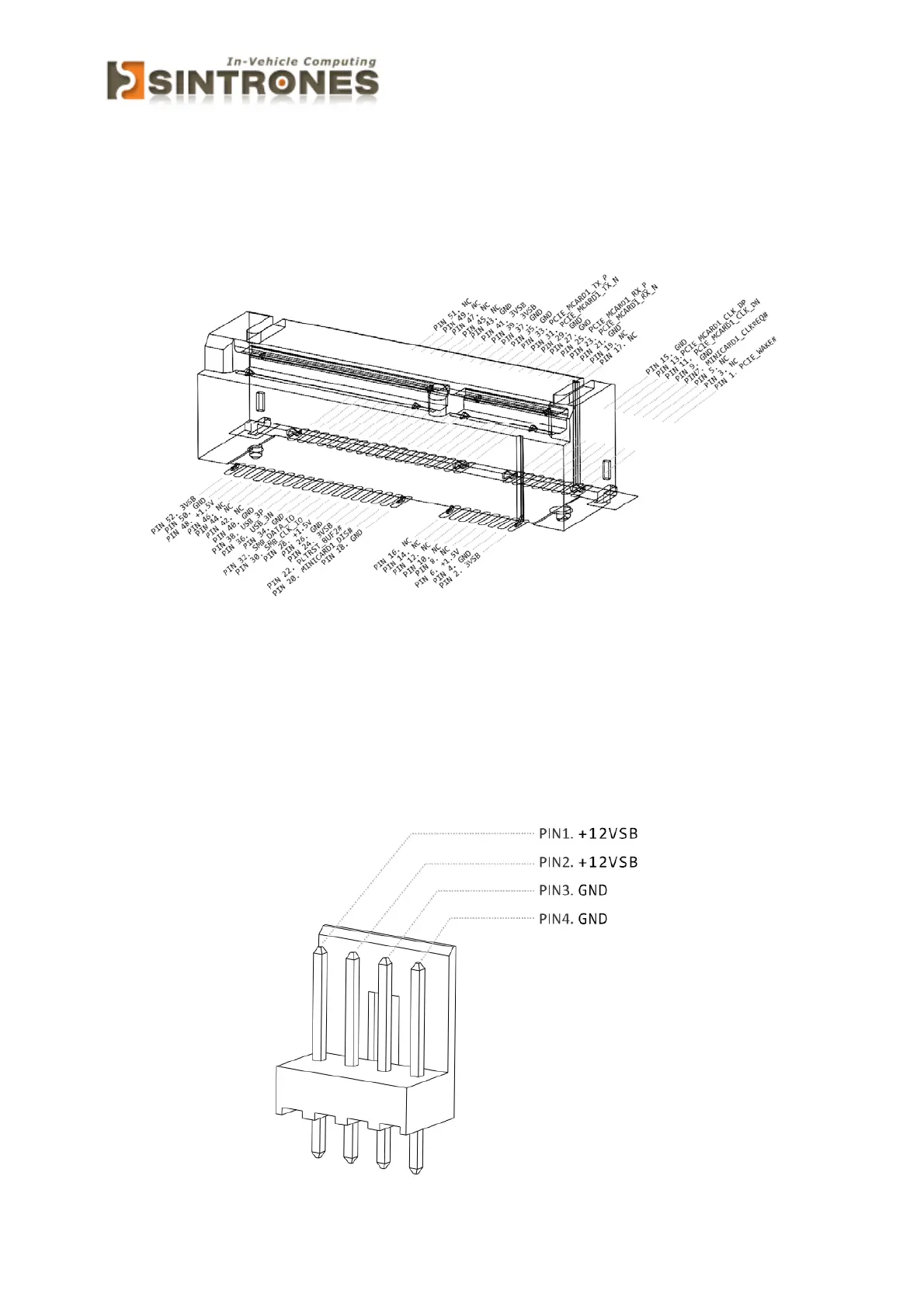

MINICARD2
Connectorsize: 2X26=52Pin
Connectortype:MINIPCIECON9.2mmH
Power Input Connector
Connectorlocation:
SPWR1
Connectorsize: 1X4=4Pin
Connectortype:WAFER2.54mmM180
