Installing MINI PCIe Expansion Card (MINICARD1)

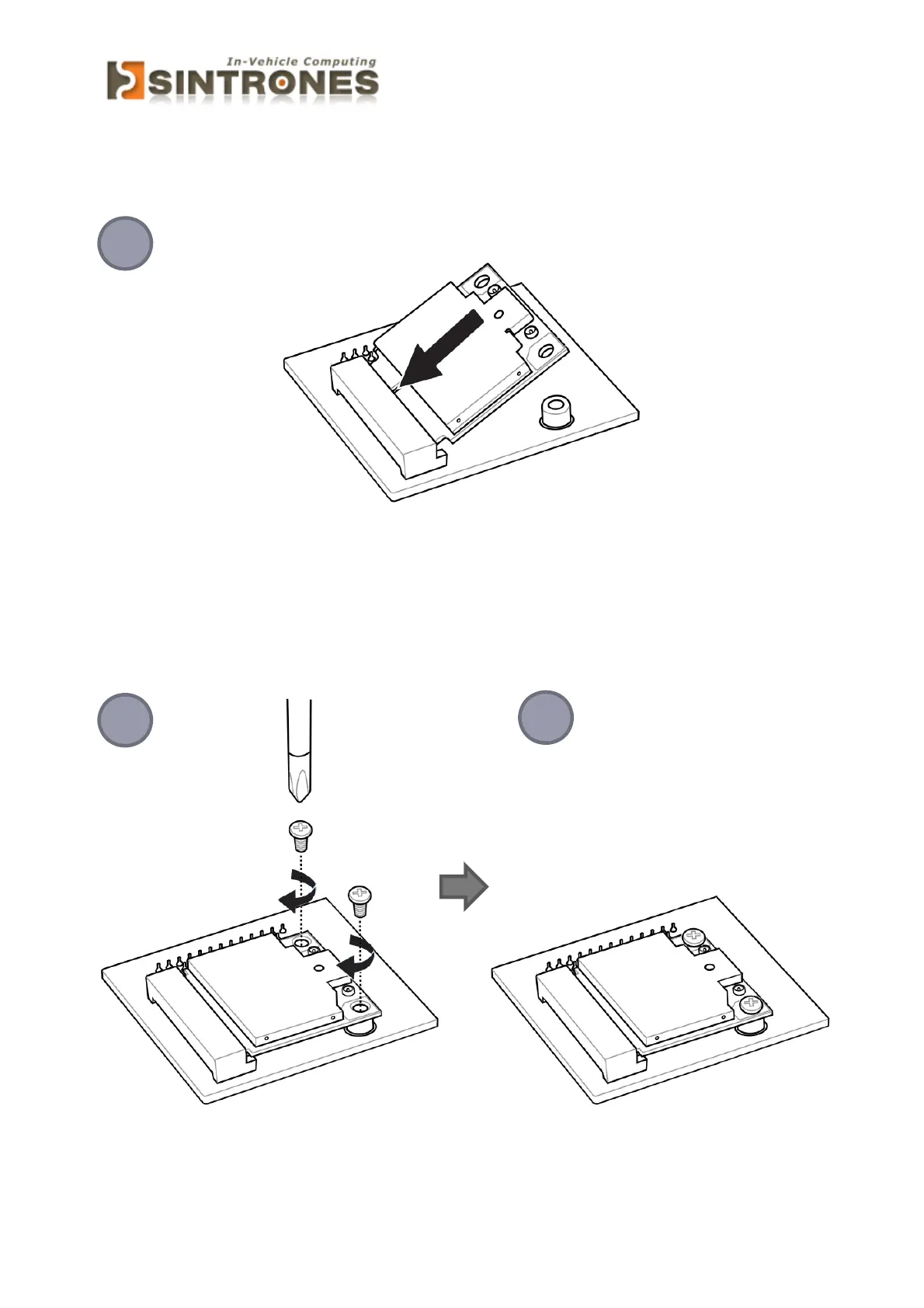

HoldtheModulewithitsnotchalignedwiththesocketoftheboardandinsertitata
30‐degreeangleintothesocketasshowninthepicture.



Securethecardwithscrew(s)asfigure2andfinishasfigure3.
1
2
3
