11
WARNING! It is the responsibility of the owner and the operator to read, understand
and comply with the following:
You must check all electrical products, before use, to ensure that they are safe.
You must inspect power cables, plugs, sockets and any other connectors for wear or
damage.
You must ensure that the risk of electric shock is minimised by the installation of appro-
priate safety devices; A residual current circuit Breaker (RCCB) should be incorporated
in the main distribution board. We also recommend that a residual current device
(RCD) is used. It is particularly important to use an RCD with portable products that are
plugged into a supply which is not protected by an RCCB. If in any doubt consult a
qualified electrician.

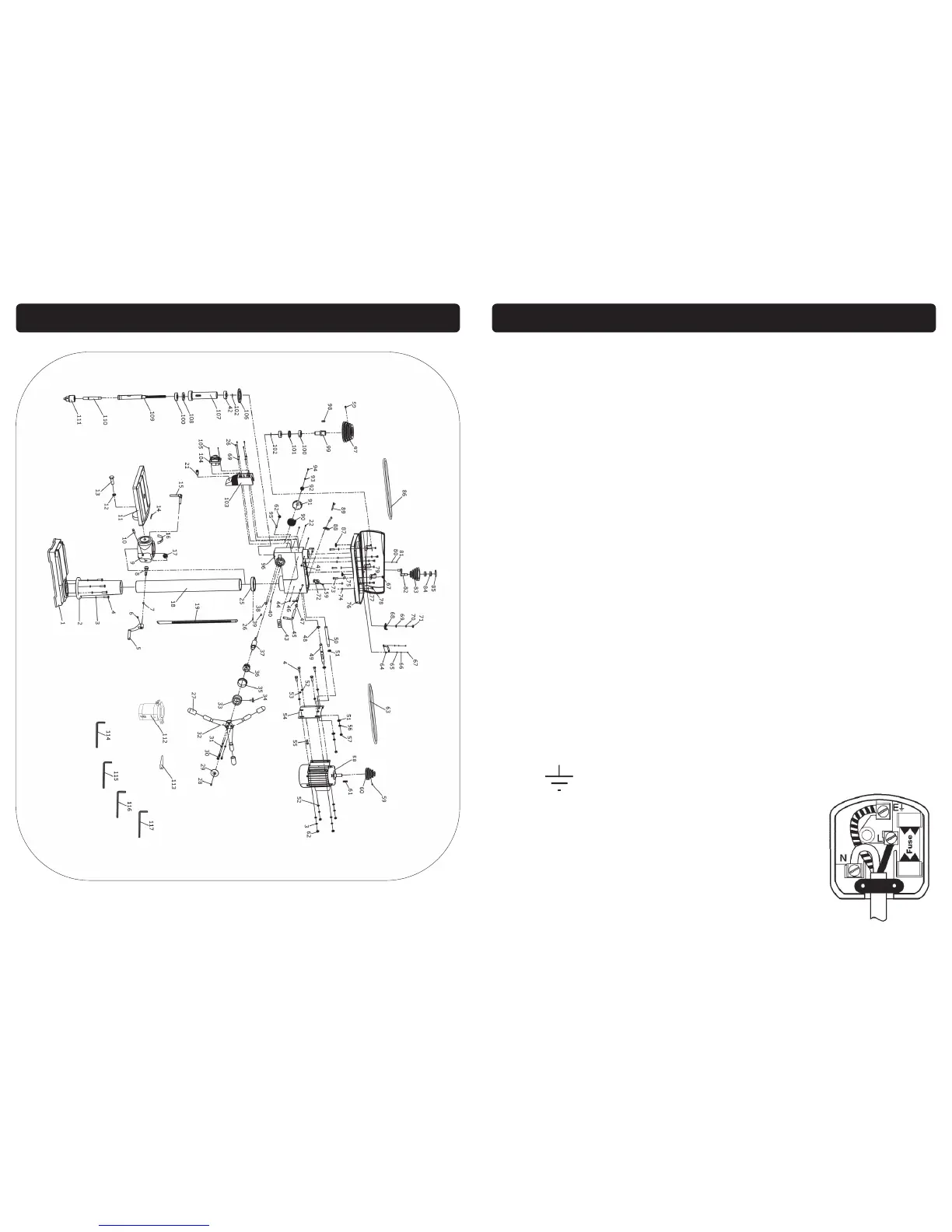

Connecting to the power supply:
These SIP drills (01700-01707) are fitted with a standard 230v ~ 13 amp type plug. Be-
fore using the drill, inspect the mains lead and plug to ensure that neither are dam-
aged. If any damage is visible have the drill inspected / repaired by a suitably quali-
fied person. If it is necessary to replace the plug a heavy duty impact resistant plug
would be preferable.
Yellow / green Earth
Blue Neutral
Brown Live
As the colours of the wires may not correspond with the markings in your plug, pro-
ceed as follows: The wire which is coloured blue, must be connected to the terminal
marked with N or coloured black. The wire which is coloured brown, must be connect-
ed to the terminal, which is marked L or coloured red. The wire which is coloured yel-
low / green should be connected to the terminal which is coloured the same or
marked
Always secure the wires in the plug terminal carefully and tightly.
Secure the cable in the cord grip carefully.
The wires for the plug are coloured in the following way:
ELECTRICAL CONNECTION
