23
OPERATING INSTRUCTIONS….cont

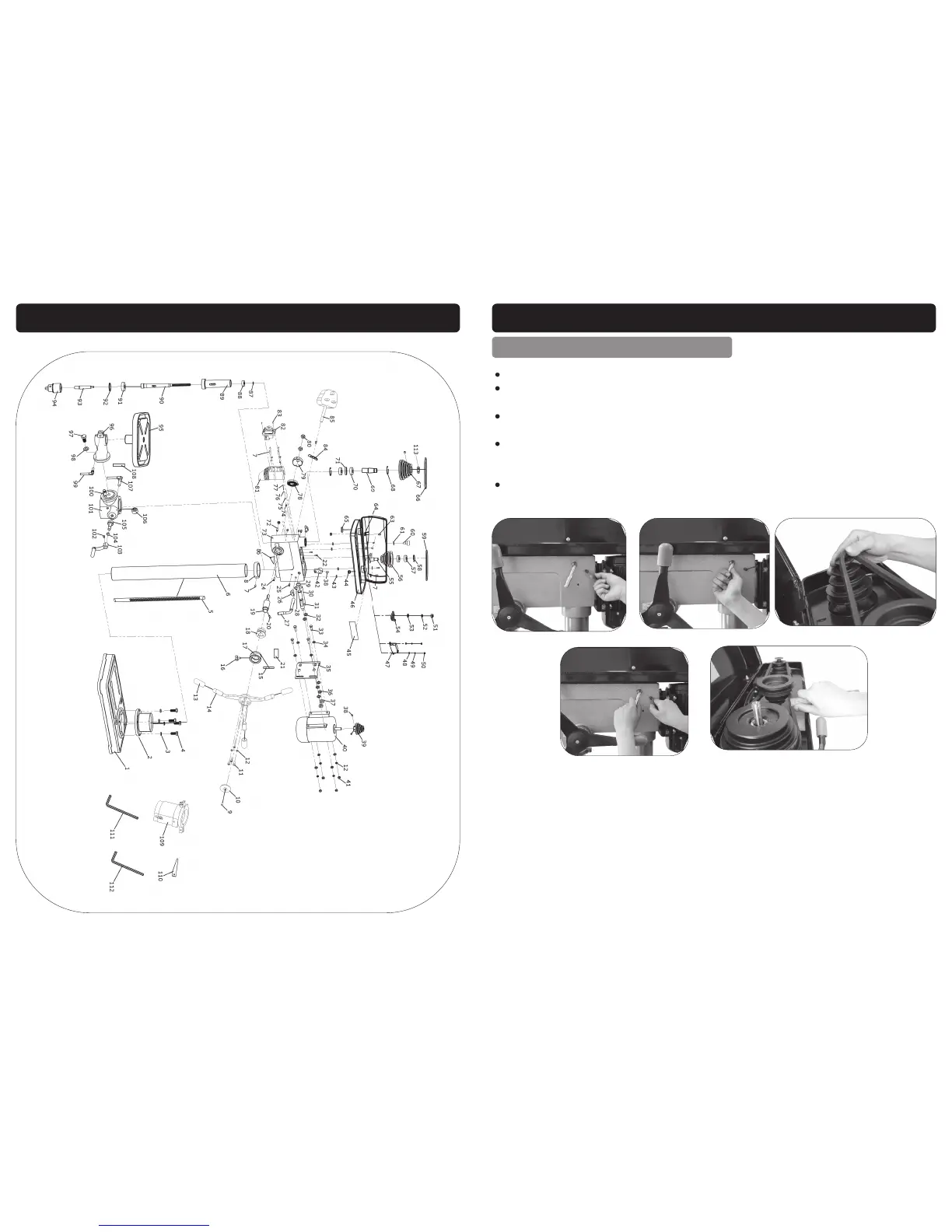

ADJUSTING THE SPEED - ALL OTHER MODELS
Release the belt tension locks located on either side of the main housing (025).
Once the tension is released, the belt tension handle can be used to move the
motor pulley closer to the idler pulley (026).
The belt is removed by lifting it over the lip of the pulley while rotating the pulley
simultaneously (027).
After re-adjusting the belts, use the belt tension handle to move the motor pulley
further away from the idler pulley. When the desired position is achieved use the
belt tension locks to secure the pulleys in place (028).
Proper belt tension is achieved when the measured deflection (by pushing in the
centre of the belt) is approx. ½” (029).
025
026
027
028
029
