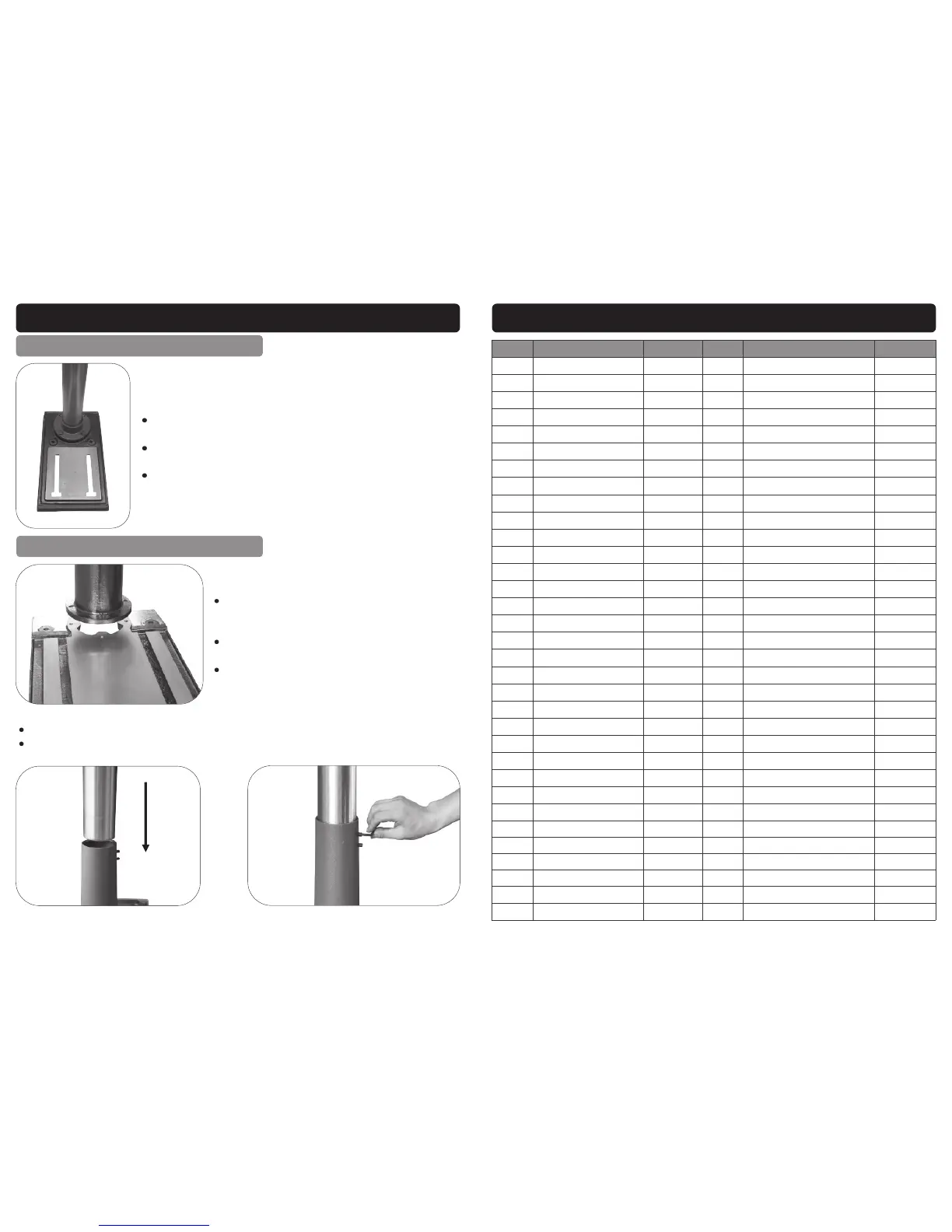

ASSEMBLY INSTRUCTIONS
Line up the 4 holes on the bottom of the column with those
on the base.
Screw the 4 bolts supplied through the column and into the
base.
Fully tighten to secure (001).
FIT THE COLUMN TO THE BASE - BENCH DRILL
FIT THE COLUMN TO THE BASE - FLOOR DRILL
Line up the 4 holes on the bottom of the
column support with those on the base
(002).
Screw the 4 x bolts supplied through the col-
umn support and into the base.
Fully tighten to secure.
Slide the column into the column support (003).
Secure in place by tightening the 2 grub screws (004).
001
002
003 004
45
PARTS LIST - 01705
Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.
1. Base WD01-00863 34. Washer M8 WD01-00672
2. Column flange WD01-00864 35. Motor plate WD01-00874
3. Spring washer M10 WD01-00795 36. Spring washer M12 WD01-00676
4. Bolt (M10 x 25) WD01-00796 37. Nut M12 WD01-00821
5. Rack WD02-00282 38. Grub screw (M8 x10) WD01-00689
6. Column WD02-00283 39. Motor pulley WD01-00876
7. Grub screw (M6 x 12) WD01-00740 40. Motor WD01-00877
8. Rack collar WD01-00799 41. Nut M8 WD01-00687
9. Screw (M6 x 16) WD01-00708 42. Cam assembly WD01-00909
10. Handle cap WD01-00800 43. Washer WD01-00878
11. Screw (M8 x 20) WD01-00801 44. Protecting ring WD01-00839
12. Spring washer M8 WD01-00673 45. Speed label WD01-00879
13. Handle knob WD01-00802 46. Pulley cover WD01-00880
14. Handle WD01-00803 47. Microswitch WD01-00706
15. Label WD01-00866 48. Washer M5 WD01-00881
16. Knob WD01-00867 49. Spring washer M5 WD01-00882
17. Scale WD01-00805 50. Nut M5 WD01-00697
18. Connection WD01-00806 51. Nut M6 WD01-00710
19. Pinion shaft WD01-00809 52. Spring washer M6 WD01-00707
20. Roll pin (5 x 16) WD01-00868 53. Washer M6 WD01-00702
21. Warning label WD01-00685 54. Microswitch holder WD01-00709
22. Screw (M5 x 10) WD01-00726 55. Eccentric shaft WD01-00883
23. Spindle pulley nut (M24 x 1.5) WD01-00907 56. Centre pulley WD01-00884
24. Roll pin (5 x 25) WD01-00869 57. Bearing 6202 WD01-00771
25. Roll pin (6 x 18) WD01-00760 58. Circlip WD01-00831
26. Locking handle WD01-00870 59. Belt O-565 WD01-00833
27. Belt tension handle WD01-00812 60. Knurled screw WD01-00885
28. Circlip WD01-00813 61. Circlip WD01-00704
29. Circlip WD01-00871 63. Screw (M5 x 16) WD01-00838
30. Shaft WD01-00872 64. Mains lead clamp WD01-00700
31. Adjusting shaft WD01-00873 65. Protecting ring WD01-00770
32. Washer M12 WD01-00819 66. Belt O-678 WD01-00886
33. Bolt (M8 x 25) WD01-00695 67. Spindle pulley WD01-00887
