34

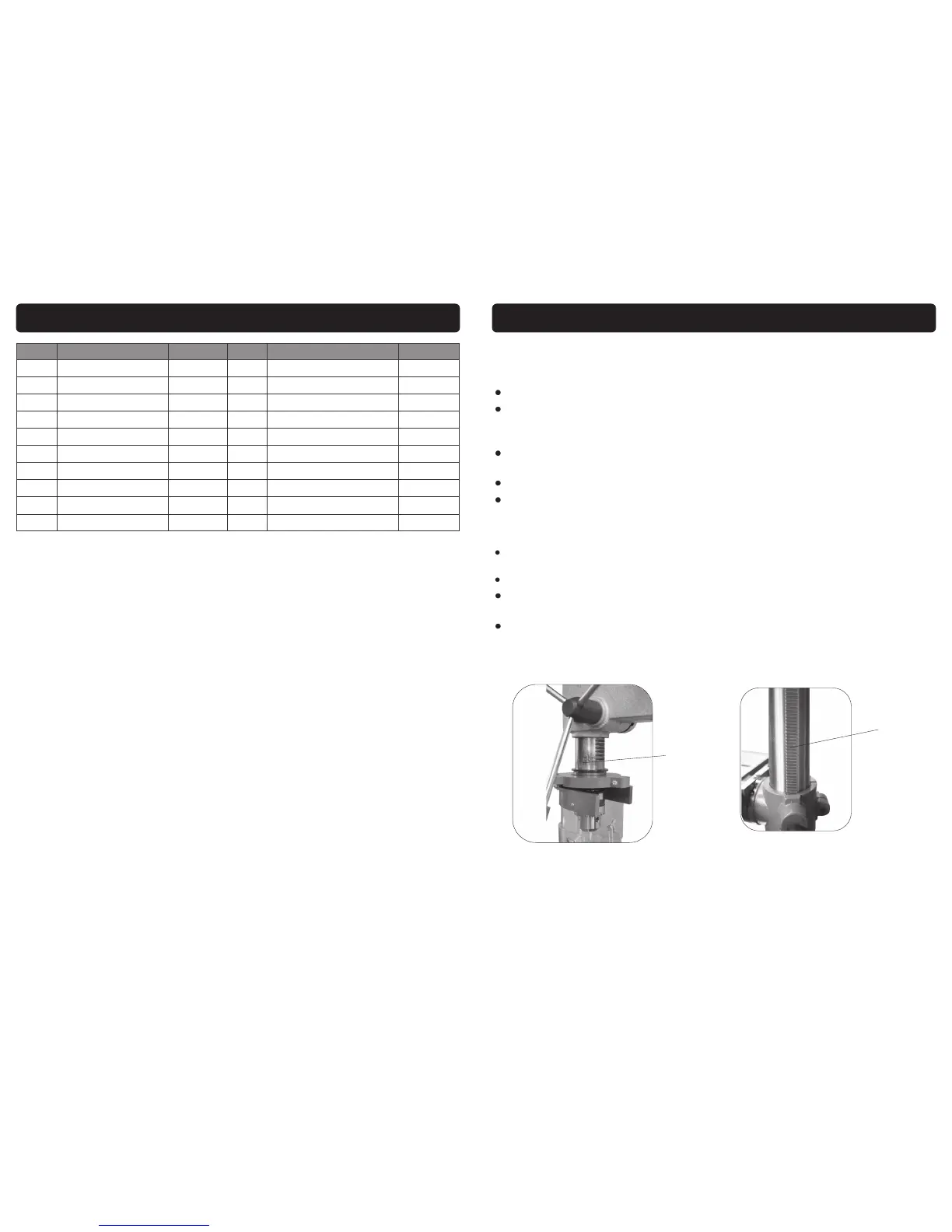

Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.
67. Switch box WD01-00784 77. Chuck guard 40mm 66609
68. Screw (M4 x 6) WD01-00723 78. Hex. wrench WD01-00790
69. Clip WD01-00724 79. Hex. wrench WD01-00737
70. Lock washer WD01-00725 80. Belt O-490 WD01-00791
71. Bearing 6201 WD01-00732 81. Centre pulley WD01-00792
72. Quill WD01-00785 82. Eccentric shaft WD01-00778
73. Washer WD01-00786 83. Nut M5 WD01-00697
74. Circlip WD01-00787 84. Screw (M6 x 16) WD01-00708
75. Spindle WD01-00788 85. Circlip WD01-00787
76. Chuck WD01-00789
27
Cleaning and maintenance of this drill is mainly common sense some points for guid-
ance are as follows:
Regularly check that all the fixing screws are tight.
The mains lead of the drill and any extension cord used should be checked fre-
quently for damage. If damaged, have the mains lead replaced by an authorised
service facility. Replace the extension cord as necessary.
Regularly check and clean out any dust etc. that may have gathered in the fan
housing of the motor.
After each use brush off any chippings etc. with a soft brush.
Regularly check the drive belt for wear; Replace if frayed or worn.
Lubrication:
MAINTENANCE
All bearings are packed with grease at the factory and require no further lubrica-
tion.
Periodically grease or oil all moving parts.
Periodically apply a thin coat of wax paste or light oil on the column, table and
base for lubrication and to help prevent corrosion.
Occasionally, lubricate the quill shaft assembly and rack with light oil if required
(039 & 040).
039
040
Quill Shaft
Rack
