ASSEMBLY STEPS
12
In this step, you will use:
Item 2:
8 - screws M 16 x 165 (5/8" x 6" 1/2)
Item 3:
8 - nuts M 16 (5/8")
Item 4:
4 - spring pin D 5 x 36
(D 1" 13/64 x 1" 27/64 )
Item 5:
4 - washers D 12-36 x 2.5 (D 1/2" - 1" 27/64 x 3/32")
Item 6:
4 - screws M 12 x 20 (1" 5/32" x 13/16")
Item 7:
2 - pins D 22 x 120 (D 7/8" x 4" 23/32)
Item 8:
2 - pins D 22 x 108 (D 7/8" x 4" 1/4)

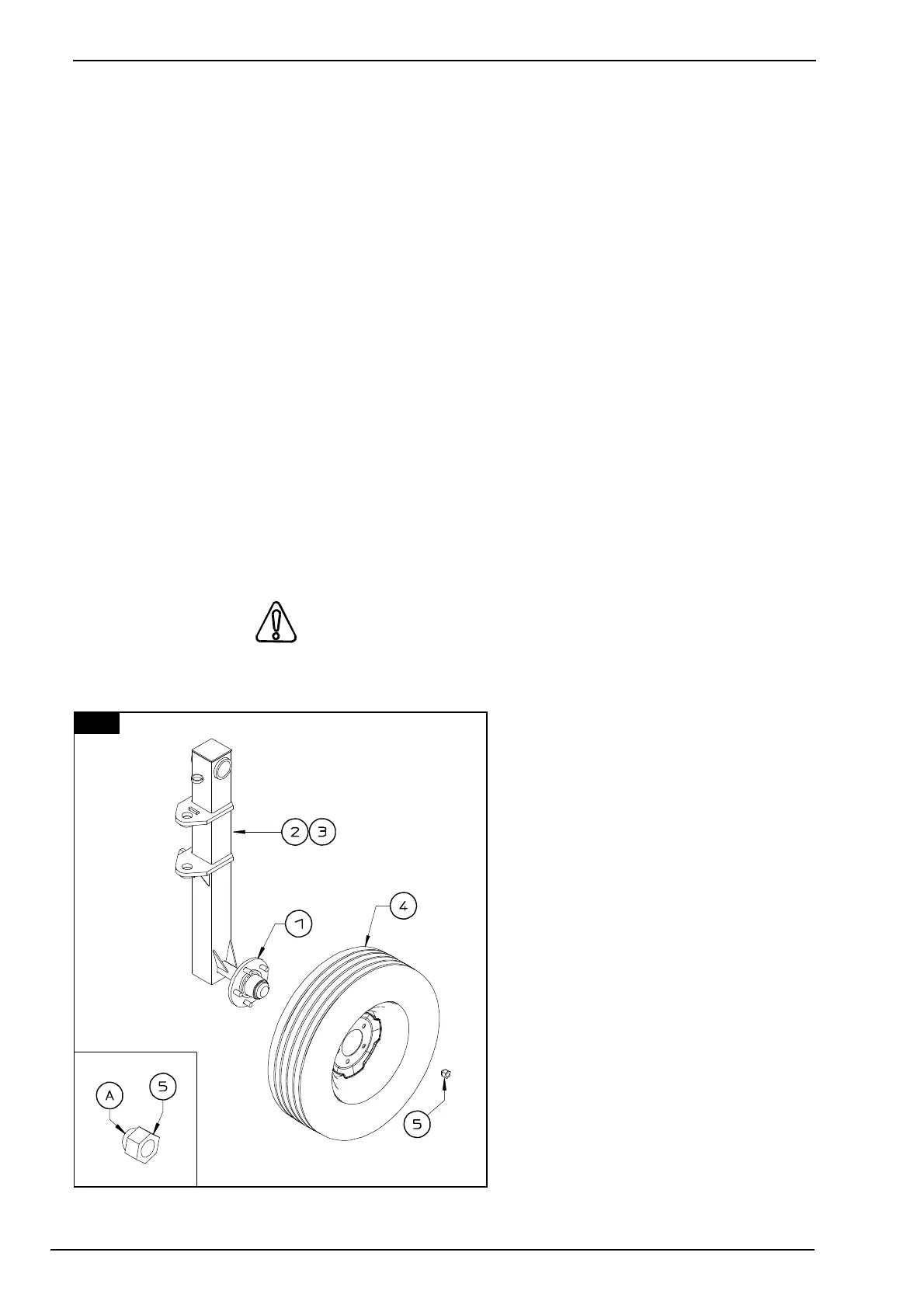

4. DANGER
Mount wheels 4 to hubs 1 (supports 2 & 3) using special nuts 5.
In this step, you will use:
Item 5:
10 - nuts M 16
(5/8"), fine pitch and spherical cap.
NOTE: the spherical side “A” of the
nut 5 must be always turned towars
the wheel rim flange.
4
