ASSEMBLY STEPS
14

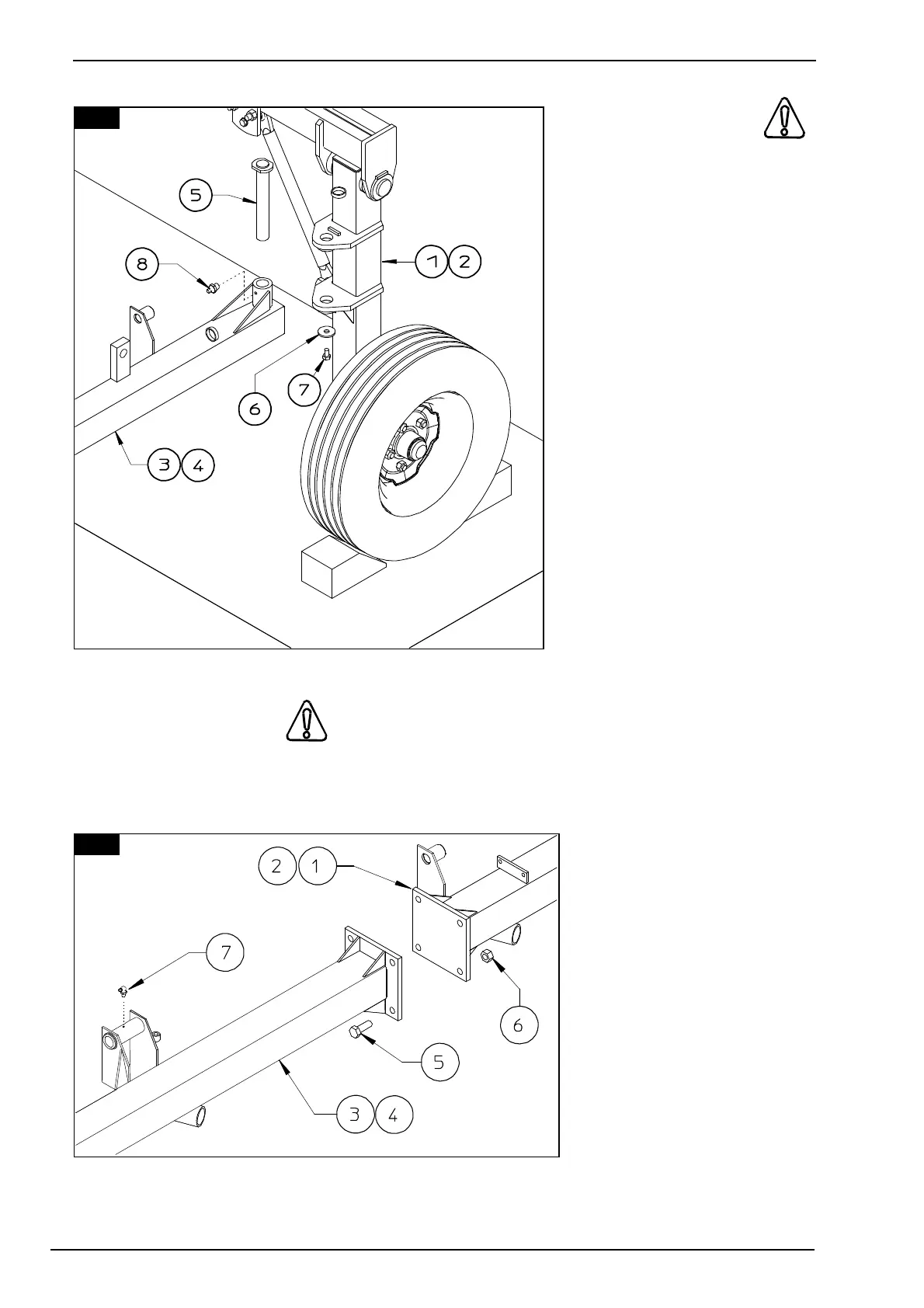

6. DANGER
Attach the rake wheel
sections 3 & 4 (LH - RH) to
supports 1 & 2 (LH - RH)
using pin 5, washer 6 and
screw 7. Attach grease nipple
8 in the proper hole.
In this step, you will use:
Item 5:
2 - pins D 35 x 242
(D 1" 3/8" x 9" 1/2 )
Item 6:
2 - washers D 12-40 x 4
(D 1/12" - 1" 9/16 x 5/32" )
Item 7:
2 - screws M 12 x 20
(15/32" x 13/16" )
Item 8:
2 - grease nipples M 8
(5/16")
7. ATTENTION
Attach sections 3 & 4 (LH -RH) to the initial sections 1 & 2 (LH - RH) using screws 5 and nuts 6.
Fit in every wheels pipe bushings the grease nipple 7.
In this step, you will use:
Item 5:
8 - screws M 16 x 45
(5/8" x 1" 3/4)
Item 6:
8 - nuts M 16
(5/8")
Item 7:
8/10 - grease nipples M
6x45°
(1/4")
7
6
