ASSEMBLY STEPS
15

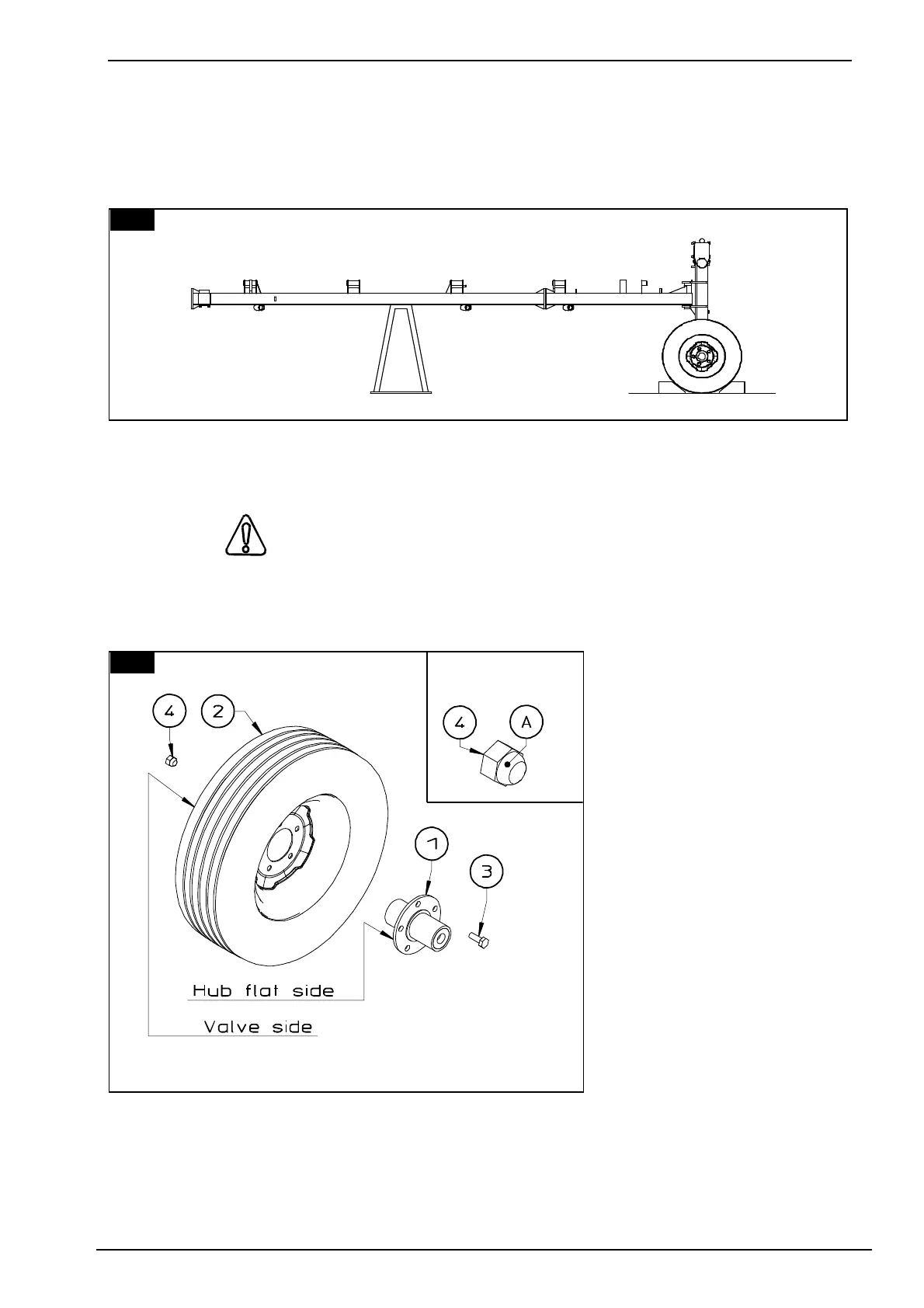

8.
When reaching this point, work with great caution, as the machine is not stable.
9. CAUTION
Attach hub 1 to wheel 2 using screws 3 and nuts 4. Be sure to follow the indications in the
illustration during mounting.
In this step, you will use:
Item 3:
10 - screws M 16 x 1.5 x 40
(5/8" x 1" 19/32" fine pitch)
Item 4:
10 - nuts M 16 x 1.5
(5/8" fine pitch).
NOTE: the spherical side “A”
off the nut 7 must be always
turned towars the wheel rim
flange.
9
8
