sitrex MX 8 - Page 22

ASSEMBLY STEPS
20

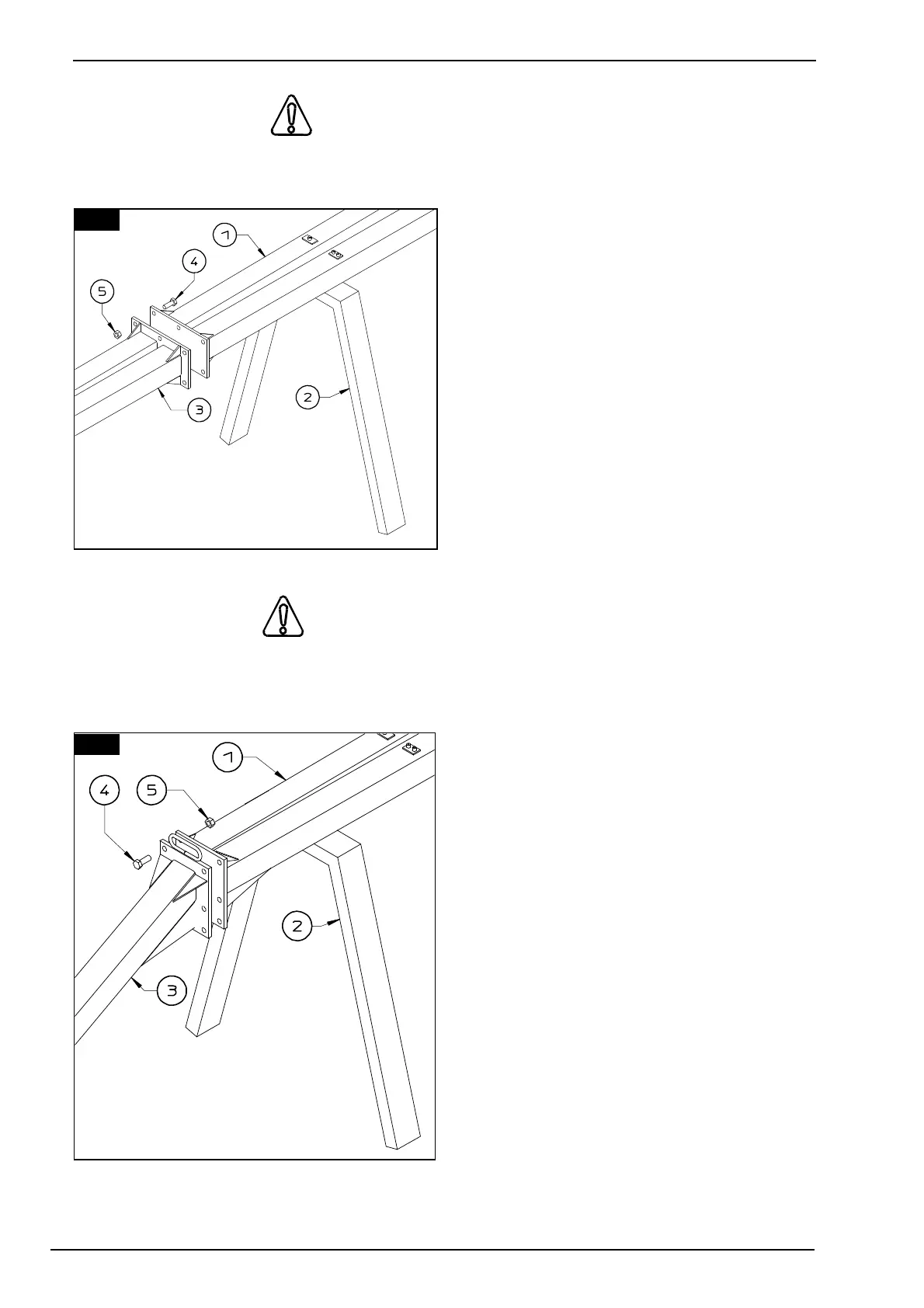

17. DANGER
The rear drawbar section 1 must be stable, so it must be held either by a jack or hoist of
suitable capacity or support 2 (weight 110
kg, 245 lbs.). Attach drawbar section 3
(weight 65 kg, 145 lbs.) to drawbar section
1 using screws 4 and nuts 5.
In this step, you will use:
Item 4:
6 - screws M 16 x 45
(5/8" x 1" 3/4)
Item 5:
6 - nuts M 16
(5/8")
18. DANGER
The center drawbar section 1 connected to the rear drawbar section must rest on support 2 or
be supported by a jack or hoist of suitable capacity (weight of drawbar sections: 175 kg, 385
lbs.)
Attach the front drawbar section 3 to the
center drawbar section using screws 4 and
nuts 5.
In this step, you will use:
Item 4:
6 - screws M 16 x 45
(5/8" x 1" 3/4")
Item 5:
6 - nuts M 16
(5/8")
