ASSEMBLY STEPS
21
19. ATTENTION

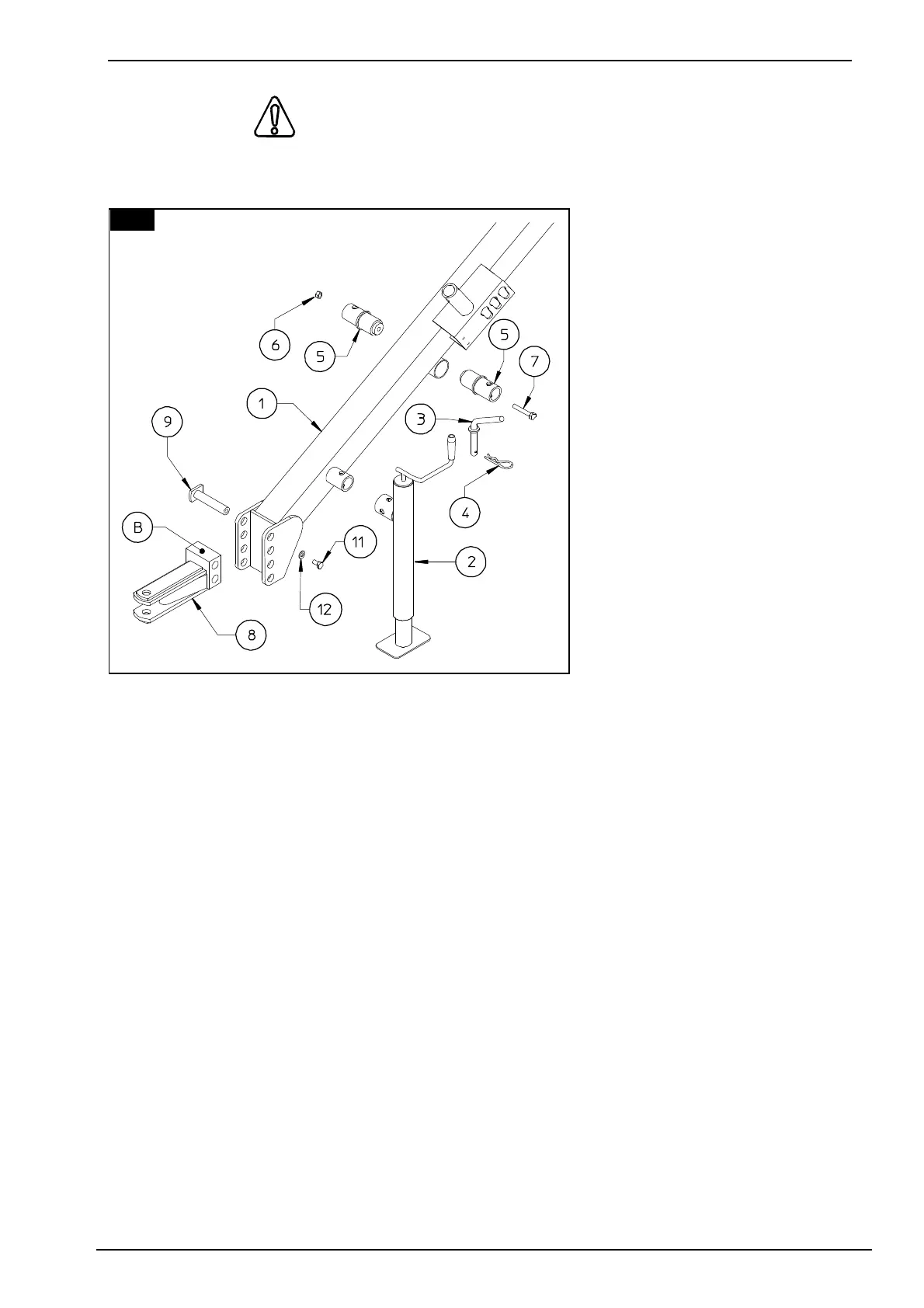

Attach the parking stand 2 to the drawbar 1, fastening it with pin 3 and clip 4. The transport
position of the parking stand is
described on page 35. Insert
bushings 5 in the correct holes
in drawbar 1, fastening them
with screw 7 and nut 6. Insert
hitch 8 in the end of the drawbar
and fasten with pins 9, washers
10 and nuts 11.
NOTE: Hitch 8 should be
attached with flange B towards
the top. To choose which hole
should be used, see page 35.
In this step, you will use:
Item 3:
1 - pin D 15 x 85
(D 19/32" x 3" 11/32)
Item 4:
1 - clip D 3
(D 1/8")
Item 7:
1 - screw M 12 x 60
(15/32" x 2" 13/16)
Item 6:
1 - nut M 12
(15/32")
Item 9:
2 - pin D 25 x 124
(D 1" x 5")
Item 11:
2 - screw M 12 x 20
(15/32" x 13/16")
Item 12:
2 - washer D 12-36 x 2.5
(D 15/32" - 1" 13/32 x 3/32")
