sitrex MX 8 - Page 31

ASSEMBLY STEPS
29
Item 6:
10/8 - spring pins D 8 x 50
(D 5/16" x 2")
Item 9:
60/48 - screws M 10 x 25
(25/64" x 1")
Item 10:
60/48 - grower washers D 10.5-17 x 2.2
(D 27/64"- 11/16" x 3/32")
Item 11:
60/48 - nuts M 10
(25/64").
27. CAUTION

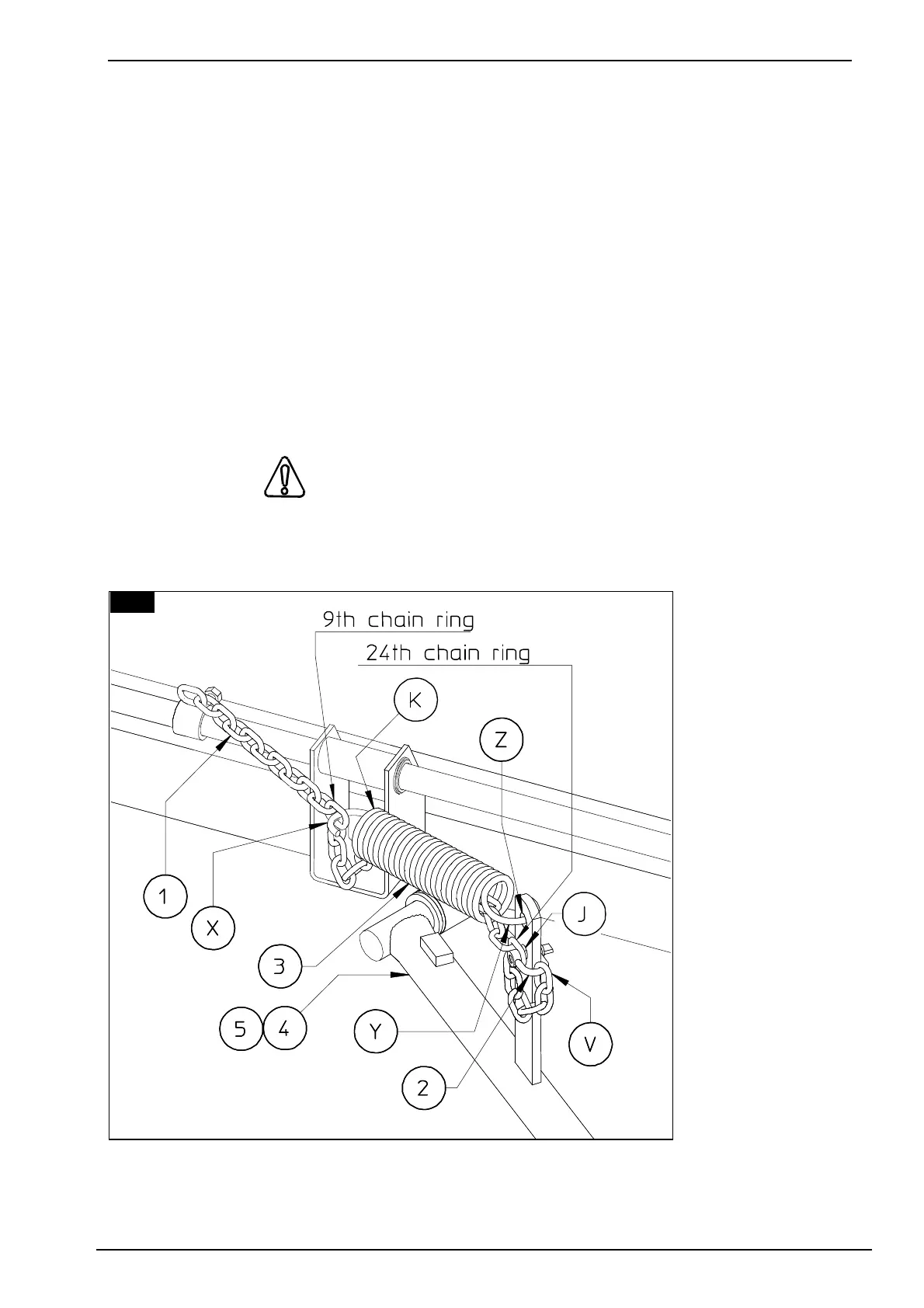

NOTE: The spring hook X is more closed than spring hook Y. Hook the 6-7th link of chain 1 on
fork assy 2 and then hook it on hook X of spring 3. Hook the 25th link of chain 1 (5th from the
end) on fork assy
2 and the link it
into hole J of arms
4 & 5. Hook Y of
spring 3 must also
be hooked into
hole Z of arms 4 &
5 (RH - LH).
NOTE: that given
before is a
standard
regolation of the
chain 1
In this step, you
will use:
Item 2:
8/10 - fork assy D
8
(5/16”)
27
