ASSEMBLY STEPS
32

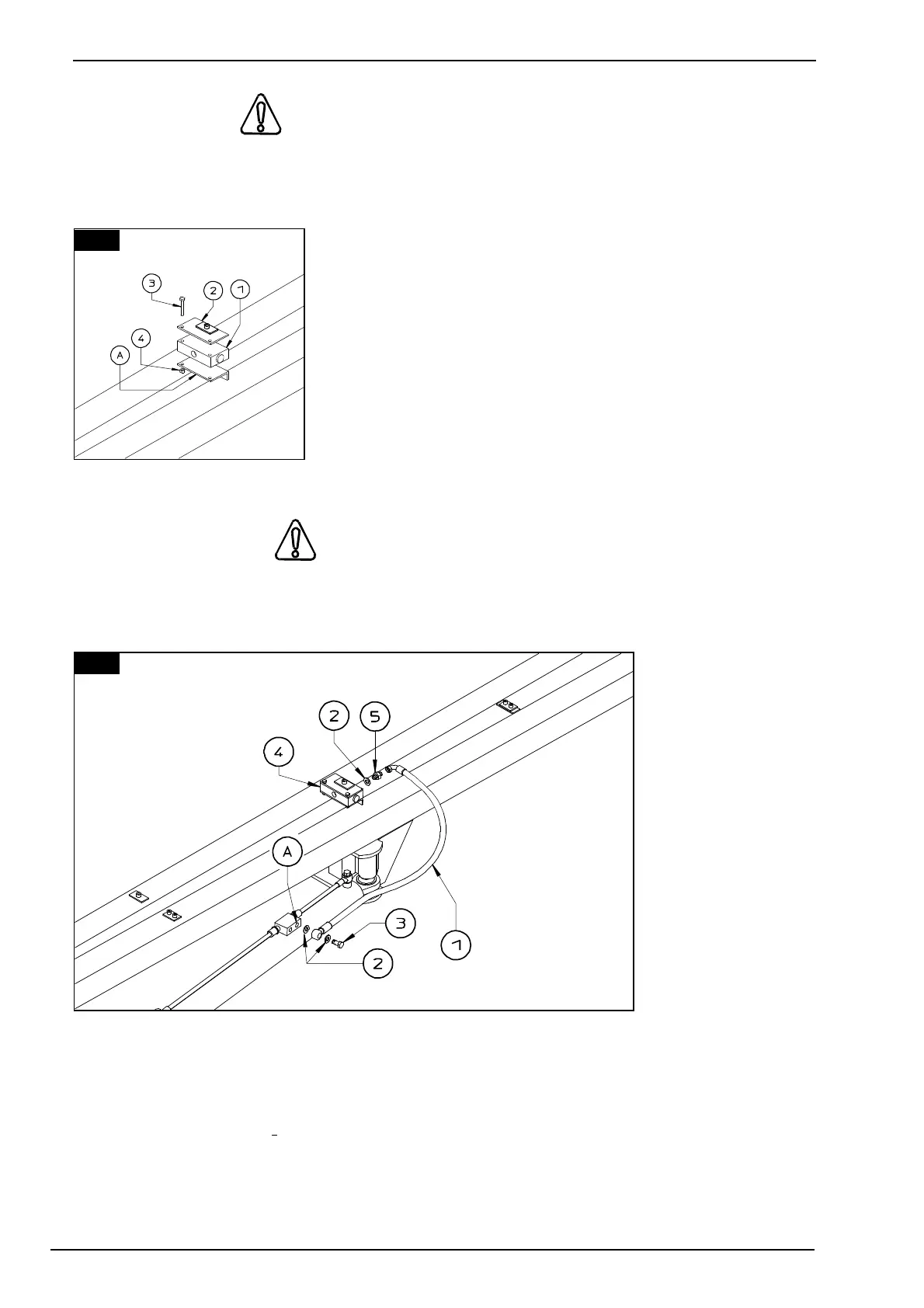

30. CAUTION
Fit the flow divider 1 and the hose collar plate 2 to support A on the drawbar. Fasten in place
with screws 3 and nuts 4.
In this step, you will use:
Item 3:
2 - screws M 6 x 60
(15/64" x 2" 13/16")
Item 4:
2 - nuts M 6
(15/64").
31. CAUTION
Attach the eye of hose 1 to hole A of the cylinder valve and fasten it with washers 2 and nipple
3. Attach washer 2 and nipple 5 to the rear of flow divider 4. Connect the curved end of hose 1
to nipple 5.
Repeat this step
to the other side.
In this step, you will use:
Item 1:
2 - 3/8" hoses, length 720
(3/8" x 2' 4" 11/32")
Item 2:
6 - copper washers 3/8"
Item 3:
2 - screws 3/8"
Item 5:
2 - nipples 3/8" - 3/8"
30
31
