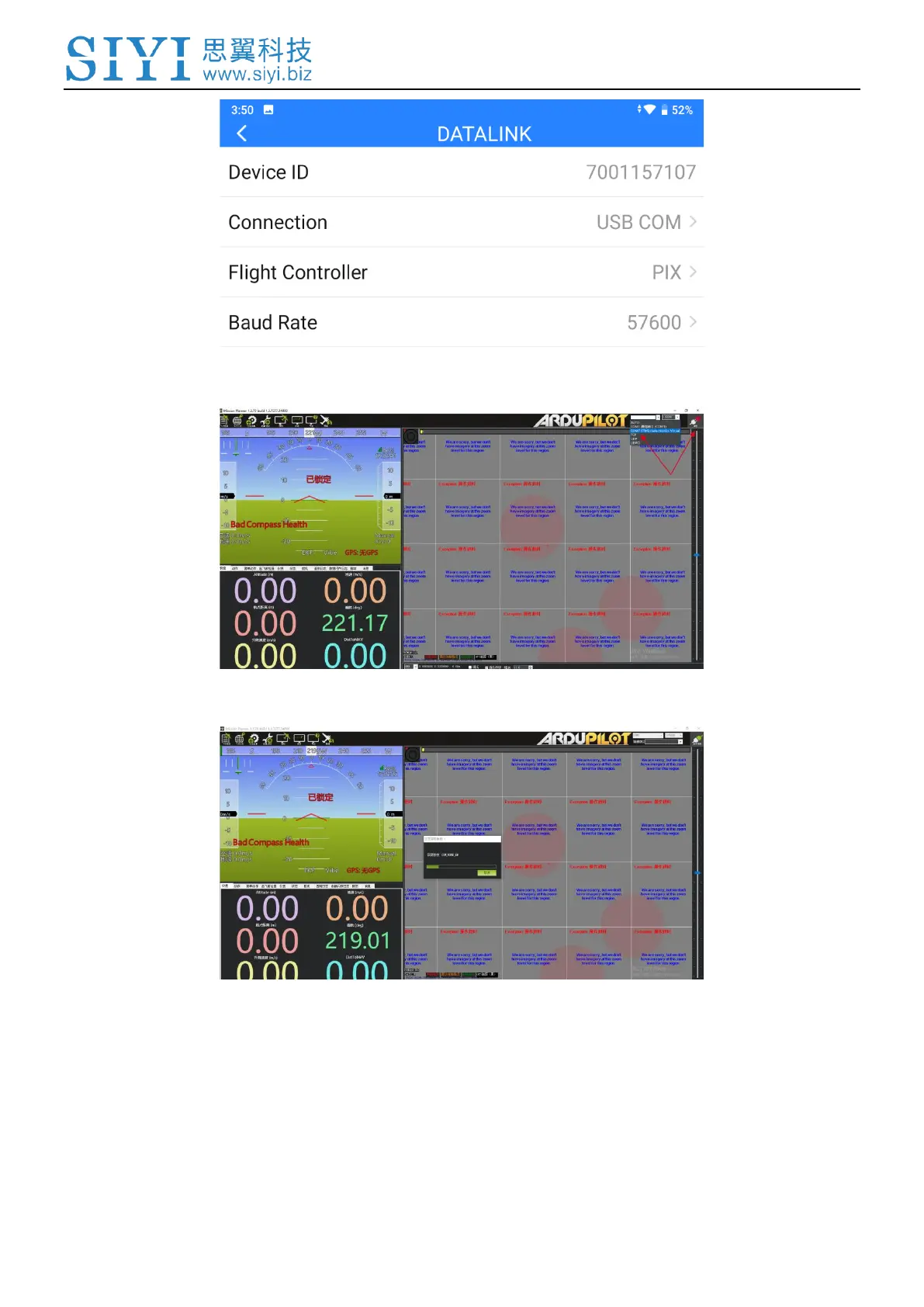

2. Run Mission Planner, select the relevant port and match the baud rate.

3. Please wait until the datalink connection is established.
