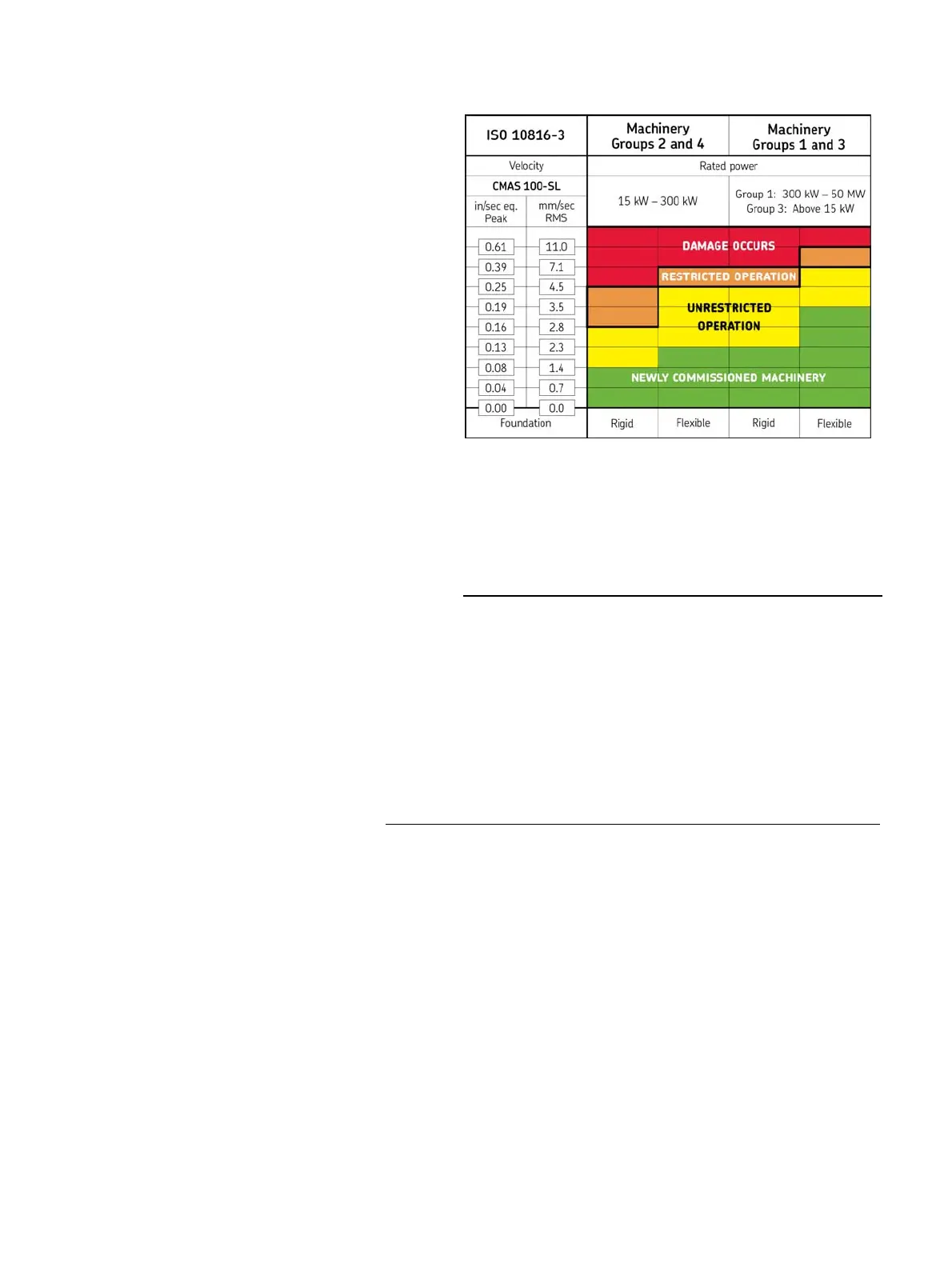

Note that vibration readings in both the green and
yellow areas are below alarm levels. Orange indicates
measurements in Aler
t alarm. Red indicates
measurements in Danger alarm.
Enveloped Accelerati
on Seve
rity C
hart
Bearing vibration readings are automatic
ally
compared to limits establishe
d by SKF based upon
years of statistical analysis of
existing databases. The
following severity chart is provided for your reference.
33
35
Table of Contents
Table of Contents
11
Safety Instructions
13
SKF Machine Condition Advisor
13
Overview
14
Controls and Functions
15
Product View
15
Display
16
How to Set up Your Machine Condition Advisor
17
Battery and Battery Charger Safety Instructions
18
Battery Maintenance
19
How to Charge the Battery
20
Battery Charge Status
21
How to Make Selections in Setup Mode
22
How to Choose the Correct “Alarm Velocity Group”
24
Rigid or Flexible Foundation?
25
How to Choose the Correct “Enveloped Acceleration Classification”
26
How to Use the Machine Condition Advisor
27
Place the Sensor Tip against the Machine
28
Turn the Instrument on
28
Press the Select Button to Hold the Measurement
29
How to Use the Optional External Sensor
30
View Measurement Alarm Status
30
To Connect the External Sensor
31
To Perform Vibration Measurements Using the External Sensor
32
ISO 10816-3 Severity Chart
33
Enveloped Acceleration Severity Chart
34
Sensor Placement Techniques
35
Vibration Analysis Guidelines
37
Infrared Temperature Measurement Guidelines
38
Ambient Temperatures (the Surrounding Temperature)
39
Emissivity
39
Specifications
39
