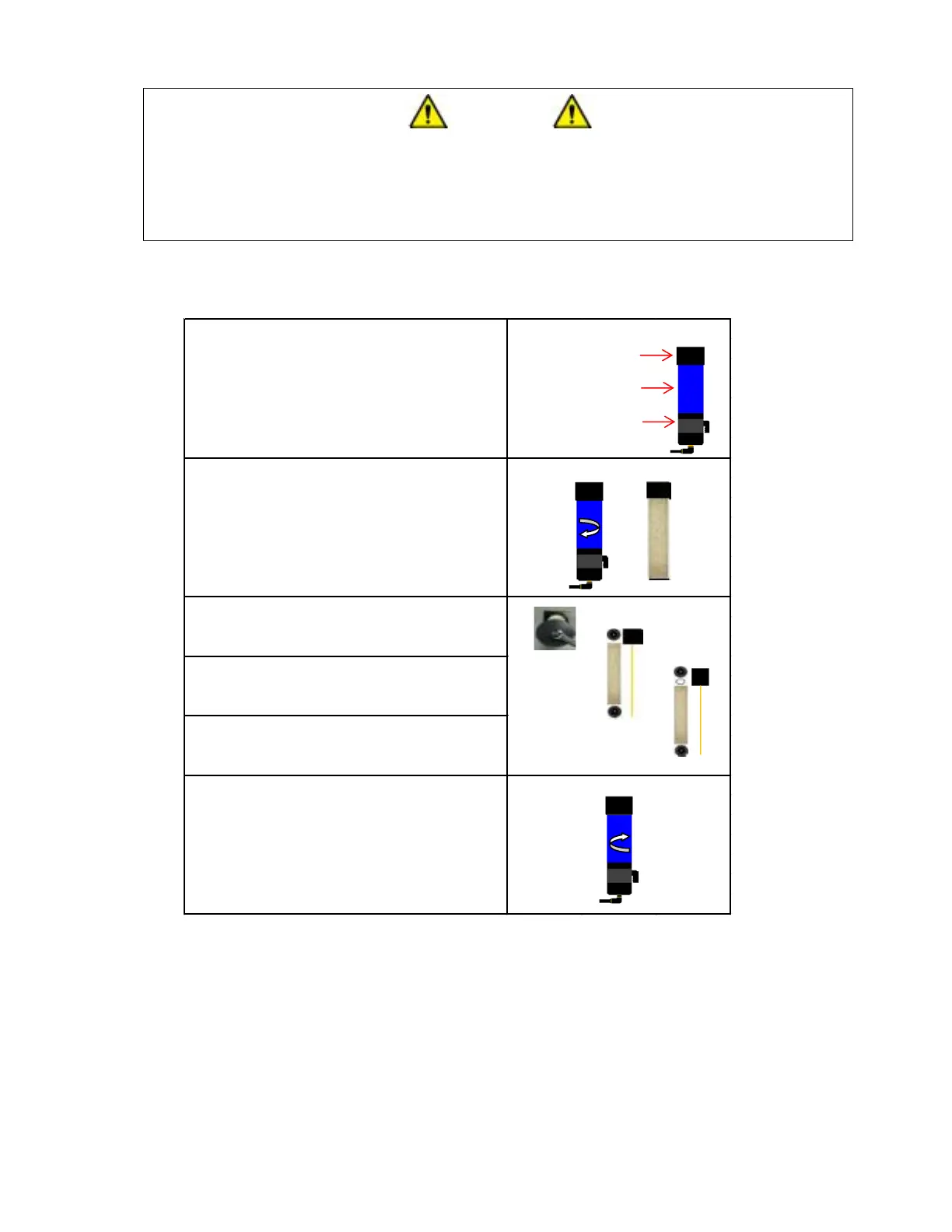

Coalescing Element Replacement (6 month intervals)
WARNING
Read, understand and follow safety precautions and instructions in this manual and
in the labels attached to the dryer system. Failure to do so could result in serious
injury, death and property damage. It is the responsibility of installer and/or end
user to collect condensate and oil into appropriate container and dispose according to
Reinstall outer tube by rotating onto filter head (7),
Reinstall pilot signal line (8) and drain tube (9) from
filter assembly.
Remove outer tube (3) from filter head by holding
filter head and rotating tube counter clockwise.
Using a 5/16” wrench (4), remove baffle nut from
threaded rod below oil coalescing filter.
Remove pilot signal line (1) and drain tube (2) from
filter assembly.
Remove bottom baffle, filter, top baffle nut, and O-
ring (5).
Replace new O-ring, top baffle plate, element,
bottom baffle plate and nut (6).
34
