SKF SFD - Oil Coalescer; Installation and How It Works

OIL COALESCER
Installation and How It Works
WARNING
Read, understand and follow safety precautions and instructions in this manual and
in the labels attached to the dryer system. Failure to do so could result in serious
injury, death and property damage. It is the responsibility of installer and/or end
user to collect condensate and oil into appropriate container and dispose according to
local ordinances

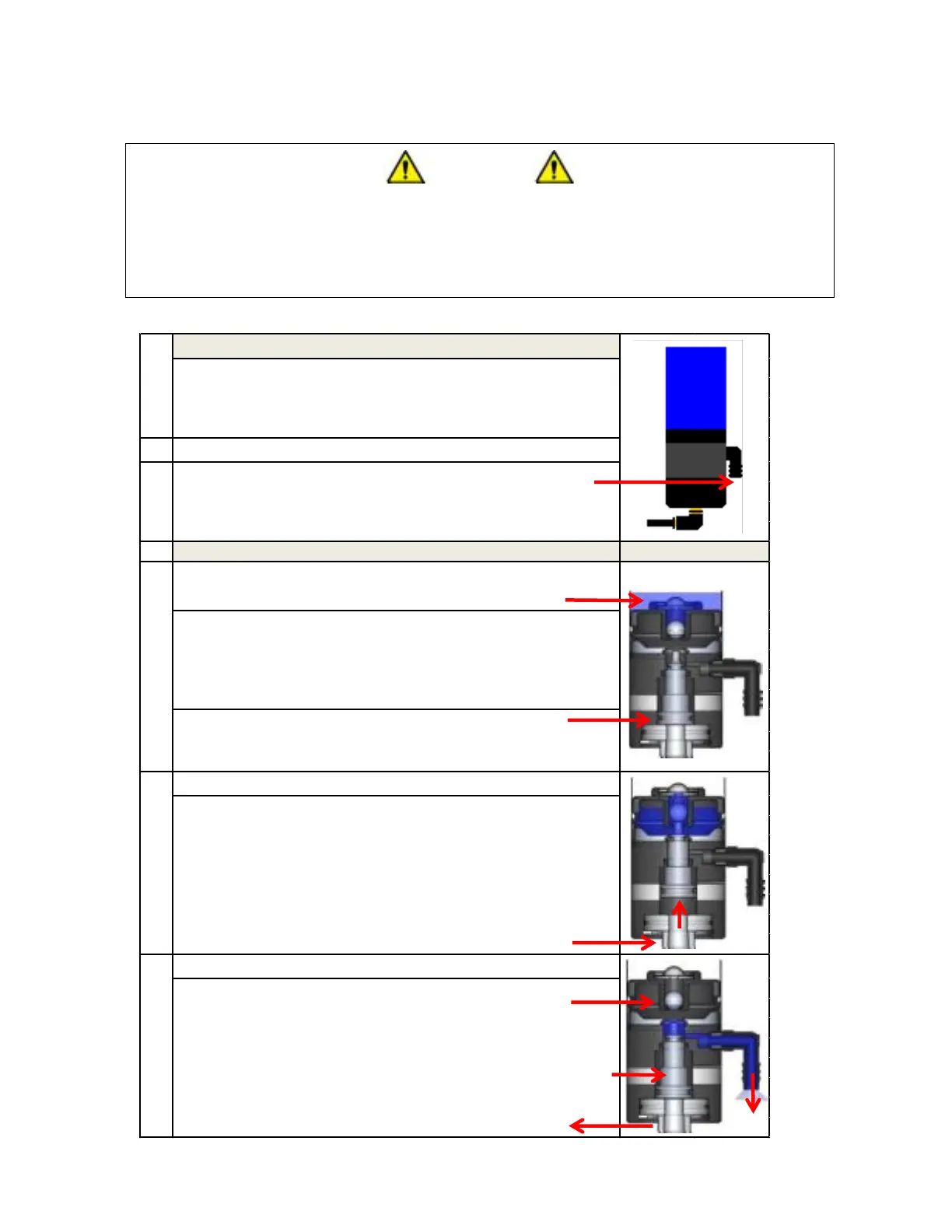

How to Route Air Lines for Automatic Filter Drain
How It Works
Condensation (1) rests in the bottom of the filter housing,
waiting for the drain to be actuated.
Pilot signal from air dryer received
Valve at Rest
3
When pilot signal is relieved (6), piston returns to relaxed
position (7), ball check closes (8), preventing zero pressure
loss in system; drain port (9) opens and stored condensate is
ejected from the drain port.
1
Filter drain at rest (2)
2
Pilot signal (3) causes piston to shift (4), closing off drain port
(9). As piston continues to move it opens up the stainless ball
check (8) allowing condensate to be forced into the internal
reservoir creating a discharge pressure
Route a pilot line from the pilot signal port, located on the
bottom of the drain, to "T" fitting on the SFD Dryer.
Run a drain line from the drain outlet (located on the side of the
drain) to an appropriate discharge and collection location
1
2
4
1
2
3
9
6
7
8
9
8
