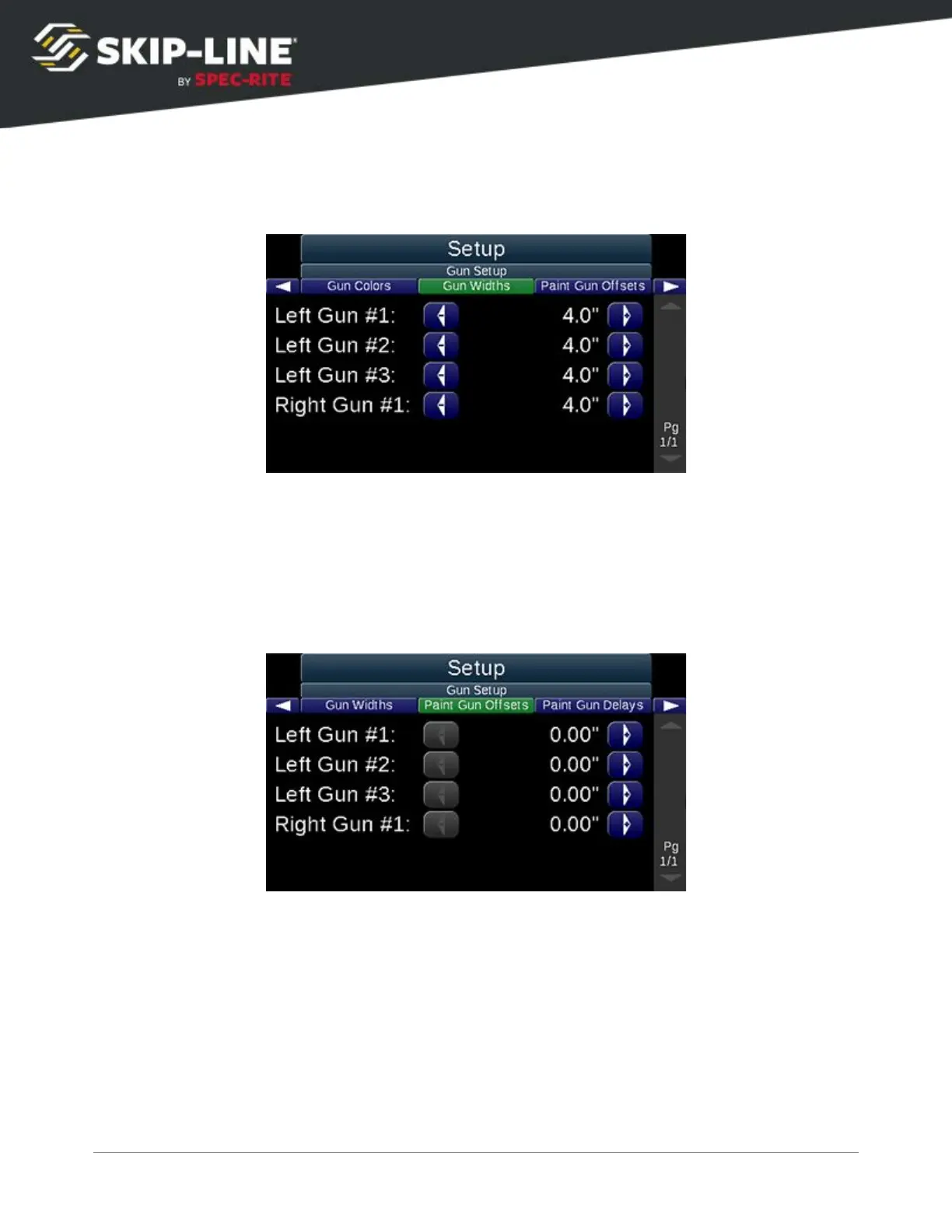

Gun Widths
Gun Widths
sets the gun widths to match the actual application width of
the material on the road.
Note that setting proper gun widths is important for accuracy in mil
thickness calculations, data logging, pump control features, and report
printouts.
Gun Offsets
Set Gun Offsets
for all items in the gun line, including Paint
, Beads
, Tandem
Beads
, or Blow Air
. Only available guns will appear in the Gun Setup
menu.
➢
Gun Offsets are the distance from the front-most gun rank to the current gun. The
front-most gun rank should be set to 0.0'.
➢
Gun Offsets account for distance delays when marking the pattern. When the pattern
starts, all guns will attempt to turn on at the same longitudinal position as the front
gun on the road as they move past that position.
➢
IMPORTANT
: Do not correct time factors with distance. Only distance factors should
be corrected with distance, otherwise, the skip timer will not be as accurate in placing
SC-12 Road Marking Control System - Installation and Operation Manual
33
