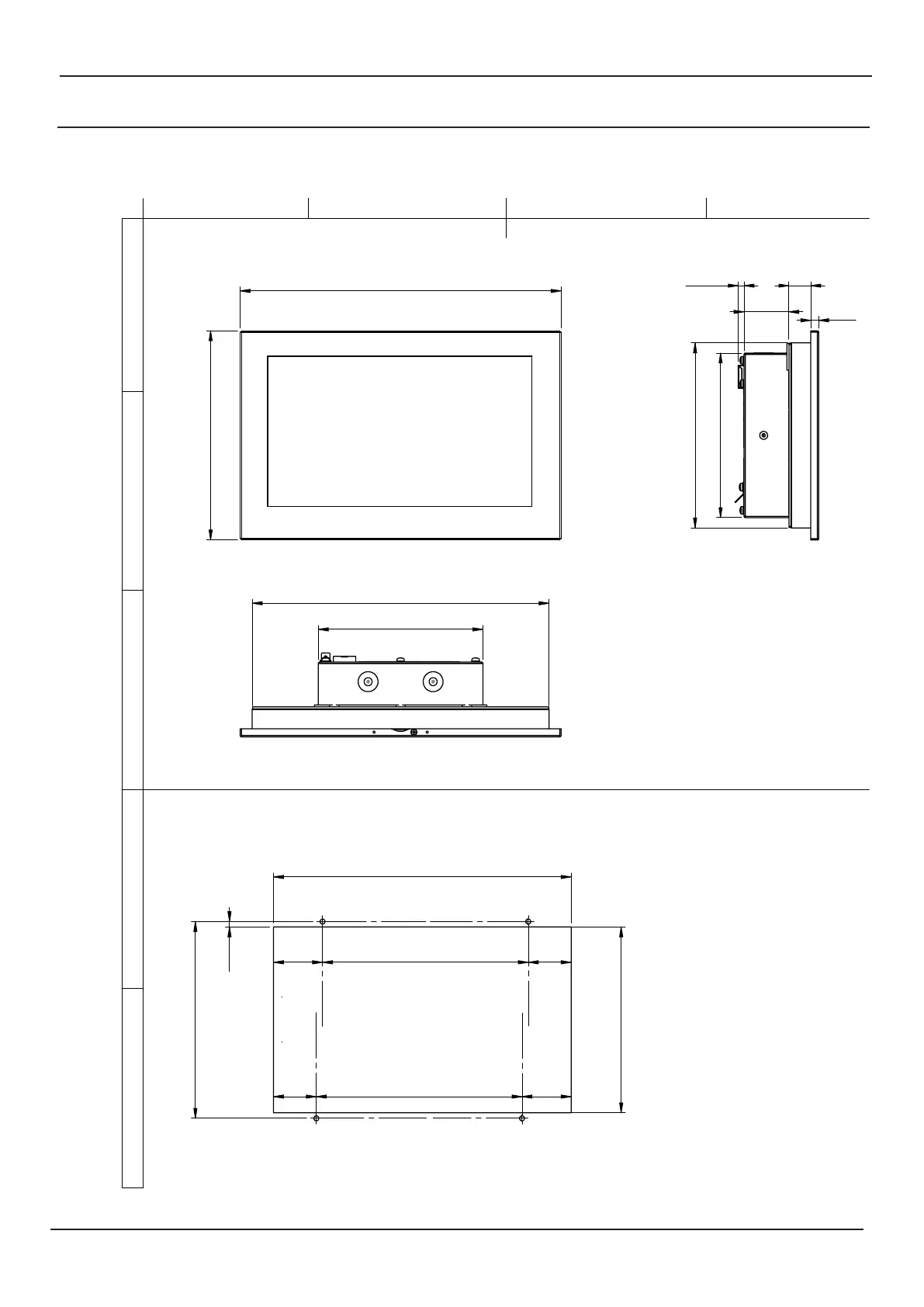

Skipper ESN200 - Appendix 1: Installation Drawings; Flushmount Installation of Display

Page 55 of 61
SKIPPER Electronics AS
Edition: 2021.02.17
ESN200 Operation and Installation Manual
Chapter: Appendix 1: Installation drawings

242
158
125 140
17
34,5
4,3
6,5
125
224
224,3
32,3
37
148,2
140
4,1
155
155
32,3
37
CUT-OUT
C
2 3 1 4
B
A
D
E
F
Approved by - date
ST 2017.11.16
Designed by - date
1 of 1
Outline drawing
Scale
CU-M001-SA
Revision
1520
Sheet
Edition date
PC 2017.11.16
Name
Drwg. no.
CN
All sharp edges to be
broke or deburred
2017.11.16
Material
N/A
Eur. projection Gen. tolerance
1 : 3 ISO2768m
Electronics AS
Appendix 1: Installation drawings
