Page 58 of 61
SKIPPER Electronics AS
Edition: 2021.02.17
ESN200 Operation and Installation Manual
Chapter: Appendix 1: Installation drawings

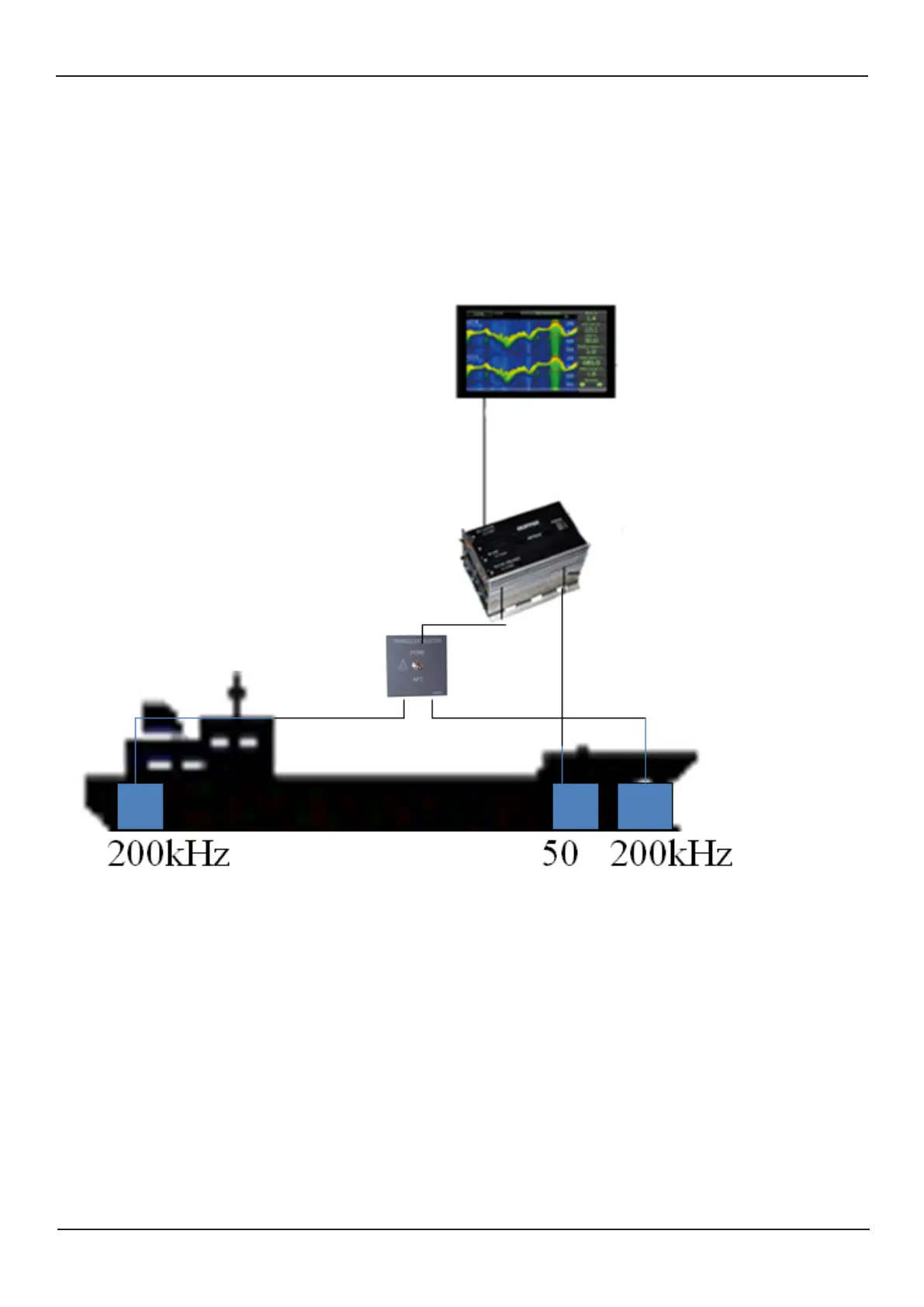

ENS518-SA Transducer selector
e ESN200 has two transducer terminals selectable from soware. A transducer selector switch can be
installed if more than two transducers are required.
e transducer selector switch will only be able to select between two transducers of same type and frequency
ere are no selector feedback to ESN200 for indication of for/a transducer is selected.
