Operation

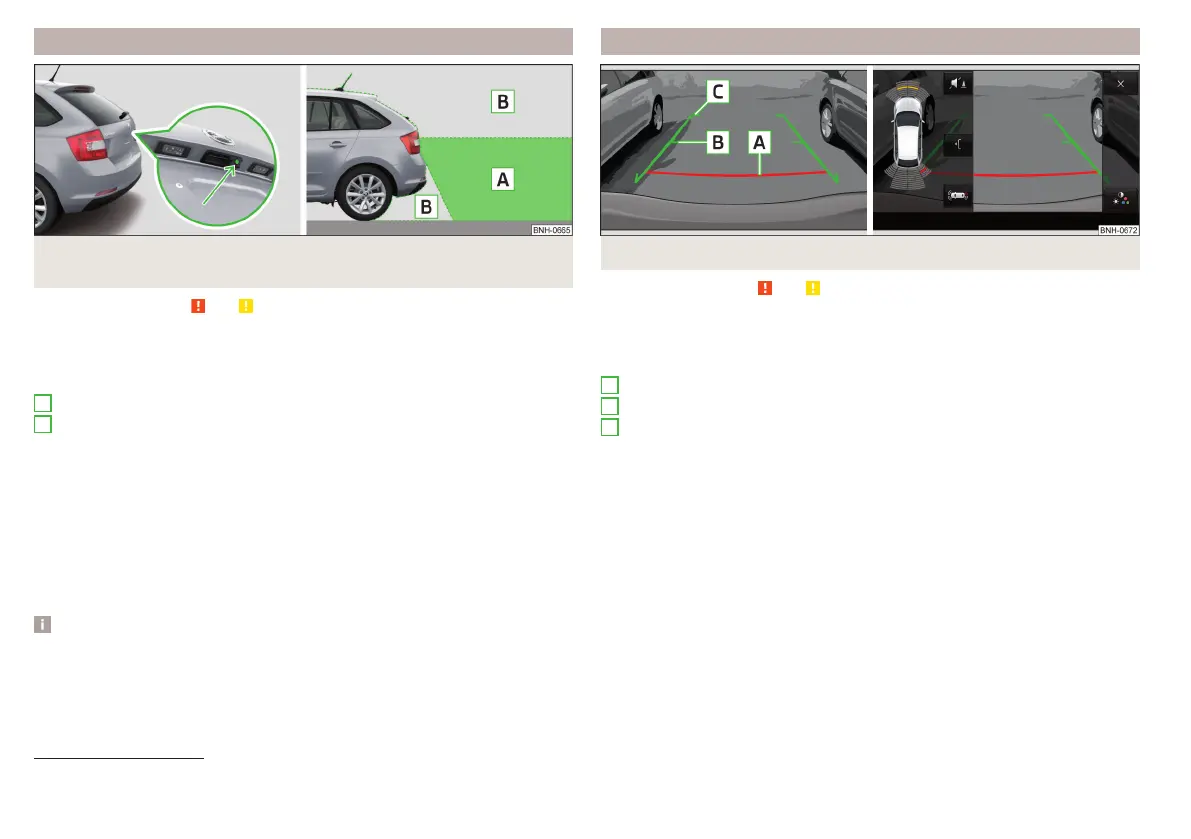

Fig. 121 Installation location of the camera / scanned area behind the ve-
hicle
Read and observe
and on page 101 first.
The camera for capturing the area behind the vehicle is in the grip of the boot
lid » Fig. 121.
Area behind the vehicle » Fig. 121
Detection range of the camera
Area outside the detection range of the camera
The system can assist the driver when parking and manoeuvring under the fol-
lowing basic conditions.
The ignition is switched on.
The reverse gear is engaged.
1)
The luggage compartment lid is completely closed.
The vehicle is travelling at less than 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.
Note
■
The display can be interrupted by pressing the symbol button » Fig. 119 on
page 100.
■
After disengaging the reverse gear, automatic display of the parking aid is
carried out (variant 2, 3) » page 99.
A
B
Guidelines and function keys
Fig. 122 Infotainment display: orientation lines / function surfaces
Read and observe
and on page 101 first.
Orientation lines are shown along with the monitored area behind the vehicle
in the display.
Distance of the orientation lines behind the vehicle » Fig. 122
The distance is about 40 cm (safety distance limit).
The distance is about 100 cm.
The distance is about 200 cm.
The distance may vary slightly depending on the load of the vehicle and the
road inclination.
The distance between the side lines corresponds approximately to the vehicle
width including mirrors.
Function surfaces » Fig. 122
Depending on the Infotainment type: switches off the display of the
area behind the vehicle
Display settings - brightness, contrast, colour
Switching on/off audible parking signals
Switching on/off the reduced park assistance display
Change to park assistance display
A
B
C
1)
The area behind the vehicle can be displayed for a few seconds more after disengaging the reverse gear.
