Air flow in the footwell
Air flow to the windows and the footwell
Switch recirculation on/off » page 84
Switch the cooling system on/off
Information on the cooling system
After pressing the button
» Fig. 101, the warning light on the button lights
up, even if not all the conditions for the cooling system have been met. The
cooling system starts to work as soon as the following conditions have been
met » page 82.
Note
To ensure adequate thermal comfort, during operation of the manual air condi-
tioning there could be an increase in the engine idle speed in some circum-
stances.
Climatronic (automatic air conditioning)

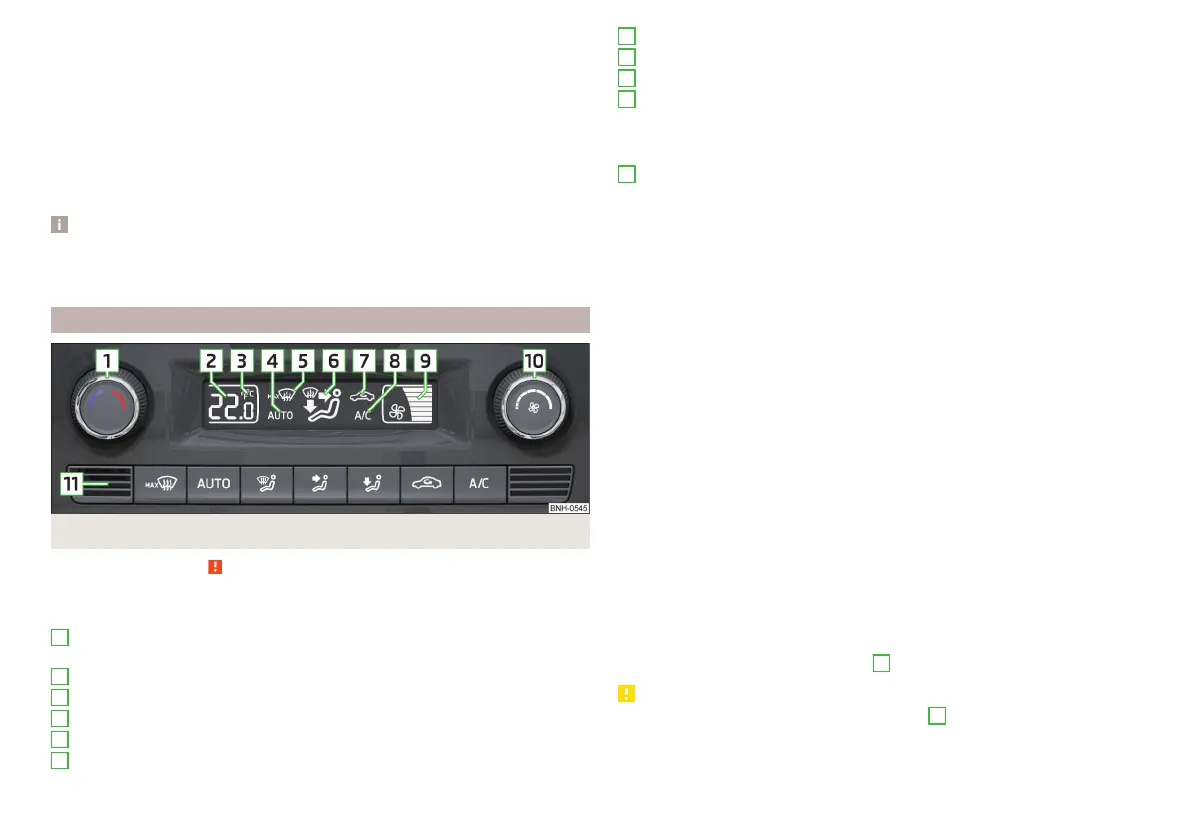

Fig. 102 Controls the Climatronic
Read and observe on page 82 first.
Individual functions can be set or switched on by turning the dial or pressing
the corresponding button » Fig. 102.
Setting temperature
▶
Reduce the temperature /
increase the temperature
Selected temperature
Degrees Celsius or Fahrenheit
Automatic operation of the air conditioning system is switched on
Intensive air flow to the windscreen switched on
Direction of air flow
1
2
3
4
5
6
Recirculated air mode activated
Cooling system activated
Set blower speed
Set the blower speed (the set blower speed is indicated by the corre-
sponding number of segments in the display)
▶
Turn to the left: Decrease speed / switch off Climatronic
▶
Turn to the right: Increase speed
Interior temperature sensor
Switching on/off the intensive windscreen air flow - when this function
is switched on, the warning light illuminates in the button
Switching on automatic mode » page 84
Switching the airflow to the windows on and off
Switching the airflow to the upper body on and off
Switching the airflow to the footwell on and off
Switch recirculation on/off » page 84
Switch the cooling system on/off
When this function is switched on, the corresponding icon appears in the dis-
play.
After the cooling system is switched off, only the ventilation function remains
active, whereby the lowest temperature that can be reached is the outside
temperature.
Setting temperature
In the range between 16 °C to 29 °C, an automatic temperature control takes
place.
At a temperature setting below 16 ° C,
lights up in the temperature display,
the Climatronic functions with maximum cooling performance.
At a temperature setting above 29 °C,
lights up in the temperature display,
the Climatronic functions with maximum heating output.
Switching between Celsius and Fahrenheit
Press the
and
buttons simultaneously and hold for about 2 s, the dis-
play shows the desired unit (position
3
» Fig. 102).
CAUTION
Do not cover the interior temperature sensor
11
» Fig. 102 - the function of the
Climatronic could be affected.
7
8
9
10
11
83
Heating and ventilation
