sks HTV4600 - Signalling and Terminals; Terminal Designation

SKS-Kinkel Elektronik GmbH
Indoor station HTV4600, Receiver, 6-wire
EN
Support Hotline: +49 (0) 2661 98088-112
Support E-Mail: support@sks-kinkel.de
Version No. 3.0
Document No. 97003704
30

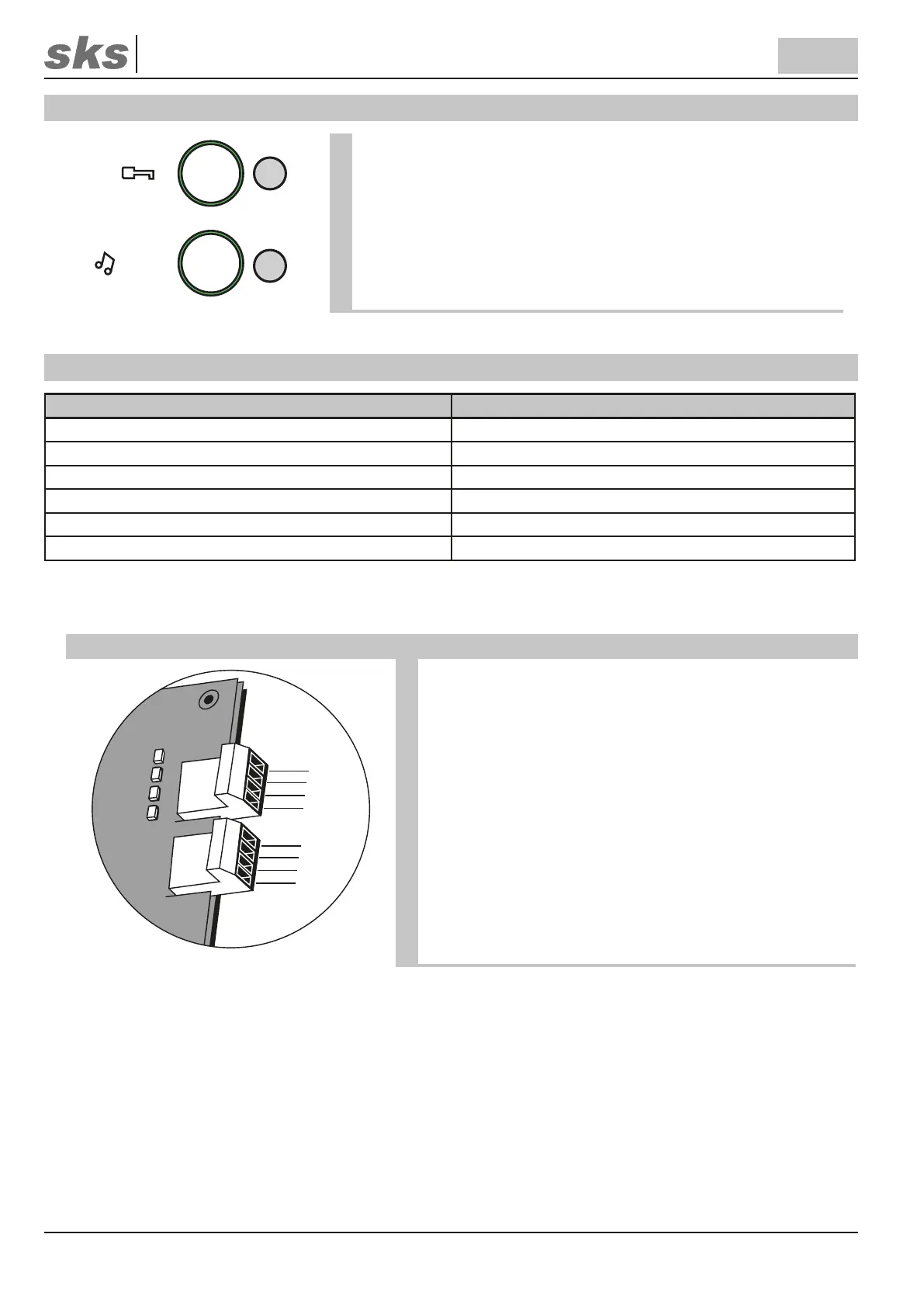

4 Signalling
VID
1
2
LED 1: Pushing key recognized
LED 2: Optical signalling of calls and
ringtone switched o󰀨/automatic door opener active
5 Terminal designation
Terminal Designation
a+/b- BUS terminals
E+/E- Floor bell
V+/V- Video signal
+22/GND Voltage supply
P/F (special version) Floating relay contact, switchable via the light key
L+/L- RMA
5.1 Connection
E+
E-
b-
a+
V+
V-
GND
+22
The HTV4600 indoor station is connected via terminals a+/b-
to the audio part of the 6-wire video BUS.
The video signal for the 6-wire video BUS is on terminals V+/V-
.
Via terminals +22/GND the HTV4600 indoor station is supplied
with 20-28 VDC.
Optionally a oor bell (normally open relay) may be connected
to terminals E+/E-.
