Part III:Control Interfaces
3.1 Control Panel

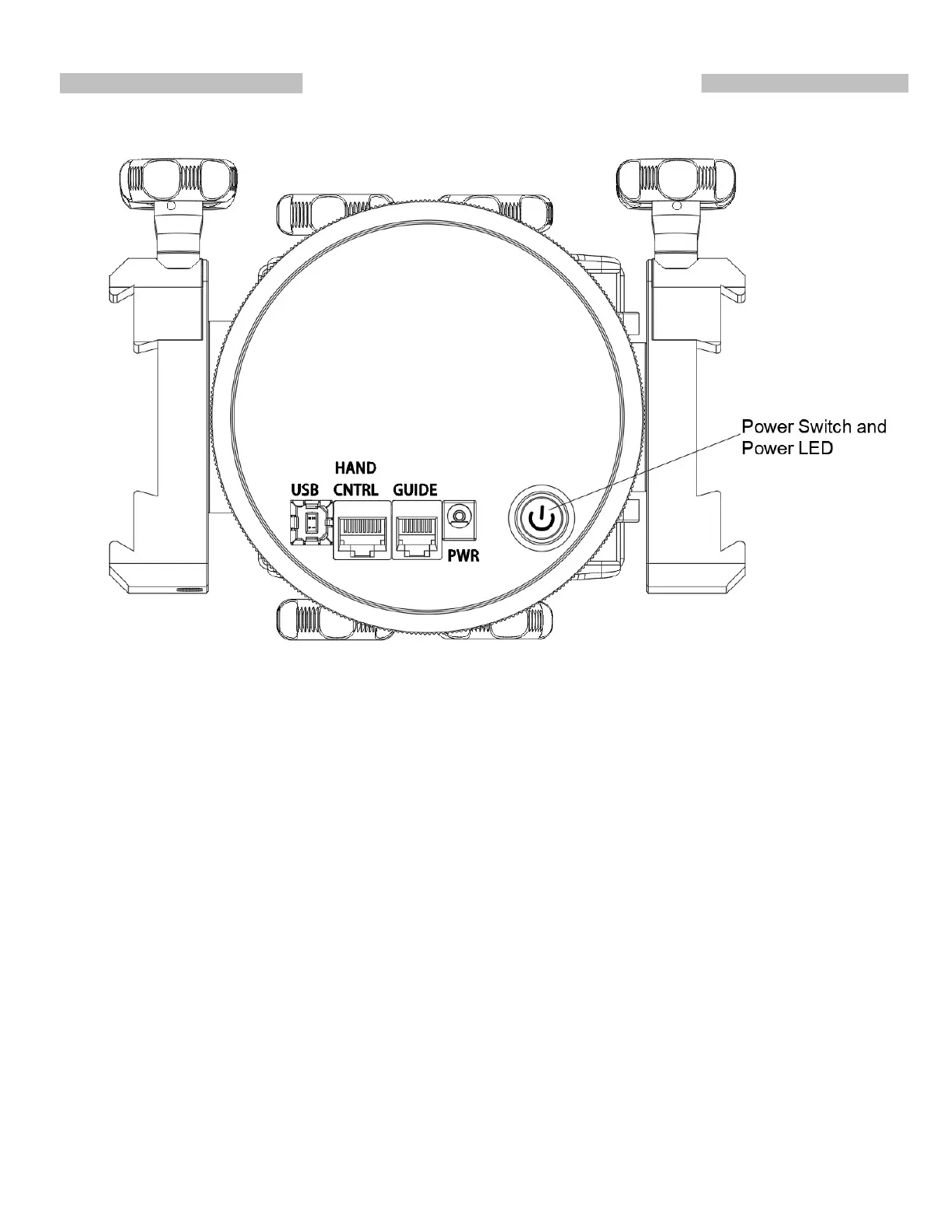

)LJ14
10
PWR
: Power supply Input.
USB: Communication port for connecting to a computer or and Android device.
HAND CNTRL: Communication port for connecting to a SynScan controller or other devices.
GUIDE: For connecting to an Autoguider with a ST-4 interface.
Power Switch: Turn power On/Off, with LED:
1. Single flashing with short On time: Wirless module is ready for connection.
2. Double flashing: Wirless connection established.
3. Steady On: Wirless module is turned off due to long idle.
4. Single slow flashing with equal on/off time: Power voltage is low.
5. Single quick flashing: Power voltage is extermely low, stop using the mount immediately.
6. Triple flashing: Firmware update not finished.
